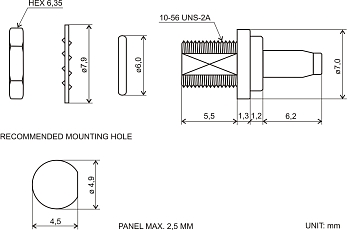

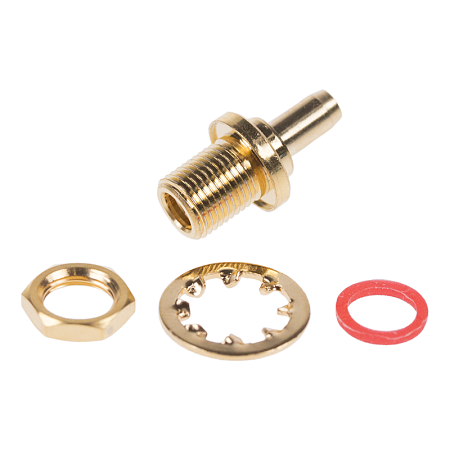

MMCX (f) Bulkhead with O-ring for cable RG178
These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.
The MMCX (m) coaxial connector is designed for RG178 cable with a diameter of 1.80 mm. The connector includes an O-ring that enhances water and dust sealing properties.
Material and finish:
• Gasked: silicone rubber / red
• Insulation 1: Teflon / Teflon
• Insulation 2: teflon / teflon
• Washer: brass / gold
• PIN: beryllium copper / gold
• Nut: brass / gold
• Body 1: brass / gold
• Body 2: brass / gold
• Body 3: brass / gold
• Type: Female (f)
• Impedance: 50 Ω
• Maximum frequency: 0-6 GHz
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C
Technical parameters can be found in the attached datasheet or contact our sales department.
