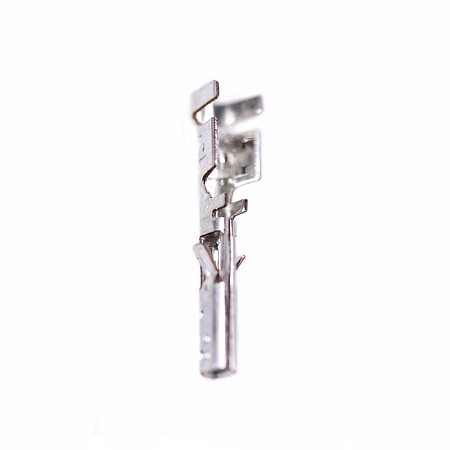

Molex Micro-Fit 3.0 Crimp Terminal, Female, 20-24 AWG, Reel

Product code: AO-MLX-43030-0001 /Manufacturer: Molex

Sale
ao-mlx-43030-0001-konektor-sectron-01 ao-mlx-43030-0001-konektor-sectron-03 ao-mlx-43030-0001-konektor-sectron-02

0.03 EUR Without VAT

In stock < 10 ks When do I get the item?

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Molex Micro-Fit 3.0™ Crimp Terminal

Micro-Fit 3.0 ™ crimp connector with gold-plated phosphorus (Au) contact, bronze contact. Connecting and disconnecting guarantee up to 30 cycles.

Features:

• Product Family: Crimp Terminals
• Series: 43030
• Product Name: Micro-Fit 3.0™
• Gender: Female
• Material – Metal: Phosphor Bronze
• Material – Plating: Mating Tin
• Net Weight: 0.061 g
• Wire Insulation Diameter: 1.85mm max.
• Wire Size AWG: 20, 22, 24
• Wire Size mm²: max. 0.518 mm2
• Wire Size mm²: min. 0.205 mm2
• Current - Maximum per Contact 5.0A
• Temperature range: -40 °C to +105 °C


Technical parameters can be found in the attached datasheet.
