Product code: EL-MB-HOME2-R-C
Producer: MyBox

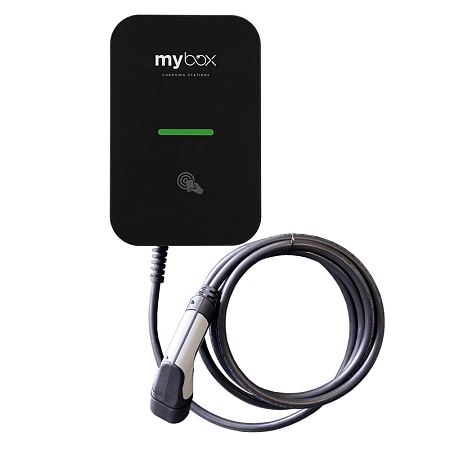

MyBox HOME 22kW 2.gen - RFID, cable Type 2, 5m

Product code: EL-MB-HOME2-R-C
Producer: MyBox

MyBox HOME 22kW 2.gen - RFID, cable Type 2, 5m

The AC MyBox Home (2nd generation) charging station is distinguished by its reliability, modern design and easy operation. It is intended for both households and small companies. The stand for the wallbox MyBox HOME charging station is not included in the package.

1 097.62incl. VAT (21%) / pc

excl. VAT 907.12 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

AC charging station MyBox HOME (2nd generation), RFID,  straight cable Type 2 (Mennekes)

Key features:

• Easy to mount on a wall or post
• A Czech product made from European components
• Dynamic power management module support
• Smart LED indicators inform about the status of the charging connector. If the green light is on, you can charge.
• Communication via Wi-Fi network
Module for dynamic power control – your main circuit breaker will not trip even if you switch on another powerful appliance.
• Authorization system – limit the access to the charging station. You can authorize users using a RFID chip reader, e.g.
• Connection with PV plants - use surplus energy from your home photovoltaic power plant and reduce electricity expenses.
• SmartHome connection – connect the wallbox to your SmartHome control system. Control all devices from one place.
• Preparation for the connection to the control software – you‘ll get remote access to the wallbox. With it, you will also get the possibility of managing users and the station itself.

The AC MyBox Home (2nd generation) charging station is distinguished by its reliability, modern design and easy operation. It is intended for both households and small companies. It has a power of 22 kW, which allows you to use the full potential of any electric car. This MyBox Home charging station (EL-MB-HOME2-C) is equipped with a 5 m long Type 2 (Mennekes) straight cable. In addition, this charging station has an authorization system that enables flexible user authorization using an RFID chip reader.

It is also possible to additionally buy a dynamic power control module, which prevents the main circuit breaker from tripping even if the heat pump or other powerful appliance is switched on (the dynamic control module is a must within the NGS subsidy).

 The 2nd generation model compared to the 1st generation model is equipped with a new control unit and a new mobile application and enables wireless control of the charging station power.

The MyBox Home meets the requirements for obtaining the New Green Savings subsidy in the Czech Republic and it enables the connection with a photovoltaic power plant. This product of the Czech manufacturer Elexim consists only of available quality components from leading European manufacturers.

The charging station is made of resistant plastic and tempered glass (with the possibility of printing) and it is resistant to adverse weather and mechanical damage. Thanks to the operating temperature from -25 to 45 °C, you can reliably charge the battery of your electric car in both cold and hot weather. You can safely install the charging station indoors and outdoors as well.

Specifications:

• Max. input current: 3 × 32 A
• Max. output power: 22 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (3P+N+PE)
• Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
• Operating temperature: -25 °C to +45 °C
• Operating humidity: 5 to 95% non-condensing
• Dimensions: 200 x 305 x 105 mm
• Weight: 4,5 kg (without cable)

All the MyBox charging stations have a charging power of up to 22 kW. The MyBox Home model provides home charging for electric cars and plug-in hybrids. Currently, the majority of all EVs use 11 kW when charging. Therefore, this station is also ready for the future, when electric cars will use the high power of AC charging stations.

The charging stations are designed with sustainability in mind. The components of European production guarantee long-term functionality and problem-free service.

Technical parameters can be found in the datasheet attached.

Parameters

Operating temperature -25 ~ +50  °C Weight 4  kg
AC/DC AC AC output connector Type 2
Feed type AC 3 + N + PE 400V 50 Hz , TN-S Control Lokální
Output current 3 x 32  A Output voltage 400  V DC
Communication WiFi b/g/n , Modbus / RS485 , Serial TTL Degree of protection IP54
Operating humidity Nekondenzující 5 až 95  % Standards IEC 62196 , IEC 62196-2 , IEC 61851
Provedení kabelu Rovný RFID čtečka RFID čtečka

1 097.62incl. VAT (21%) / pc

excl. VAT 907.12 € / pc
