AC charging station Wallbox MyBox HOME (2nd generation), RFID, straight Type 2 cable, white glass
Key features:

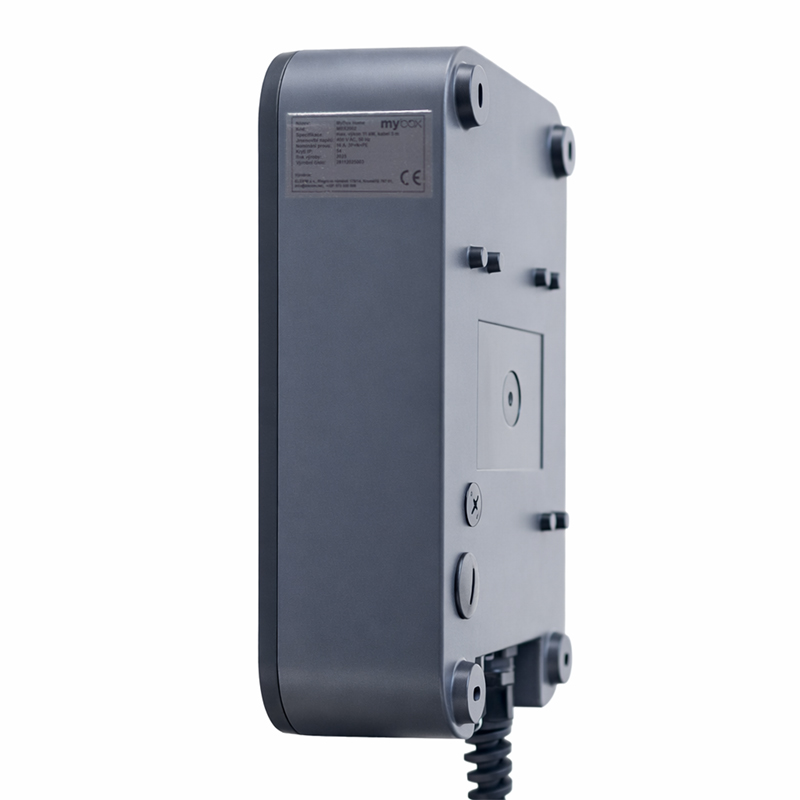

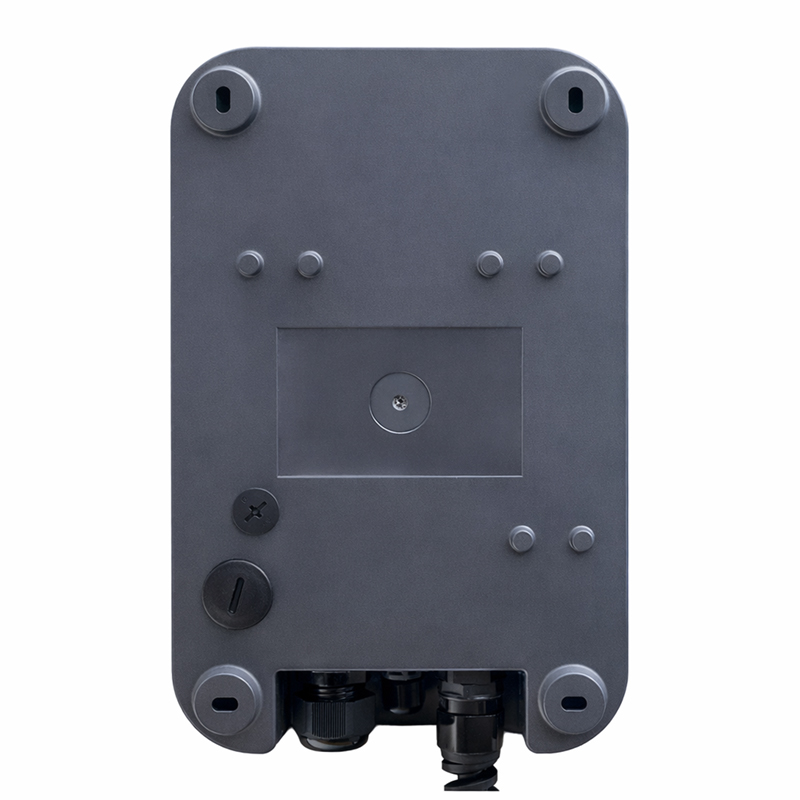

- Easy mounting on a wall or post.
- A Czech product made from European components.
- White version.
- Easy integration with Smart Home control systems. Control all your devices from one place.

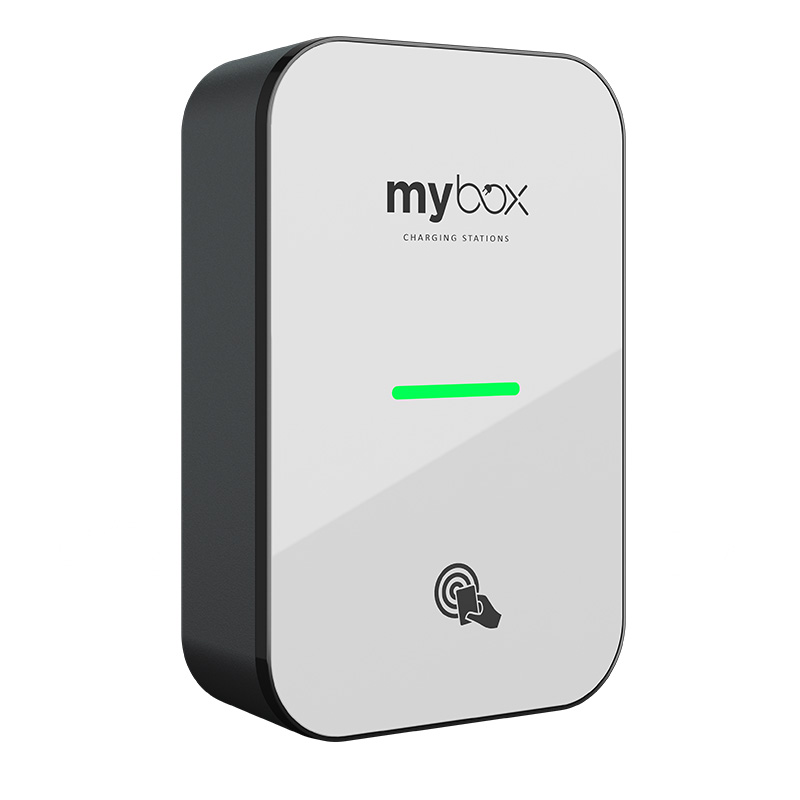

- Smart LED indicators show the status of the charging connector. A green light means you can charge.
- Communication via Wi-Fi.
- RFID reader + 2 tags.
- Connection to a photovoltaic system: use surplus energy from your home solar installation and reduce electricity costs.
- Dynamic load management module: prevents the main circuit breaker from tripping when another high-power appliance is switched on (optional accessory at extra cost).
- Authorisation system: restrict access to the charging station. Users can be authorised with an RFID chip reader.
- Ready for connection to control software: remote management of users and the station itself. Operation via the MyBox mobile app.
A subsidy from the Czech Nová zelená úsporám programme can be obtained towards a MyBox charging station. Find more information in the Nová zelená úsporám (NZÚ).
The 2nd generation MyBox HOME AC charging station from Czech manufacturer Elexim offers advanced home and business charging. It combines a modern tempered-glass design, quality European components and advanced smart functions. The elegant white model with up to 22 kW is an ideal choice for family homes and smaller businesses.

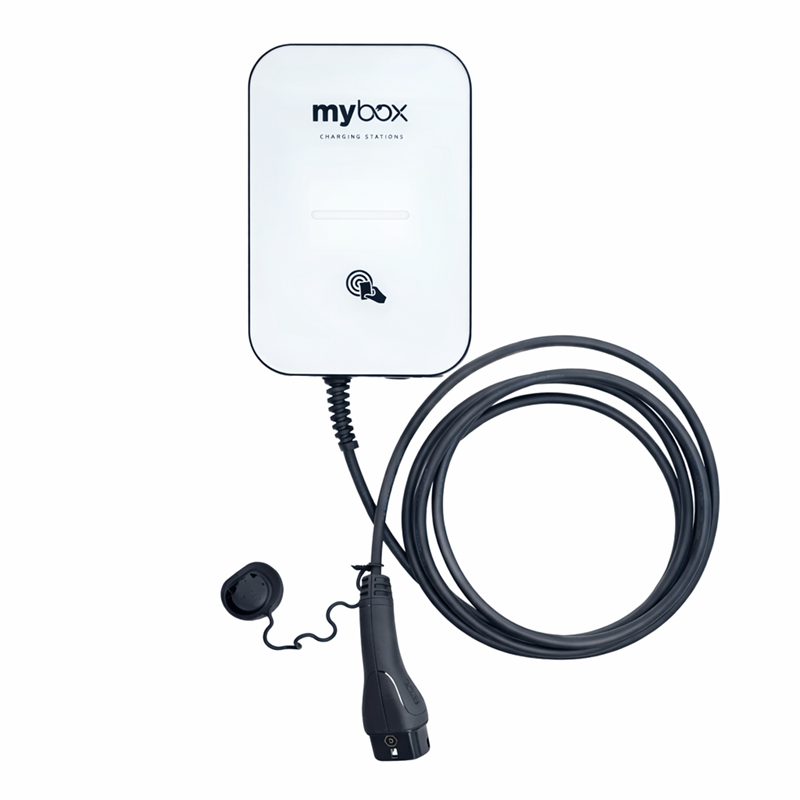

The MyBox HOME AC charging station (2nd generation) stands out for its reliability and easy operation. This MyBox HOME charging station (EL-MB-HOME2W-R-C) is equipped with a straight Type 2 cable, 5 m long. It also has an RFID reader for flexible user authorisation. 2 RFID tags are also included.
Compared with the 1st generation, the 2nd generation 22 kW wallbox has a new control unit, an improved mobile app and supports a wireless WiFi connection to the dynamic load management module.
A dynamic load management sensor, which prevents the main circuit breaker from tripping when a heat pump or another high-power appliance is switched on. This device is mandatory within the Nová zelená úsporám (NZÚ) subsidy programme. The module is not included with the EL-MB-HOME2W-R-C charging station and can be purchased from our e-shop.
The SensorBox and MyBox HOME station can be connected wirelessly via Wi-Fi or using the RS485 interface.

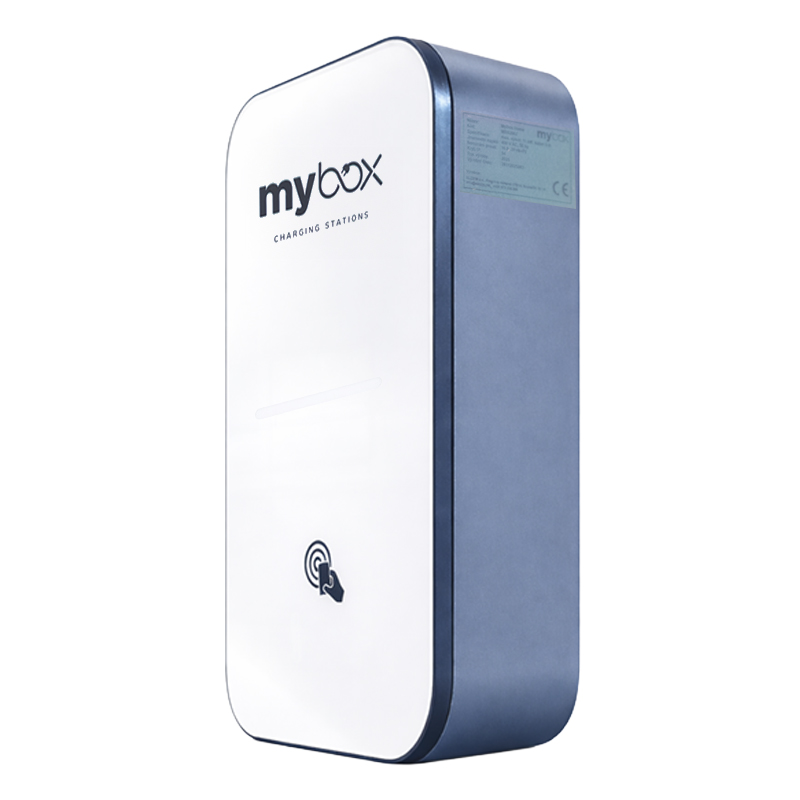

The MyBox Home electric vehicle charging station is made from durable plastic and tempered glass and resists adverse weather and mechanical damage. The front panel can be customised.
With an operating temperature range of -30 °C to 50 °C, you can reliably charge your electric vehicle battery in both cold and hot weather. The station can be safely installed indoors or outdoors.
Installation services
SECTRON holds a certified professional qualification for installing electric vehicle charging stations.
Specifications:
- Max. input current: 3 × 32 A
- Max. output power: 22 kW
- Max. output power per connector: 22 kW
- Max. output current per connector: 3 × 32 A
- AC output voltage: 400 V (3P+N+PE)
- Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5 to 95% non-condensing
- Dimensions: 200 x 305 x 105 mm
- Station weight without cable: 4,5 kg
All MyBox charging stations offer up to 22 kW charging power. MyBox Home provides home charging for electric vehicles and plug-in hybrids. Most EVs currently charge at 11 kW. The station is therefore ready for the future, when electric vehicles use the high output of AC charging stations.
MyBox charging stations are designed with sustainability in mind. European-made components ensure long-term functionality and trouble-free servicing.

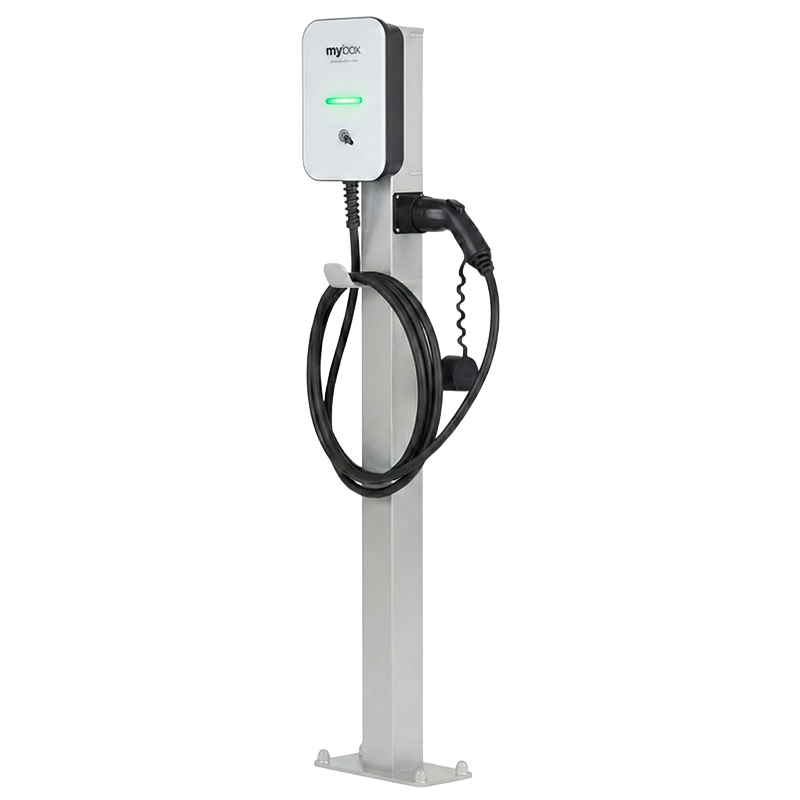

The stand for the MyBox HOME wallbox is not included.
Technical parameters can be found in the attached datasheet.
