AC Charging Station Wallbox MyBox Plus, white, straight Type 2 cable, RFID, RCD, 11 kW
Key Features:
- Easy wall and pole mounting.
- Czech product made of European components.
- Option to connect to a PV system (photovoltaics).
- MyBox mobile app – get essential information about the wallbox status and charging progress in an instant.
- Smart LED indicators display the status of the charging connector. If they light up green, you are ready to charge.
- Communication via Ethernet or Wi-Fi network.
- 6 mA DC leakage detection.
- MID-certified electricity meter.
- Combined circuit breaker and RCD (RCBO).
- Authorisation system.
- OCPP 1.6 protocol support.
- Support for a dynamic power management module (available at an additional cost).

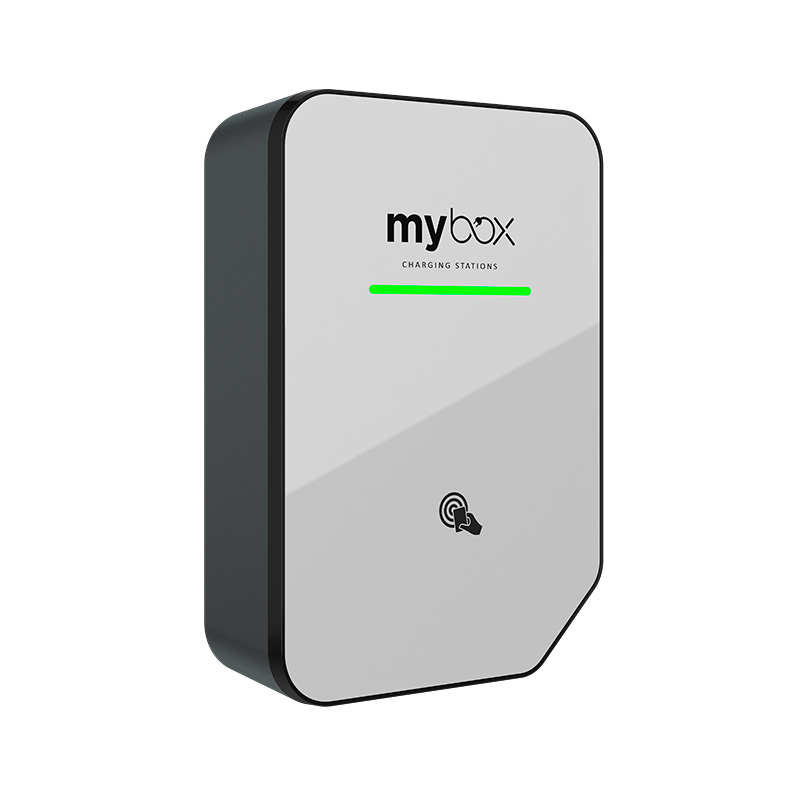

This durable and reliable AC charging station MyBox Plus in white features a modern design with a bevelled edge, which also serves as a practical charging cable holder. It is ideal for use in homes, businesses, and public areas with a higher risk of vandalism or mechanical wear and tear.
Quality Czech product with European components
The MyBox charging station is manufactured by the Czech company Elexim using exclusively high-quality components from leading European suppliers. Emphasis is placed on sustainability, long-term functionality, and hassle-free servicing. It offers similar parameters to the MyBox Home model, from which it differs mainly by its elegant bevelled edge.
Type 2 Charging Cable
The wallbox is equipped with an integrated 5-meter straight Type 2 cable, which provides a charging power of up to 11 kW.
Controls, Connectivity, and RFID Authorisation
Access to the station is securely controlled by an authorisation system with an RFID reader (two cards are included in the package). Thanks to Ethernet or Wi-Fi connectivity and support for the OCPP 1.6 protocol, you gain remote access and advanced user management options. The MyBox mobile app allows easy control of the wallbox and displays detailed information about the charging progress. Smart LED indicators directly on the station inform you of the current connector status.
Advanced Features and Smart Integration
You can easily connect the station to a photovoltaic (PV) system, allowing you to utilise surplus solar energy and significantly reduce operating costs. A major advantage is also the integration into a SmartHome system for convenient control of all devices from one place. Safety and accuracy are ensured by an integrated combined residual current device and circuit breaker (RCBO) along with a certified MID electricity meter. Additionally, a dynamic power management module can be purchased for the wallbox to prevent grid overload and power outages even when running demanding appliances such as a heat pump.
Durable Design and Safe Installation

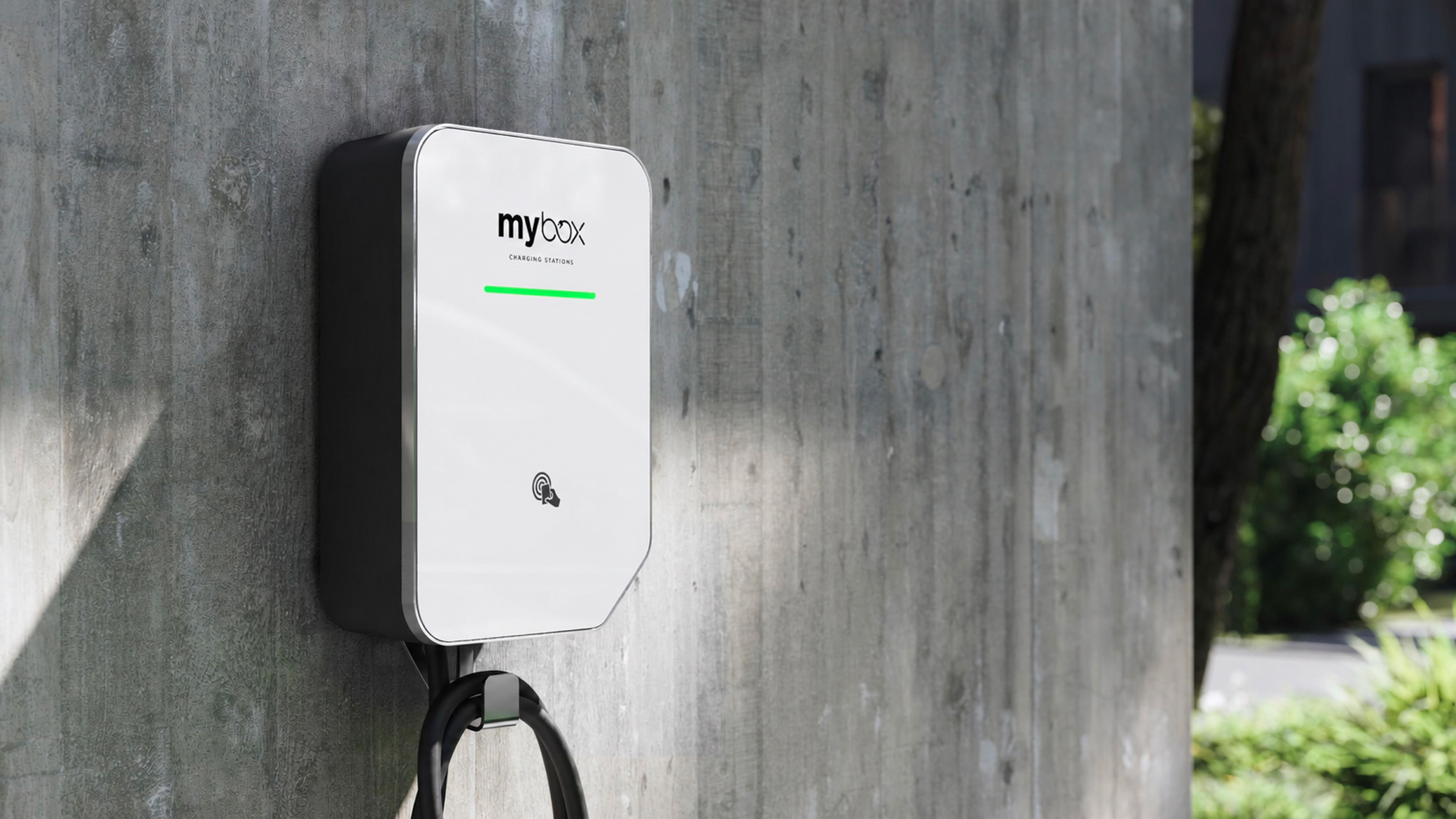

The construction made of durable plastic and white glass effectively resists mechanical damage and adverse weather conditions. This station offers the option of custom front panel customisation. A wide operating temperature range from -30 °C to +50 °C along with IP54/IK10 protection ratings guarantee reliable year-round operation. Mounting is possible on a wall or a separate pole. The offer is complemented by optional accessories, such as top and bottom brackets.
Technical Specifications
- Max. input current: 3 × 16 A
- Max. output power: 11 kW
- Max. output power per connector: 11 kW
- Max. output current per connector: 3 × 16 A
- AC output voltage: 400 V (3P+N+PE)
- IP/IK rating: IP54/IK10 (unplugged), IP44/IK10 (plugged in)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5% to 95% (non-condensing)
- Dimensions: 410 × 280 × 120 mm
- Station weight without cable: 7.5 kg
SECTRON is a certified holder of professional qualifications for the installation of EV charging stations.
Detailed technical information can be found in the attached datasheet.
