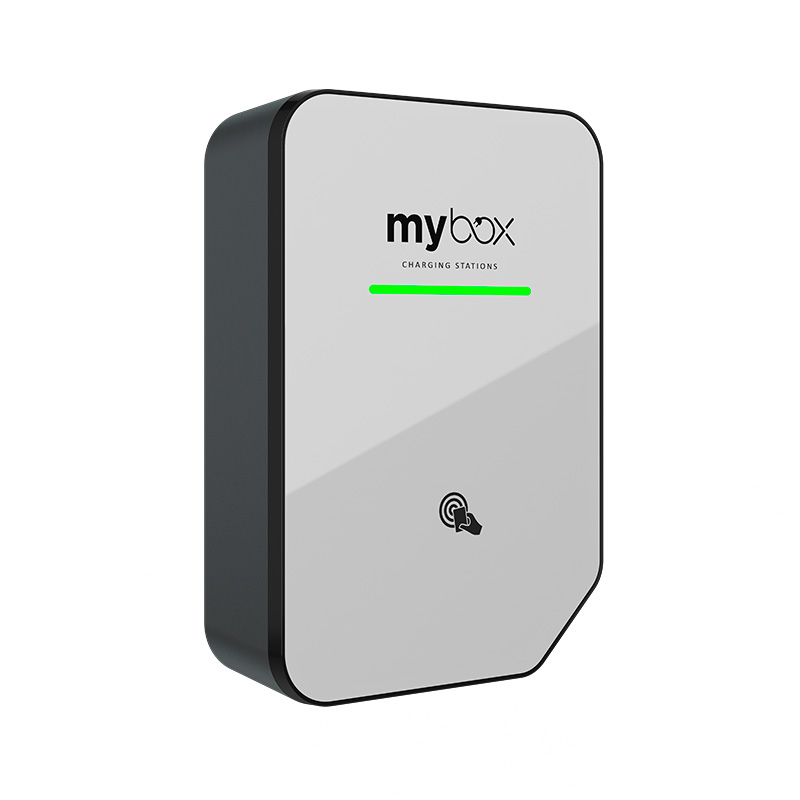

AC Wallbox Charging Station MyBox Plus, White, Spiral Cable, RFID, RCD
Key Features:
• Easy to mount on a wall or post.
• A Czech product made from European components.
• Possibility of connection with PV plants.
• Socket (Type 2) – for easy connection of your own charging cable.
• MyBox mobile application – you will immediately find out important information about the status of the wallbox and the charging process.
• Smart LED indicators inform about the status of the charging connector. If the green light is on, you can charge.
• Communication via Ethernet or Wi-Fi network.
• DC 6 mA leakage detection.
• Combined circuit breaker with protector.
• Electricity meter with MID certification.
• Authorization system RFID reader + 2 cards.
• OCPP protocol support.
• Dynamic power management module support (optional accessory).
Czech product from European components
The MyBox charging station is manufactured by the Czech company Elexim exclusively from high-quality parts from leading European suppliers. It focuses on sustainability, long service life, and easily accessible service. The model is based on the parameters of the MyBox Home station, from which it differs at first glance mainly by its elegant beveled edge.
Integrated Type 2 charging cable
This wallbox is equipped with a fixed 4m spiral cable with a Type 2 connector.
Control, connectivity, and RFID authorisation
Station activation is handled by an authorisation system with an RFID reader (two cards are included in the package). Connection via Wi-Fi or Ethernet along with the OCPP 1.6 protocol enables convenient remote management and user account administration. The MyBox mobile app displays a detailed overview of the charging progress, complementing the clear LED indicators directly on the station.
Advanced features and smart integration
The wallbox can be easily connected to a photovoltaic power plant (PV system) and a SmartHome system, allowing you to efficiently utilize excess energy and gain central control over your household consumption. An integrated residual current device with a circuit breaker and a certified MID meter ensure safety and accurate monitoring. Additionally, a dynamic power control module can be purchased to protect the grid from overloading, for example, during the simultaneous operation of a heat pump or other demanding appliances.

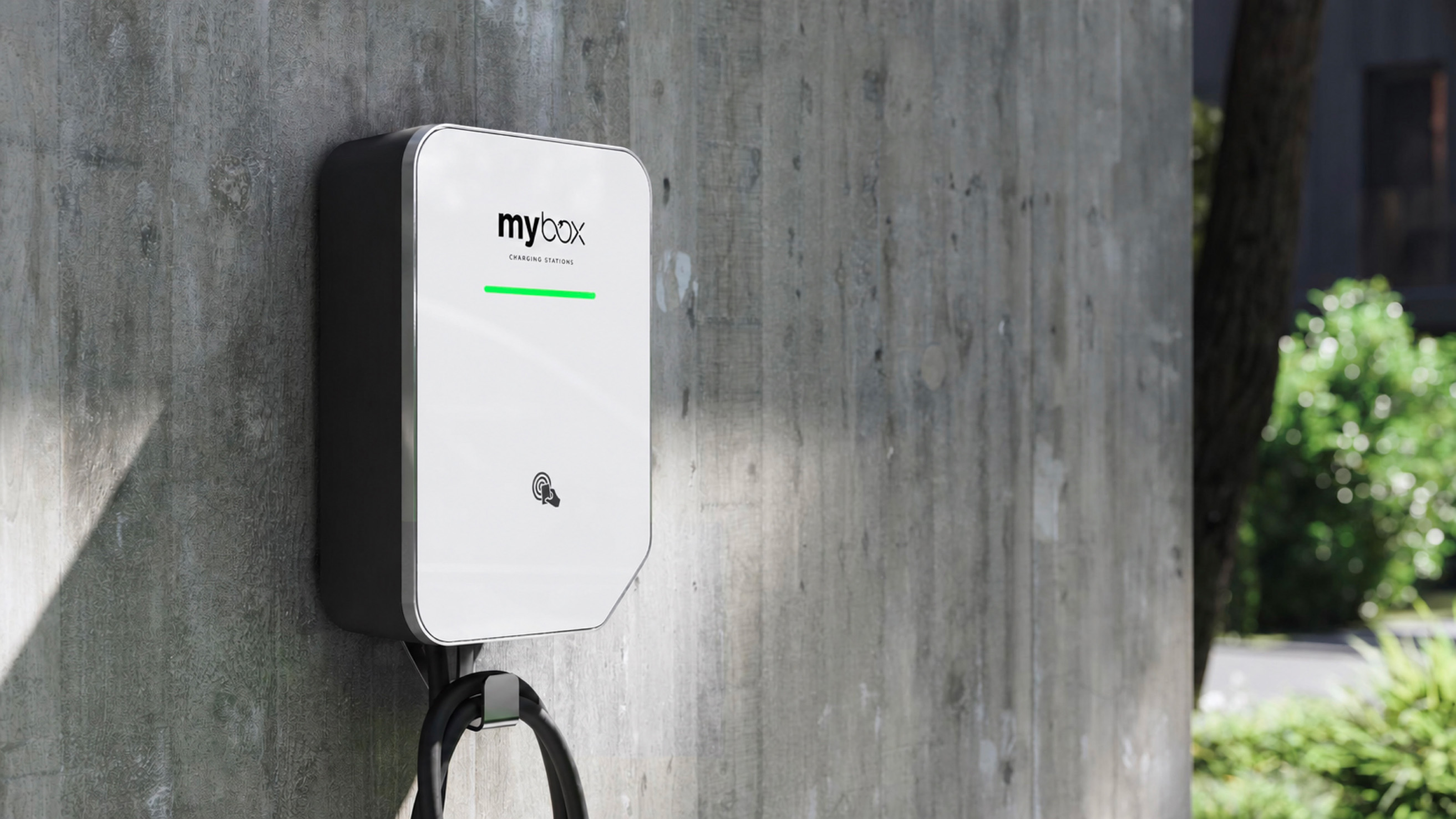

Durable construction and flexible mounting
The combination of durable plastic and tempered glass (with the option of custom printing) effectively protects the device from mechanical damage and the vagaries of the weather. A wide operating temperature range (-30 °C to +50 °C) and IP54/IK10 protection rating guarantee reliable year-round operation. The station can be safely mounted on a wall or a separate pole, both indoors and outdoors. We also offer optional accessories, such as top and bottom brackets.
Specifications:
- Max. input current: 3 × 32 A
- Max. output power: 22 kW
- Max. output power per connector: 22 kW
- Max. output current per connector: 3 × 32 A
- AC output voltage: 400 V (3P+N+PE)
- Protection: IP54/IK10 (not connected), IP44/IK10 (connected)
- Operating temperature: -30 °C to +50 °C
- Operating humidity: 5 to 95% non-condensing
- Dimensions: 410 × 280 × 120 mm
- Weight: 8.5 kg
Technical parameters can be found in the datasheet attached.
