AC charging station MyBox POST 2× 22 kW – 2 sockets, stainless steel, 2 straight cables
Key features:
- Chassis made of stainless steel, glass, and European components.
- Secure authorization (e.g., via RFID).
- Option to connect to a photovoltaic system.
- Advanced management options.
- Support for a dynamic load management module (optional extra).
- 2× MID-certified electricity meters.
- 2× combined circuit breaker with residual current device.
- Temperature kit.
- 6 mA DC leakage detection.
- Lockable front door for easy service access.

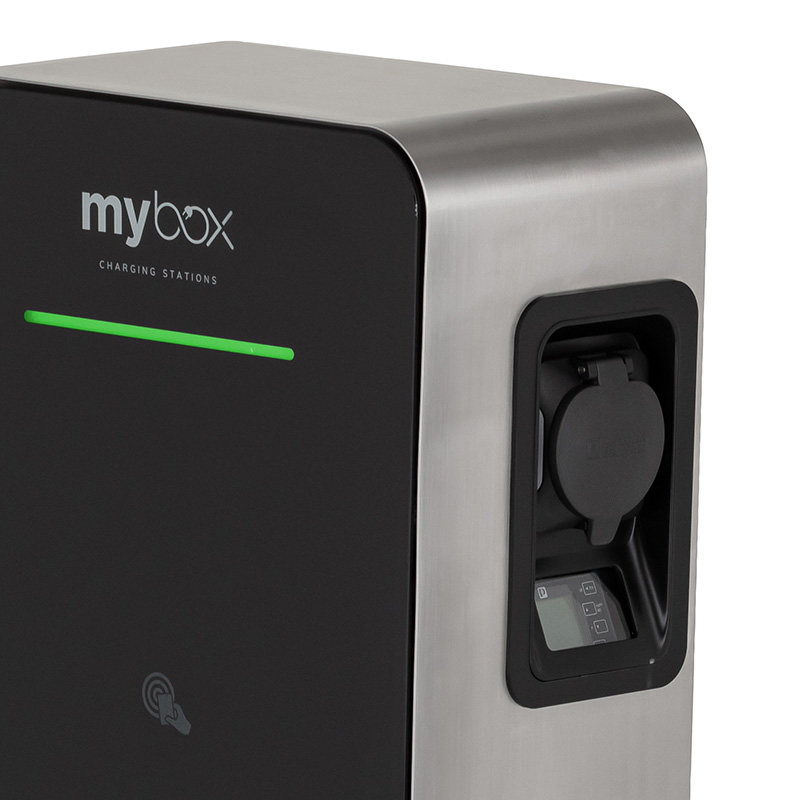

- Smart LED indicators for a clear overview of the charging connector status.
- Communication via Ethernet (RJ45), 4G/LTE, or Wi-Fi modem (optional extra).
- OCPP 1.6 communication protocol.
- Anti-vandal protection – surface finish for easy graffiti removal.
Czech quality and premium design
This product from the Czech manufacturer Elexim combines premium workmanship with the option to connect to a photovoltaic power plant. It is assembled exclusively from high-quality components supplied by leading European manufacturers.

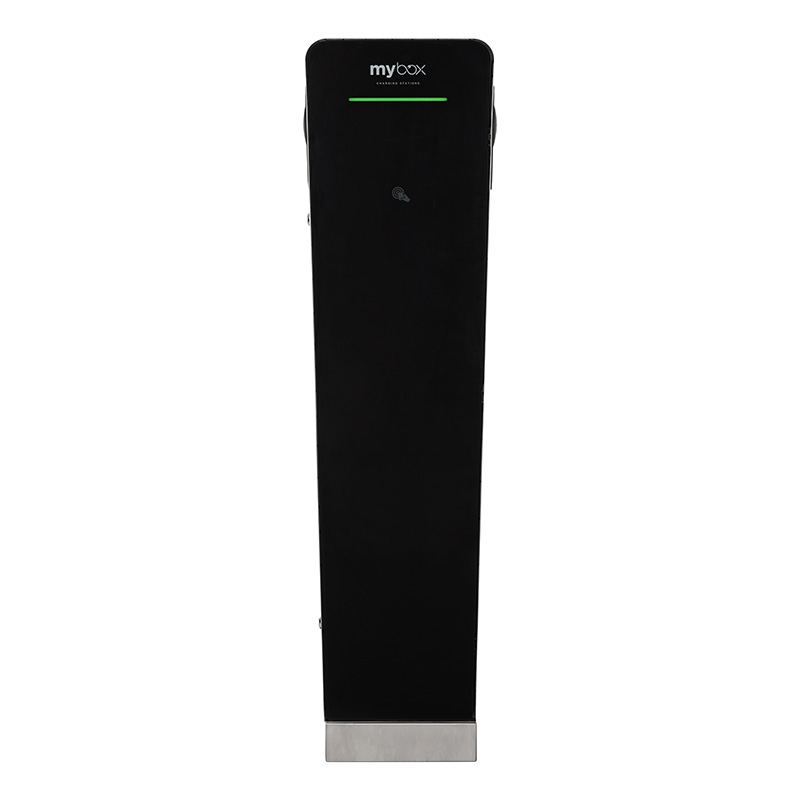

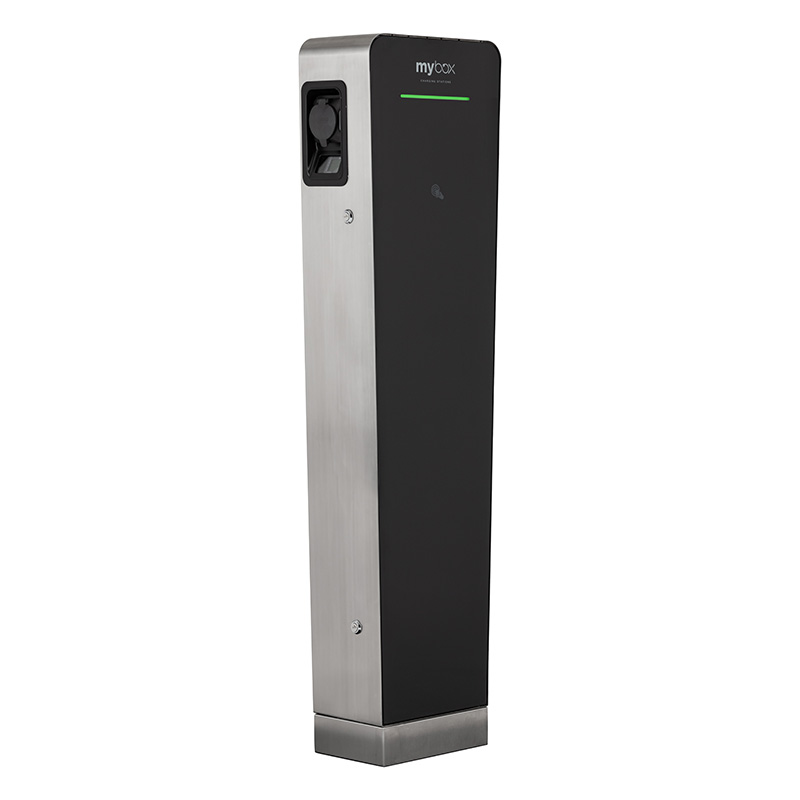

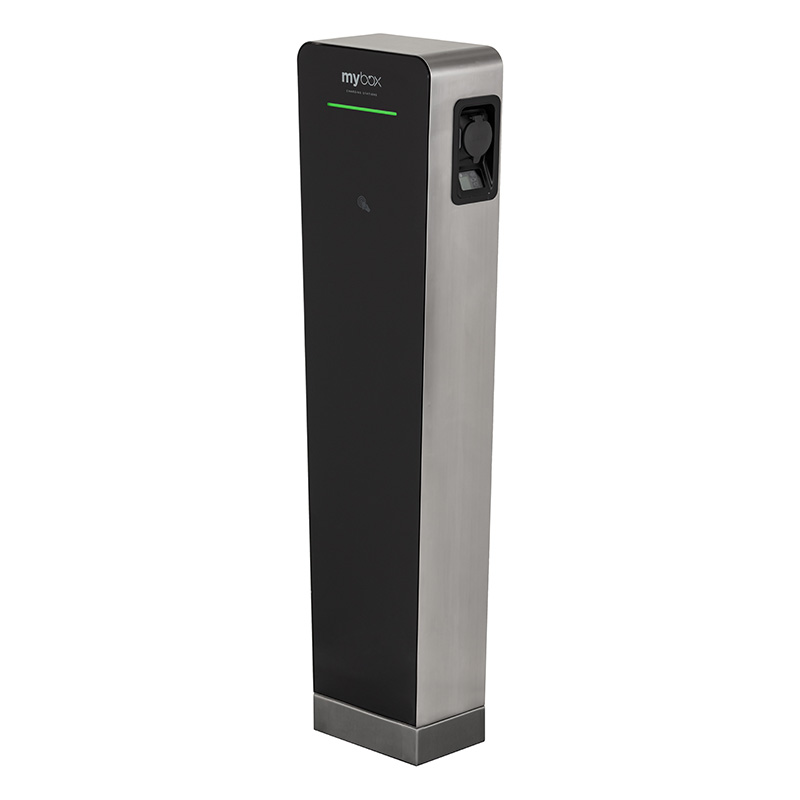

At first glance, the MyBox Post AC pedestal charging station impresses with its premium chassis made of stainless steel and tempered glass. This combination of materials gives the station a luxurious appearance while ensuring maximum safety and durability. The station also offers the option of custom front panel design.
High power for two vehicles simultaneously
With an output of 2× 22 kW, the station enables simultaneous charging of two electric vehicles or plug-in hybrids. As MyBox Post provides the full 22 kW output to each connector, charging remains equally fast whether one or two vehicles are connected. Advanced features, extensive configuration options, and robust construction make it an ideal solution for both commercial and public charging.
It can also be interconnected with additional stations, allowing you to create a network of up to 24 charging points.
Equipment and expansion options
The standard equipment also includes:
- Integrated temperature kit
- 2× MID-certified electricity meters
- 2× combined circuit breakers with residual current devices
- Authorization system with an RFID reader for managing user access (the package includes 4 RFID cards)
- 2× 4 m straight charging cables
The station can optionally be equipped with a dynamic load management module. This module actively protects the grid and prevents the main circuit breaker from tripping, even when a heat pump or another high-consumption appliance is switched on simultaneously (this module is also a requirement for obtaining subsidies from the New Green Savings programme or the National Development Bank).
Durability and flexible installation
Thanks to its operating temperature range of -30 °C to +50 °C, you can reliably charge your electric vehicle’s battery in freezing winter conditions as well as during hot summer weather. The station can be safely installed both indoors and outdoors.
Future-ready
All MyBox stations offer charging power of up to 22 kW. Although most current electric vehicles use an 11 kW on-board charger for AC charging, the MyBox Post station represents an investment in the future and is fully prepared for the upcoming generation of vehicles with higher supported input power.
Specifications:
• Max. input current: 3 × 64 A
• Max. output power: 44 kW
• Max. output power per connector: 22 kW
• Max. output current per connector: 3 × 32 A
• AC output voltage: 400 V (±10%)
• Protection rating: IP54/IK10 (unconnected), IP44/IK10 (connected)
• Operating temperature: -30 °C to +50 °C
• Operating humidity: 5 to 95%, non-condensing
• Dimensions: 370 × 1420 × 200 mm
• Station weight without cable: 52 kg
Technical parameters can be found in the attached datasheet.
