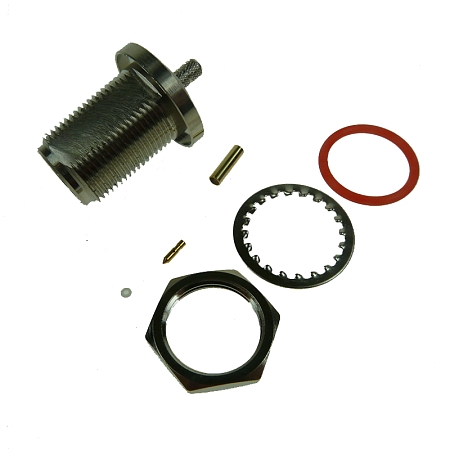

N Bulkhead jack for RG178

Product code: AO-N-178-FP /Manufacturer: SECTRON

p

6.27 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 5.64 EUR

Price from 100 pieces 5.08 EUR

guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Coaxial connector N (f) for cable RG178

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Coaxial connector N (f) is designed for cable RG178.

Parameters:

• Type: Female (f)
• Impedance: 50 Ω
• Maximum frequency: 0-11 GHz
• Operating temperature: - 65 °C to + 165 °C

Material and finish:

 • PIN: Copper / Gold
 • Insulator A: Copper / Nickel
 • Insulator B: Copper / Nickel
 • Body: PFTE / White
 • Ferrule: Copper / Nickel
 • Nut: Copper / Nickel
 • Washer: Copper / Nickel

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

Cable: RG178 Central contact polarization : Female
Execution: Panel
