N (f) panel connector LMR240
Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.
Coaxial panel connector N (f) is designed for cable LMR240.
• Type: Female (f)
•* Impedance*: 50 Ω
• Maximum frequency: 0-11 GHz
• Operating temperature: - 65 °C to + 165 °C

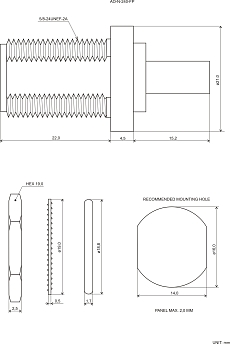

Technical parameters can be found in the attached datasheet or contact our sales department.
