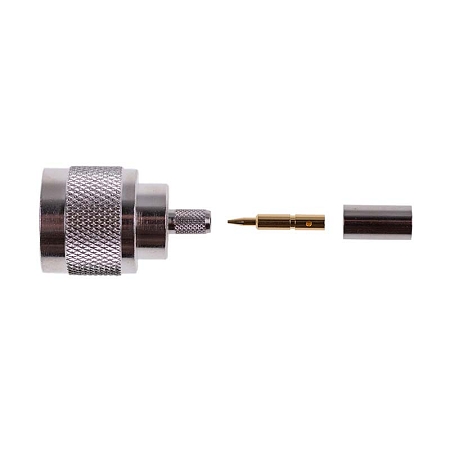

N Straight plug (male) RG58

Product code: AO-N-58-M-G /Manufacturer: SECTRON

ao-n-58-m-g-konektor-01 ao-n-58-m-g-konektor-02 ao-n-58-m-g-konektor-03

2.77 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 2.22 EUR

Price from 100 pieces 1.99 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Coaxial connector N (m) for cable RG58

Connectors with a screw-thread mechanism. N connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 11 GHz. Temperature range is -65 °C to +165 °C. N connectors are used, for example, to connect wireless WLAN devices, satellite systems and GSM / GPS / Wi-Fi antennas.

Cable crimp connector N (m) is designed for cable RG58 with a diameter of 4.95 mm.

Parameters:

• Type: Male (m)
• Impedance: 50 Ω
• Insulation resistance: 5 000MΩ
• Center contact resistance: 1 mΩ
• Outer contact resistance: 1 mΩ
• Maximum frequency: 0-11 GHz
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C

Material and finish:

• Body: brass / nickel
• Gasket: silicone / red
• Insulator: teflon / white
• Center contact: brass / gold

Technical parameters can be found in the attached datasheet or contact our sales department.


Parameters

Cable: RG58 Central contact polarization : Male
Execution: Linear cable
