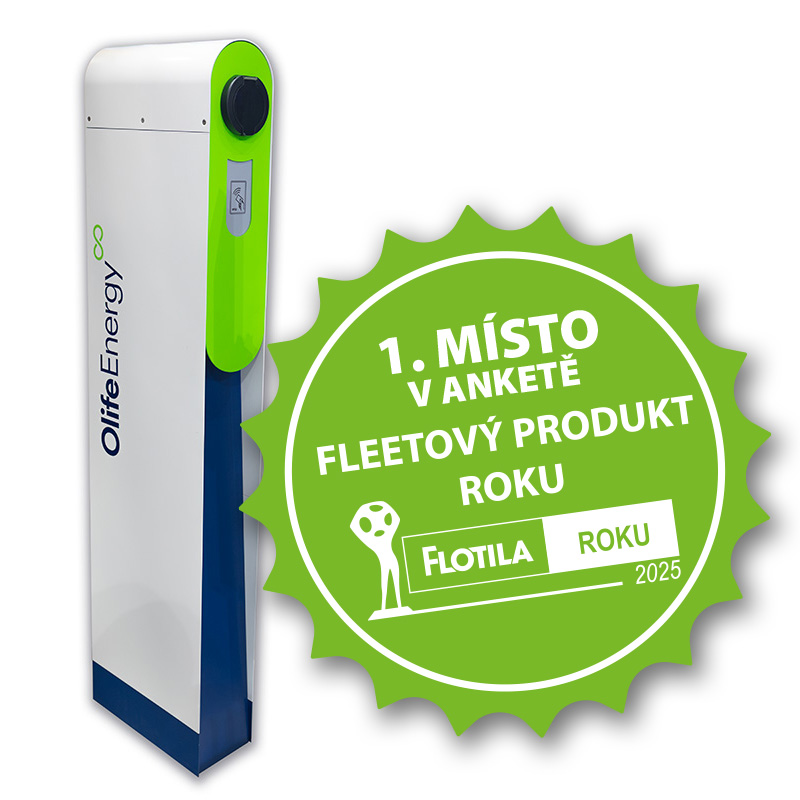

Olife Energy AC LITE - SMART Floor-standing Charging Station
Key Features of AC Charging Station:
• Czech Product
• Configuration via Mobile App (Local Bluetooth)
• Dynamic Power Management Using SmartMeter Unit
• OlifeEnergy AC Cloud Services (Remote Monitoring, Management, Control, and Billing)
• Protection Against Circuit Breaker Overload
• Integration with Smart Home Systems
• Low Tariff Charging
• RFID Authorization
• Control and Configuration via ModBus RTU (RS 485)
• Static Output Current Setting (Based on Pre-Installed Circuit Breaker)
• External Current Control (ModBus RTU / ADC 0–10 V)
• OlifeEnergy Cloud, OCPP
• Optional Measurement with Certified Meters (2014/32/EU MID)
• Ideal for Corporate or Public Parking Lots
This all-metal AC charging station is a robust and durable version with the same advanced features as the OlifeEnergy DoubleBox BASE. It is designed as a standalone station that can be anchored to the ground. With an IP54 rating, it is resistant and suitable for outdoor use. The all-metal construction provides maximum resistance to weather conditions and vandalism. It is ideal for commercial or public spaces, such as corporate or public parking lots, where high durability and reliability are required. Its design allows for easy installation and maintenance, while the advanced features ensure efficient and safe electric vehicle charging.
The Olife Energy AC LITE SMART pedestal station is a Czech product designed for charging all types of electric vehicles in the EU market with alternating current. It can charge two electric vehicles simultaneously, each with a charging power of up to 22 kW. To reduce charging time, the station can divide the power between the two vehicles based on their needs. It can charge two electric cars simultaneously, each with a charging power of up to 22 kW. To shorten the charging time, the station can divide the power input between the two charging vehicles according to their needs. The station includes a 7' color touch display that displays key charging information and allows easy control. The station is equipped with protection against electrical overload and can be supplemented with a payment terminal supporting contactless payments by card and mobile devices, which ensures fast and convenient payment for charging.
The charging station features extended functionality with connectivity to the OlifeEnergy Cloud and OCPP server. The OlifeEnergy Cloud service provides remote diagnostics, access management, and charging records.
The electric vehicle charging station is equipped with two sockets. Cables are not included and can be purchased in our e-shop under the category Charging Cables.
The AC LITE - SMART charging station offers extended functionality. It ensures remote communication (Ethernet, WiFi, GSM), station diagnostics, charging monitoring, and control using RFID chips and the OlifeEnergy mobile app. The remote server allows user authorization and management, diagnostics, and priority performance management. Through OlifeEnergy Cloud, it is possible to dynamically manage the performance of multiple stations and collaborate with existing MaR systems.
Charging Management
The total power consumption of the station can be dynamically regulated using the external OlifeEnergy SmartMeter module. SmartMeter ensures optimal utilization of the electrical connection capacity by measuring current energy consumption in the entire building before the main circuit breaker. It evaluates the available power for the OlifeEnergy charging station, which then regulates the charging current based on the available power.
The input power cable must be preceded by a Type A current protector with a minimum nominal current of 40 A.
OlifeEnergy CLOUD Services
OlifeEnergy Cloud is a platform for remote monitoring, management, control, and billing of electric vehicle charging stations. This service is only supported by the SMART version. The platform offers several service packages that can be combined. The Olife Energy Cloud service is charged with a monthly fee.
Remote Monitoring
Remote monitoring is a basic service that allows connection to the station, provides an overview of the total energy delivered and the station's status, and allows the station to be publicly accessible in the OlifeEnergy Net network. Remote monitoring facilitates diagnostics and potential servicing. The remote monitoring includes a SIM card with a flat-rate data connectivity payment.
Access Management
Access management is designed for easy administration of charging station users. It also provides a list of individual charges (time, energy, and user who charged), which is suitable for cost allocation in apartment complexes or monitoring costs in companies.
Public Charging Station Mode
Thanks to the Billing service, your charging station can generate revenue from public electric vehicle charging. The charging price and thus the revenue are determined by the station owner. The station can be supplemented with a physical payment terminal or an internet payment gateway.
Performance Management
The service for priority performance management of charging stations allows connecting stations to a limited circuit breaker (or limited power on the MVN – for example, 5 stations with a performance of 22 kW on a single 3x32 A circuit breaker) so that the performance is shared among the stations according to their utilization or set priorities. The Performance Management module primarily prevents exceeding the agreed quarterly maximum power consumption. Information about available power can be automatically taken from the building's MaR system. Overall, the Performance Management module provides savings on flat-rate payments in the form of reducing the value of the main circuit breaker or reserved power, and also by preventing penalized exceedances of quarterly maximums.
SECTRON is a certified holder of professional qualifications for the installation of electric vehicle charging stations.
AC Lite SMART Specifications:
• Output Type: 2 x Type 2
• Output Power: 0-44 kW
• Control: Local – automatic switching or RFID chip, remote – OlifeEnergy Cloud, OCPP
• Overcurrent Protection: 2 x 3-pole circuit breaker 32 A
• Residual Protection: 2 x 4-pole Type A protector + DC residual current detection according to IEC 62955
• Max. Output Current: 0-63 A
• Input Voltage: 3 x 400 V
• Communication: Bluetooth, Modbus RTU, ADC 0-10 V, TCP/IP
• Data Connection: Ethernet, Wi-Fi, GSM
• IP Rating: IP54
• Operating Temperature: -25 °C to 40 °C
• Operating Humidity: 5% to 95%
• Weight: 65 kg
• Dimensions: 385 x 1350 x 145 mm
Technical parameters can be found in the attached datasheet.
