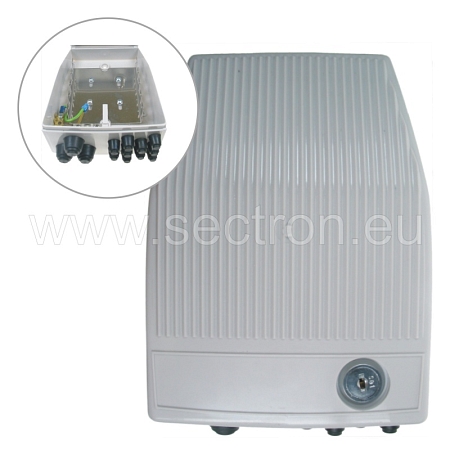

Plastic telecomunication box Q50, IP54
The telecommunication distribution box is intended for the placement and protection of GSM terminals and communicators from the weather.
It is made of thermoplastic, which is impact resistant. The cable outlets are equipped with rubber bushings made of technical rubber of EPDM quality. Behind them, inside the box, are cable clamps that allow mechanical fastening of cables.
The box is designed for the external environment of the European climate according to ETS 300019-1-4, class 4.1.E with the degree of protection IP 54 according to ČSN EN 60529.
Operating temperatures in the range -40 °C to + 70 °C at an operating humidity of 100%.
Internal dimensions of the switchboard: 147 × 115 × 69 mm
External dimensions of the switchboard: 200 × 150 × 100 mm
Technical parameters can be found in the attached datasheet.
