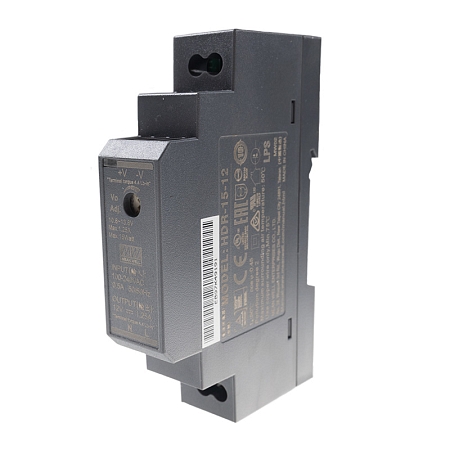

Power supply HDR-15-12 Mean Well
The power supply with an output voltage of 12 V and a maximum power of 15 W is a quality supply that is suitable for DC power supply of low-voltage electronic devices. Designed for mounting on a DIN rail.
The DIN rail source from the new DR-x-x model series has compact dimensions of 17.5 x 90 x 54.5 mm. It is ideal for use in industrial systems, building automation, production processes and electromechanical devices.
Specifications:
• Power: 15 W
• Output voltage: 12 V
• Output current: 1.25 A
• Universal input: 85 ~ 264VAC, 120 ~ 370 VDC
• Ultra-thin design with a width of 17.5 mm
• Insulation class II
• LPS
• Passive cooling
• Adjustable DC output voltage
• Designed for TS-35/7.5 or 15 DIN rail
• LED operation indicator
• Efficiency: 85%
• Operating temperature: -30 to +70°C
• Dimensions: 17.5 x 90 x 54.5mm
• Weight: 78 g
• Types of protection: short circuit, overload, overvoltage
More information can be found in the attached datasheet.
