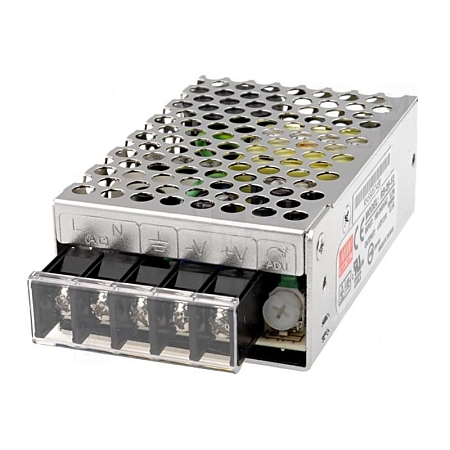

Power supply 12V, Mean Well RS-25-12
Switching power supply brand Mean Well in a metal housing with a stabilized output voltage of 12 V and a maximum power of 25 W. The power supply Mean Well RS-25-12 includes a screw terminal and a tuning output voltage trimmer (± 10%). This power supply is suitable for power supply in demanding conditions.
Features:
• Maximum power: 25 W
• Output voltage: 12 V
• Maximum output current: 2.10 A
• Input: 85 ~ 264V AC, 120 ~ 370V DC
• Conversion type: AC/DC
• Dimensions: 79 x 51 x 28
• Number of outputs: 1
• Output current range: 0 ~ 2.1
• Operating temperature: -20 °C to 70 °C
Technical parameters can be found in the attached datasheet.
