Product code: GP-ICM-SMT360
Producer: Protempis
Product code: 96975-00

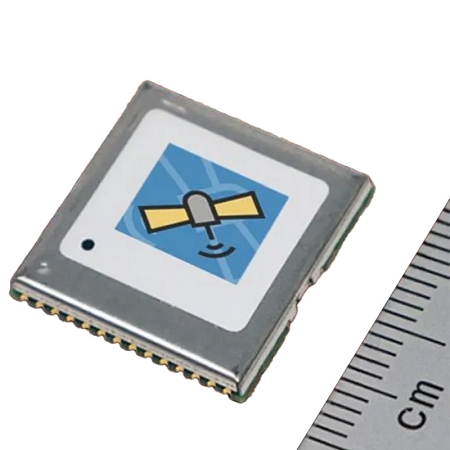

Protempis ICM SMT 360 (96975-00)

Product code: GP-ICM-SMT360
Producer: Protempis
Product code: 96975-00

Protempis ICM SMT 360 (96975-00)

Protempis ICM SMT 360™ module is a multi-GNSS (GPS, GLONASS, BEIDOU and Galileo ready) receiver, optimized to generate precise timing signal.

80.56incl. VAT (21%) / pc

excl. VAT 66.58 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Protempis ICM SMT 360

Protempis ICM SMT 360™ Timing Module to work in the most demanding weak signal environments, including femtocells and in-building systems.

The ICM SMT 360 timing module includes many of Protempis standard timing features, including Time-Receiver Autonomous Integrity Monitoring (T-RAIM) algorithm, to provide an accurate frequency reference ideal for Low Signal Environment.

KEY FEATURES:

 • Multi-Constellation
 • Simultaneous GPS / GLONASS or GPS / Beidou tracking
 • Ideal for populated urban and indoor environments with limited sky-view
 • Holdover: ±7us over 5 minute period (min. 1 hour learning) 100ppb over 24 hours
 • PPS, PP2S and 10MHz output (custom frequencies available)
 • Extended temperature range (-40°C / +85°C)
 • Dimension: 19 mm x 19 mm x 2.54 mm

More information can be found in the attached datasheet.

Parameters

Dimensions 19 x 19 x 2.54  mm Technology GPS , , , , ,
Weight 1.8  g Certification RoHS
Power supply 3.3 V

80.56incl. VAT (21%) / pc

excl. VAT 66.58 € / pc
