Product code: GP-RES-SMT720
Producer: Protempis
Product code: 121238-00

Protempis Res SMT 720 (121238-00)

Product code: GP-RES-SMT720
Producer: Protempis
Product code: 121238-00

Protempis Res SMT 720 (121238-00)

Module Protempis RES 720 is a dual-band (L1 and L5) multi-constellation GNSS timing receiver that provides a single RF input for all GNSS bands. This new technology is called Protempis Smart GNSS Assurance ™.

161.11incl. VAT (21%) / pc

excl. VAT 133.15 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

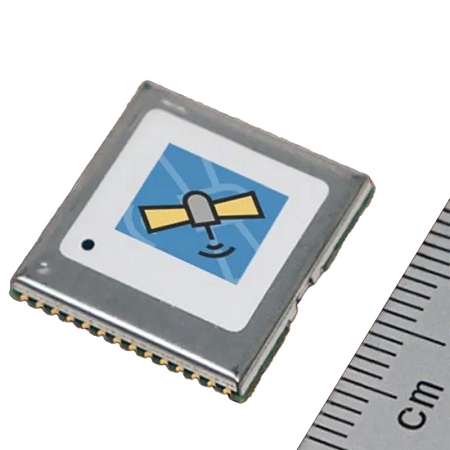

Module Protempis Res SMT 720

Module Protempis RES 720 is a dual-band (L1 and L5) multi-constellation GNSS timing receiver that provides a single RF input for all GNSS bands. This new technology is called Protempis Smart GNSS Assurance ™. The integrated timing module has increased protection against interfering signals and increased security against Hackers.

The Protempis RES 720 module is designed to provide the most accurate time pulse possible in critical network infrastructures of 4G / 5G base stations, data centers, calibration services or other systems requiring precise PPS (pulse per second) output. Pulse per second accuracy (PPS) is up to 5 nanoseconds GNSS / UTC. Thanks to highly accurate timing and synchronization, the RES 720 module is suitable for optimization and improvement in any modern network. 5G Open RAN / XHaul, smart grid, data centers, industrial automation and SATCOM networks, as well as calibration services and perimeter monitoring applications.

The Protempis Timing Module supports the National Marine Electronics Association (NMEA) industry standards for configuration and control.

Key Features:

• Cheap & easy to use
• Highly accurate and reliable
• Dual band L1 (1602MHz, 1575.42 MHz & 1561.098 MHz) and L5 (1176.45 MHz)
• Accuracy up to 5 nanoseconds
• NMEA and TSIP configurations
• Timing module Autonomous Integrity Monitoring (T-RAIM)
• Protection against hacker attacks
• Compact dimensions 19 x 19 mm
• Starter Kit
• RoHS compliant
• ISO 16750

More information can be found in the attached datasheet.

Parameters

Operating temperature -40 ~ +85  °C Dimensions 19 x 19 x 2.5  mm
Technology NavIC , , , , , Certification RoHS-II
Power supply 3.3
