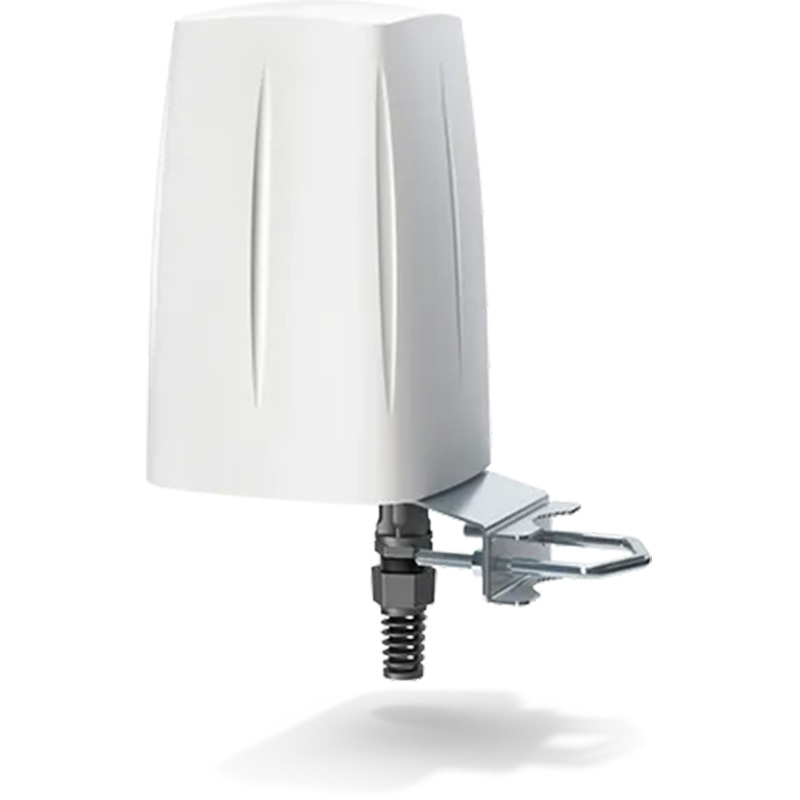

QuWireless QuSpot AX50S Outdoor Antenna for Teltonika RUTX50/RUTM51/RUTM54/RUTM55 Routers

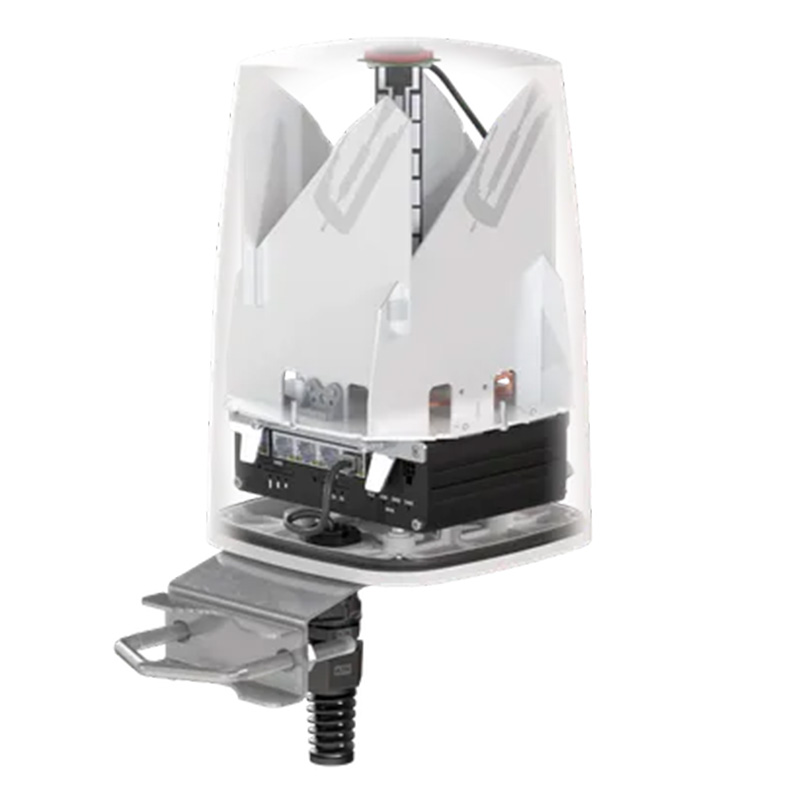

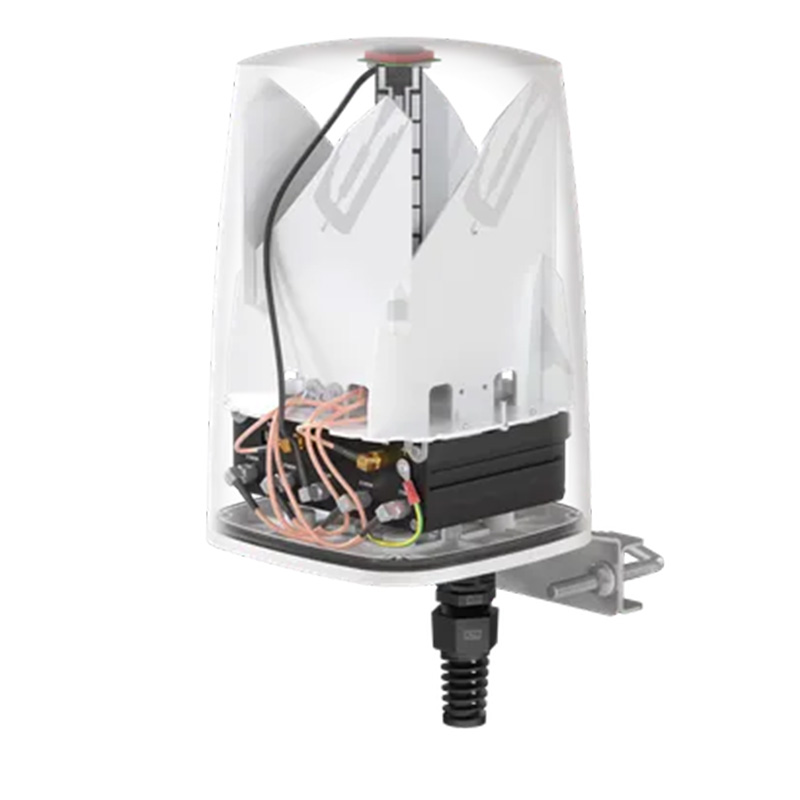

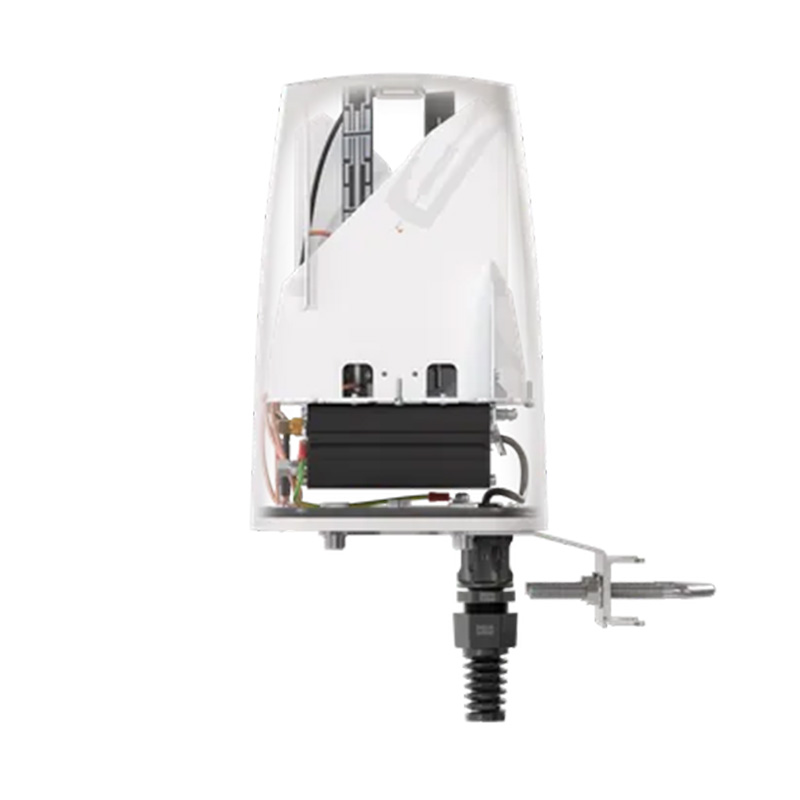

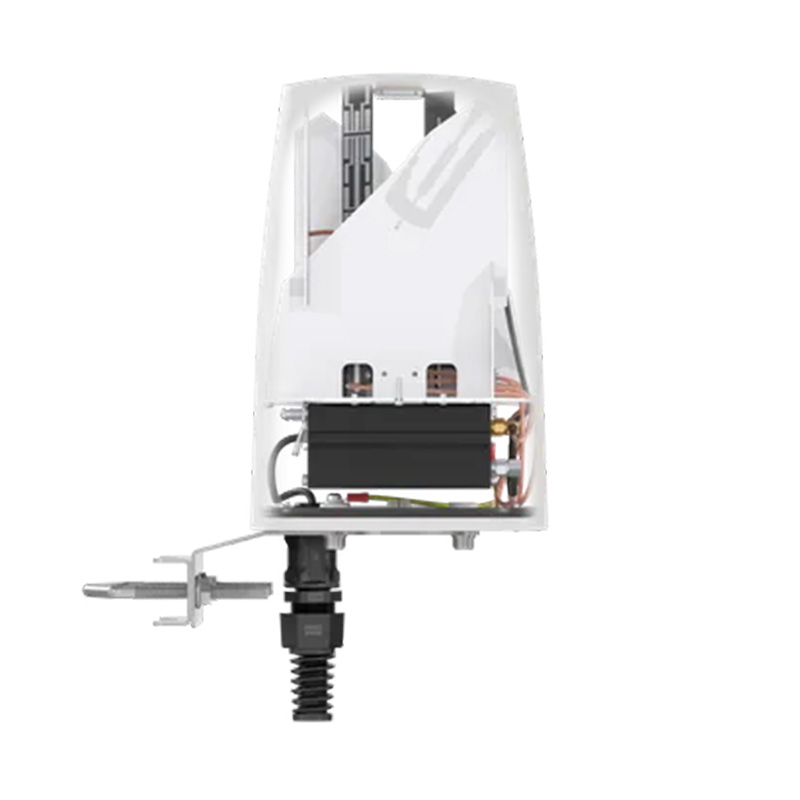

The QuWireless QuSpot AX50S outdoor antenna represents a comprehensive outdoor solution custom-designed for Teltonika RUTX50 and RUTM54 / RUTM55 / RUTM51 industrial routers. By placing the router directly inside the waterproof antenna body on a roof, mast, or vehicle, you maximize signal strength and completely eliminate attenuation and data losses that otherwise occur on long antenna cables.
The device provides access to an ultra-fast 5G network and stable Wi-Fi even in the most demanding outdoor or mobile conditions.
Ideal Use Cases
This system is ideal for camera, solar and security systems, as well as public or corporate Wi-Fi hotspots. It provides stable high-speed internet for transportation, yachting, boats and camping, but also in city centers with high signal density.
Full 5G Support and 4x4 MIMO
The enclosure integrates four omnidirectional 5G/LTE antennas (4x4 MIMO), ensuring the maximum possible throughput and stability of modern 5G networks.
High-Performance Wi-Fi and GPS
In addition to mobile antennas, the housing also contains an omnidirectional Dual-Band Wi-Fi antenna (with a gain of up to 7 dBi) and an active GPS antenna for precise real-time location tracking.
Single-Cable Installation
Both router power and data transmission are handled by a single Ethernet cable using passive PoE (Power over Ethernet). This eliminates the need for complex electrical wiring to the antenna.
Extreme Durability – IP68
The robust housing made of aluminum, ABS plastic, and PTFE reliably protects the router from dust, heavy rain, snow, UV radiation, and temperature extremes from -40 °C to +80 °C.
Ideal for Both Mobile and Fixed Installations
The omnidirectional radiation pattern (360°) means you do not need to precisely aim the antenna at the operator's transmitter. This makes it perfect for moving objects as well.
Easy installation

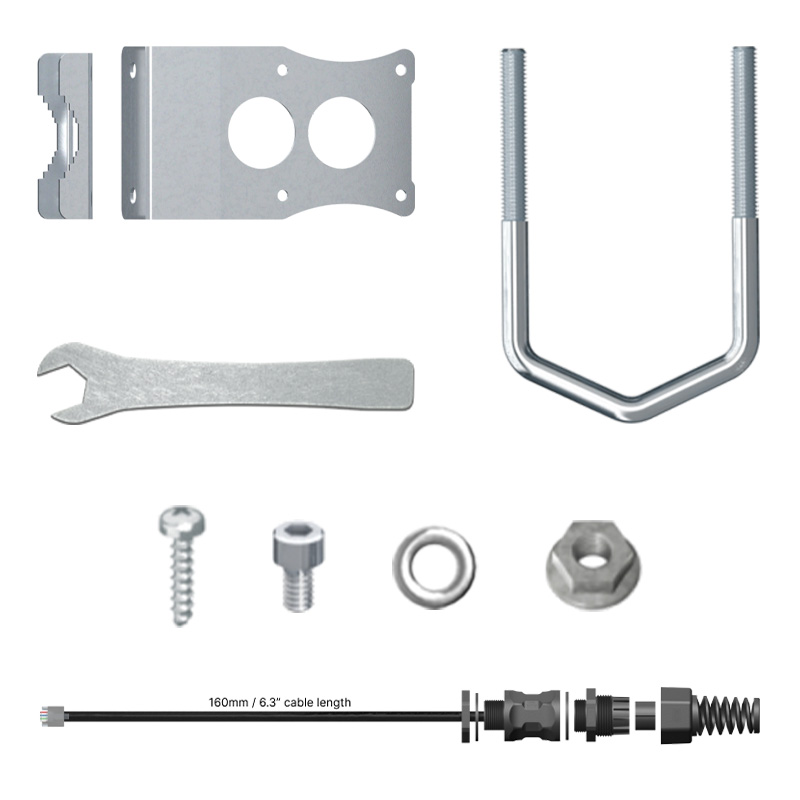

The package includes a universal mounting system that allows easy and firm mounting of the antenna both on a wall (facade) and on a circular mast or boom.
Key Features:
- Easy wall or pole mounting
- Made in Europe
- Operating temperature from -40 °C to +80 °C
- Passive PoE support
- Impedance 50 Ω
- IP68 protection rating
Technical specifications can be found in the attached datasheet.
