RF cable adaptor FAKRA(m) panel CLIP 1.13-1.37,C - IPX MHF, 1.37 mm, 11-20 cm

Product code: AM-88-FAKCIPX11 /Manufacturer: SECTRON

fakra-panelovy-clip-1-13-1-37-c ipx

1.39 EUR Without VAT

In stock When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

VF cable adaptor with connectors FAKRA (m) panel CLIP 1.13-1.37, C - IPX MHF, 1.37 mm, cable length 11-20 cm

Features:

FAKRA (m) panel 1.13-1.37 adaptor (pigtail), C - IPX MHF with LP-088 series cable, 11-20 cm cable length and 1.37 mm diameter. The adaptor is designed for the frequency range of the FAKRA N 0-6 GHz / IPX MHF 0-9 GHz connector. The FAKRA connector has a guarantee up to 25 cycles. The IPX MHF connector has a guarantee up to 30 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type LP-088: diameter 1.37 mm
• Cable length: 11-20 cm

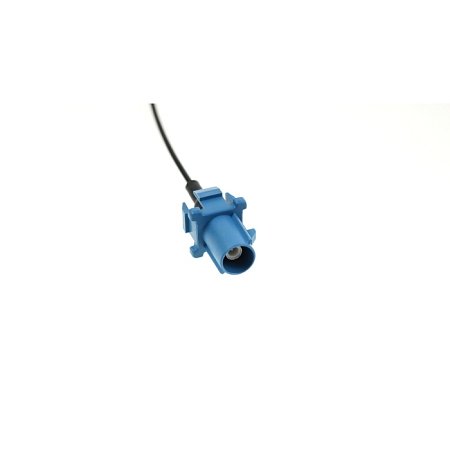

• Connector A: FAKRA (m) panel 1.13-1.37,C

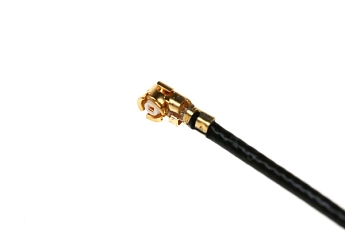

• Connector B: IPX MHF
• Certification: RoHS

Connector A - FAKRA

Use:


Fakra connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. Fakra connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting Fakra connectors is easy, we guarantee up to 25 cycles.

Parameters:


• Frequency range: Up to 6 GHz
• Impedance: 50
• VSWR <1.6:1
• Guaranteed number of connections before deformation: 25
• Operating temperature: -40 °C to +105 °C
• Certification: RoHS

Connector B - IPX MHF


Use:

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.

Parameters:


• Frequency range: Up to 9 GHz
• Impedance: 50
• MAX. VSWR: Female: <1.3: 1 (0.1-3 GHz) / <1.5: 1 (3-6 GHz) /1.9:1 (6-9 GHz)
 Male: <1.3: 1 (0.1-3 GHz) / <1.4: 1 (3-6 GHz) 1.8: 1 (6-9 GHz)
• Guaranteed number of connections before deformation: 30
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 °C to +90 °C
• Certification: RoHS

Coaxial cable LP 088


Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

Parameters

Cable lenght : 1100 mm Connector: IPX MHF / FAKRA(m) C
type of cable: LP-088: 1.37 mm

Hotline: 599 509 599

International business: +420 556 621 020, sales@sectron.cz

Hotline: 599 509 599

International Business: +420 556 621 030, obchod@sectron.cz
