VF cable adaptor with connectors FME(m) panel IP67 - U.F(f), 1.37 mm, cable length 5-10 cm

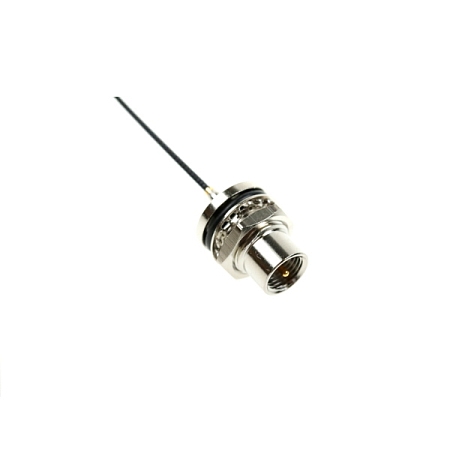

FME(m) panel IP67 adaptor (pigtail) - U.FL(f) with LP-088 series cable, 5-10 cm cable length and 1.37 mm diameter. The adaptor is designed for the frequency range of the U.FL 0-6 GHz / FME 0-2 GHz connector. Connecting and detaching the U.FL and FME connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The FME connector has a guarantee up to 500 cycles.
Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.
• Cable type LP-088: diameter 1.37 mm
• Cable length: 5-10 cm
• Connector A: FME(m) panel IP67
• Connector B: U.FL-LP-088
• Certification: RoHS
Connector A - Connector FME
FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.
• High reliability due to precise processing
• Low VSWR
• Frequency range: Up to 2 GHz
•* Impedance*: 50 Ohm
• Guaranteed number of connections: 500 cycles (only applies to berilium center contact)
• MAX. VSWR: <1.3: 1
• Maximum operating voltage: 500 V AC / 1 min
• Operating temperature: -65 °C to +155 °C
• Certification: RoHs
Connector B - Connector U.FL
U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components. Gold-plated center contact U.FL connector improves its properties.
• Low insertion loss
• Low VSWR
• Miniature dimensions
• Gold-plated center contact
• Frequency range: Up to 6 GHz
•* Impedance*: 50 ± 2 Ohm
• 500 Ohm insulation resistance
• MAX. VSWR <1.4: 1 (0-6GHz)
• Maximum operating voltage: 200 V AC / 1 min
• Guaranteed number of connections: 30 cycles
• Operating temperature: -40 °C do +90 °C
• Weight: 72 mg
Coaxial cable LP 088
The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.
The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
