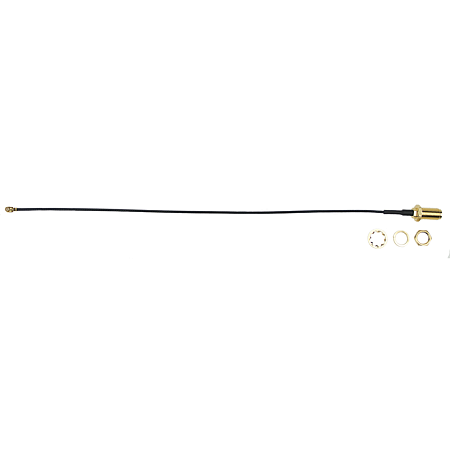

RF cable adaptor IPEX(f) to SMA(f), Cable 1.37 mm, 20 cm

Item code: AM-88-IS20 /Manufacturer: SECTRON

am-88-is20-1 1573546010am-88-us10-cable-parameters am-88-is20-4 am-88-is20-2 am-88-is20-nakres am-88-is20-3

2.55 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 2.04 EUR

Price from 100 pieces 1.84 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


RF cable adaptor (Pigtail) IPEX MHF(f) to SMA(f)

The price is for 1 piece of cable adaptor. Orders are only possible in multiples of 10 from a minimum quantity of 10. The cable adaptor components are packed in separate bags. Add the total number of cable adaptors to the basket (eg 50 or 130 pcs)

IPEX MHF (f) adaptor (pigtail) - SMA (f) with LP-088 series cable, 20 cm cable length and 1.37 mm diameter.
The cable adaptor is designed for the frequency range of the IPEX MHF(f) 0-9 GHz / SMA 0-18 GHz connector and achieves very low VSWR values, less than 1.6:1 over the entire frequency range. Connecting and detaching the IPEX MHF(f) and SMA connectors is easy, guarantee of 30 cycles due to the small size and strength of the IPEX MHF(f) connector. The SMA connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.


• Cable type LP-088: diameter 1.37 mm
• Cable length: 20 cm
• Connector A: SMA(f) panel straight, BH for RG178 cable, H8
• Connector B: IPEX MHF I for AWG30 (ø1.37 mm)
• Weight: 4.29 g
• Certification: RoHS

• Frequency range: Up to 3 GHz
• Impedance: 50 ± 2 Ohm
• Insulation resistance: 500 M. Ohm
• MAX. VSWR: <1.6: 0
• Maximum insertion loss: -0.9 dB / 3 GHz (10 cm)
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 °C to +85°C

Connector A - Connector SMA


These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties


• Low insertion loss
• Low VSWR
• High frequency range
• Fully gold


 • Frequency range: Up to 18 GHz
 • Impedance: 50 Ohm
 • MAX. VSWR: <1.5:1
 • Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
 • Maximum operating voltage: 500 V AC / 1 min
 • Operating temperature: -65 °C do +165 °C
 • Certification: RoHS

Connector B - Connector IPEX MHF

IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components.


• High reliability due to precise processing
• Low insertion loss
• Low VSWR
• Miniature dimensions
• High frequency range


• Frequency range: Up to 9 GHz
• Impedance: 50 Ohm
• MAX. VSWR: Female: <1.3: 1 (0.1-3 GHz) / <1.5: 1 (3-6 GHz) /1.9:1 (6-9 GHz)
                         Male: <1.3: 1 (0.1-3 GHz) / <1.4: 1 (3-6 GHz) 1.8: 1 (6-9 GHz)
• Guaranteed number of connections before deformation: 30
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 ° C to +90 ° C
• Certification: RoHS

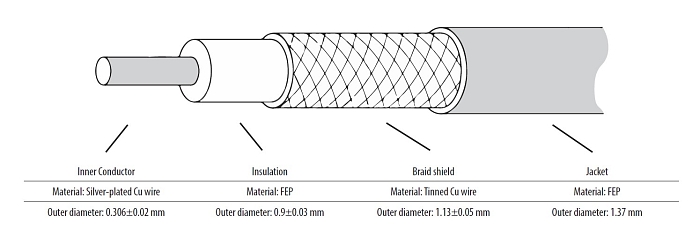

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

More information can be found in the attached datasheet.


Cable lenght : 200 mm Connector: SMA(f) / IPEX(f)-MHF1
Maximální vložný útlum: -0.9 dB Maximální VSWR: <1.6:1
type of cable: LP-088: 1.37 mm
