VF cable adaptor with connectors MCX (f) panel - IPX MHF, 1.37 mm, cable length 11-20 cm


MCX (f) panel adaptor (pigtail) - IPX MHF panel, with LP-088 series cable, 11-20 cm cable length and 1.37 mm diameter.
The adaptor is designed for the frequency range of the MCX 0-6 GHz / IPX MHF 0-9 GHz connector. Connecting and detaching the IPX MHF and MCX connectors is easy, guarantee of 30 cycles due to the small size and strength of the IPX MHF connector. The MCX connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.


• Cable type LP-088: diameter 1.37 mm
• Connector A: MCX panel (f)
• Connector B: IPX MHF
• Certification: RoHS

Connector A - Connector MCX


These are coaxial connectors with a latch mechanism. They are compatible with SMB connectors, but are 30% smaller than SMB connectors. The dimensions of the internal contact and the insulator are the same. The impedance of the connector is either 50 Ohm with an operating frequency range up to 6 GHz or 70 Ohm with an operating range up to 3 GHz. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.


• Low insertion loss
• Low VSWR


• Impedance 50 Ohm
• 500 connect / disconnect cycles
• VSWR <1.35: 1
• Max. Insertion loss: 0.1dB / 1 GHz
• Operating temperature -65˚C + 165˚C
• Frequency range 0-6 GHz

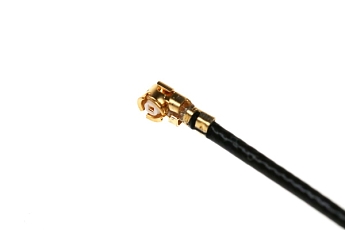

Connector B - Connector IPX MHF


IPEX MHF connectors are compatible with U.FL connectors for applications where there is very little space for connecting / interconnecting RF components. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 9 GHz.


• High reliability due to precise processing
• Low insertion loss
• Low VSWR
• Miniature dimensions
• High frequency range


• Frequency range: Up to 9 GHz
• Impedance: 50
• Max. VSWR: Female: <1.3: 1 (0.1-3 GHz) / <1.5: 1 (3-6 GHz) /1.9:1 (6-9 GHz)
                         Male: <1.3: 1 (0.1-3 GHz) / <1.4: 1 (3-6 GHz) 1.8: 1 (6-9 GHz)
• Guaranteed number of connections before deformation: 30
• Maximum operating voltage: 200 V AC / 1 min
• Operating temperature: -40 ° C to +90 ° C
• Certification: RoHS

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
