Product code: AO-KACSP-04
Producer: SECTRON

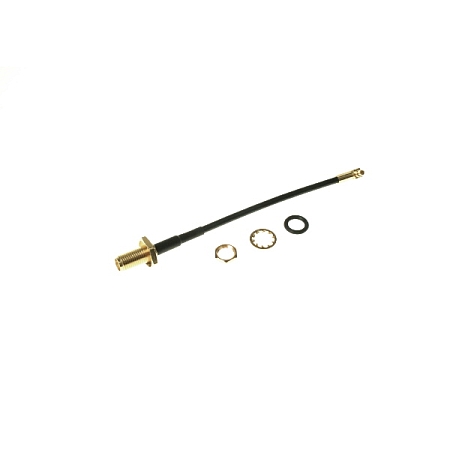

RF cable adaptor MMCX(m) R/A to SMA(f) Panel, RG174, 10cm

Product code: AO-KACSP-04
Producer: SECTRON

RF cable adaptor MMCX(m) R/A to SMA(f) Panel, RG174, 10cm

Adaptor (pigtail) - MMCX (m) 90°-SMA (f) with RG174 series cable, 10 cm cable length and 2.80 mm diameter.

7.67incl. VAT (21%) / pc

excl. VAT 6.34 € / pc

Price from 10 pieces 5.77 €

Price from 100 pieces 5.19 €

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

RF cable adaptor MMCX90 (m) to SMA (f) Panel, cable RG174, cable length 10 cm

Adaptor (pigtail) - MMCX (m) 90°-SMA (f) with RG174 series cable, 10 cm cable length and 2.80 mm diameter. The adaptor is designed for the frequency range of the MMCX 0-6 GHz / SMA 0-18 GHz connector.
Connecting and detaching the MMCX and SMA connectors is easy, the guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type RG174: diameter 2.80 mm
• Cable length: 10 cm
Connector A: MMCX (m) 90°
Connector B: SMA (f)
• Certification: RoHS

• Frequency range: Up to 3 GHz
•* Impedance*: 50
• Insulation resistance: 500 M. Ohm
• Max. VSWR: <1.3:1 (0-3 GHz)
• Maximum insertion loss: 0.4 dB max (1 GHz) / 0.65 dB/m (2 GHz)
• Maximum operating voltage: 250 V AC / 1 min
• Operating temperature: -40 °C to +75 °C

Connector A - Connector MMCX:

Use:

These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors, but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.

Properties:

• Frequency range: 0-6 GHz
•* Impedance*: 50 Ω
• Temperature range: -40 °C to + 90 °C
• Voltage: 170 V AC (rms)
• Insulation resistance: 500 MΩ Min.
• Certification: RoHS

Connector B - Connector SMA:

Use:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The SMA connector includes an O-ring that enhances water and dust sealing properties. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties

Properties:

 • Frequency range: Up to 18 GHz
 •* Impedance*: 50 Ohm
 • MAX. VSWR: <1.5:1
 • Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
 • Maximum operating voltage: 500 V AC / 1 min
 • Operating temperature: -55 °C do +155 °C
 • Certification: RoHS

Coaxial cable RG174

Cable features:

The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

More information can be found in the attached datasheet.
