RF cable adaptor MMCX(m)90°-FME(m )blkh, RG174, cable length 10 cm

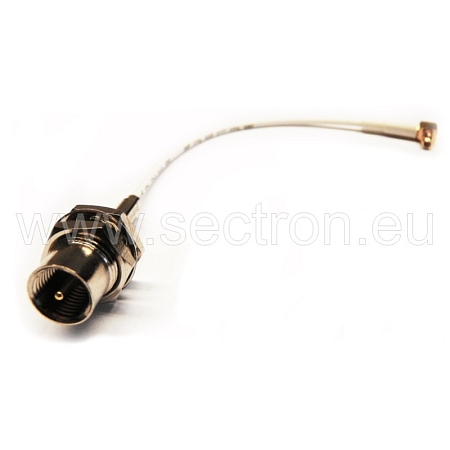

MMCX(m)90° adaptor (pigtail) - FME(m )blkh with RG174 series cable, 10 cm cable length and 2.80 mm diameter.
The adaptor is designed for the frequency range of the MMCX 0-6 GHz / FME 0-2 GHz connector. Connecting and detaching the MMCX and FME connectors is easy, guarantee of 500 cycles.
Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.
• Cable type: RG174
• Cable diameter: 2.80 mm
• Cable length: 10 cm
• *Connector *A: MMCX (m) 90°
• *Connector *B: FME (m)
• Certification: RoHS
*Connector *A - *Connector *MMCX
These are coaxial connectors with a latch mechanism, which are compatible with MCX connectors, but have a smaller size. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 6 GHz. Operating temperature range -65 °C to + 165 °C. They are characterized by high reliability and mechanical stability. They are also used as standard connectors in GPS devices, WLAN networks, fixed and mobile communications.
• Frequency range: 0-6 GHz
•* Impedance*: 50 Ohm
• Temperature range: -40 ° C to + 90 ° C
• Voltage: 170 V AC (rms)
• Insulation resistance: 500 MΩ Min.
*Connector *B - *Connector *FME
FME coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the operating frequency ranges up to 2 GHz. Temperature range is -65 °C to +155 °C. Thanks to their compact size and long longevity, the FME connectors are used in the field of mobile communications as well as for GSM antennas. They are suitable for installation in vehicles as well.
• Frequency range: Up to 2 GHz
• *Impedance *50 Ohm
• Guaranteed number of connections: 500 cycles (only applies to berilium center contact)
• MAX. VSWR: <1.3: 1
• Maximum operating voltage: 500 V AC / 1 min
• Operating temperature: -65 °C to +155 °C
• Certification: RoHs
Coaxial cable RG174
The cable labeled RG174 / U is a basic variant of a coaxial cable that is compatible with connectors applicable to a cable diameter of 2.8 mm. The characteristic impedance of the cable is 50 Ω. The reduction factor is fixed at 0.66. The most common cables of this type have a temperature range of -20 to 80 °C.
It is most often used for creating cable adaptors with connectors such as BNC / FAKRA / FME / MCX / MMCX / N / SMA / SMB / SMP / TNC and others. It is ideal for short and bending stressed connections in measuring and telecommunications technology, for GPS / GSM / WLAN antennas, antenna leads etc. There are also specially modified types of RG174/U cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.
We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.
The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
Technical parameters can be found in the attached datasheet.
