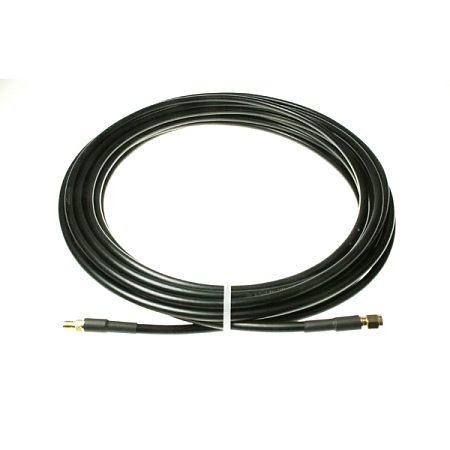

RF cable adaptor SMA(m) Str. to SMA(f) Str., RF240, 25m

Product code: AO-KASS25-240 /Manufacturer: SECTRON

ao-kass25-240

82.97 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 75.42 EUR

Price from 100 pieces 67.88 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

RF cable adaptor SMA (f) to SMA (m), cable RF240, cable length 25 m

The adaptor SMA (f) to SMA (m) is designed for the frequency range of the connector with the RF240 series cable, the cable length is 25 m and the diameter is 6.10 mm. The SMA connector has a guarantee up to 500 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.

Parameters:

• Cable type RF240: diameter 6.10 mm
• Cable length: 25 m
• Connector A: SMA(f)
• Connector B: SMA(m)
• Certification: RoHS

Connector A, B - Connector SMA:

Use:

These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

Benefits:

• Low insertion loss
• Low VSWR
• High frequency range
• Fully gold

Properties:

 • Frequency range: Up to 18 GHz
 • Impedance: 50 Ohm
 • MAX. VSWR: <1.5:1
 • Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
 • Maximum operating voltage: 500 V AC / 1 min
 • Operating temperature: -55 °C do +155 °C
 • Certification: RoHS

Coaxial cable RF240

Cable features:

The RF240 coaxial cable is compatible with connectors applicable to cables with 6.10 mm outer diameter. It is mainly used for the frequency range 0-6 GHz. The characteristic impedance is 50 Ω. The most common cables of this type have a temperature range of -40 °C to + 85 °C. The shortening factor is set at 0.84. The .240 cable is used in metrology, audio and wireless communications, the automotive industry and also for VHF and UHF applications. There are also specially modified types of .240cables for outdoor use, which are UV resistant, as well as for use in extreme conditions. There are made of different materials, different qualities.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
