RF cable adaptor SMA (m) to SMA (f), cable RG174, length 1m

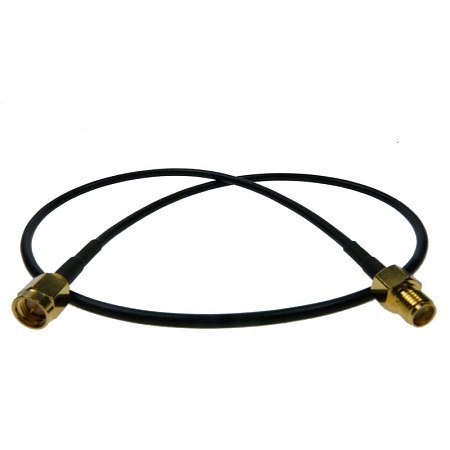

SMA (m) adaptor (pigtail) - SMA (f) with RG174 series cable, 1 m cable length and 2.80 mm diameter.
The adaptor is designed for the frequency range of the SMA 0-18 GHz connector. Connecting and detaching the SMA connectors is easy, guarantee of 500 cycles.
Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.
• Cable type RG174: diameter 2.80 mm
• Cable length: 1 m
• Connector A: SMA (m)
• Connector B: SMA (f)
• Certification: RoHS
Connector A,B - Connector SMA
These are high-frequency connectors with screw connection mechanisms. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The SMA connector includes an O-ring that enhances water and dust sealing properties. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties
• Low insertion loss
• Low VSWR
• High frequency range
• Fully gold
• Frequency range: Up to 18 GHz
•* Impedance*: 50 Ohm
• MAX. VSWR: <1.5:1
• Guaranteed number of SMA connections : 500 (only applies to berilium center contact)
• Maximum operating voltage: 500 V AC / 1 min
• Operating temperature: -55 °C do +155 °C
• Certification: RoHS
Coaxial cable LP 088
The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.
The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
Technical parameters can be found in the attached datasheet.
