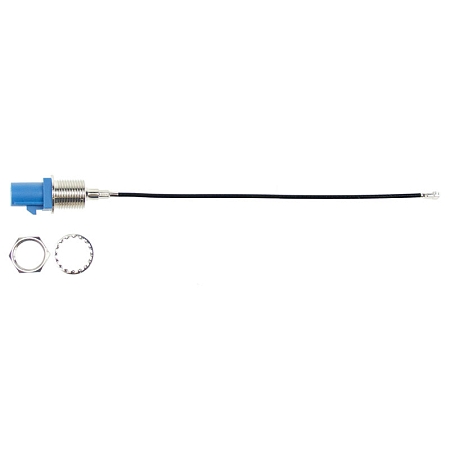

RF cable adaptor U.FL(f) to FAKRA(m)C thread, LP-088, 10 cm

Item code: AM-88-UAPC10 /Manufacturer: SECTRON

am-88-uapc-d-12-03 am-88-uapc-d-12-02 am-88-uapc-d-12-01

4.14 EUR Without VAT

On request When do I get the item?

Price from 10 pieces 3.76 EUR

Price from 100 pieces 3.39 EUR

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


RF cable adaptor (pigtail) U.FL(f) to FAKRA(m)C screwing, cable length 10 cm


U.FL(f) adaptor (pigtail) - FAKRA(m)C screwing with LP-088 series cable, 10 cm cable length and 1.37 mm diameter.
The adaptor is designed for the frequency range of the U.FL 0-6 GHz / FAKRA 0-6 GHz connector. Connecting and detaching the U.FL and SMA connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The FAKRA connector has a guarantee up to 100 cycles.

Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.


• Cable type LP-088: diameter 1.37 mm
• Cable length: 10 cm
• Connector A: FAKRA - C(m)
• Connector B: U.FL-LP-088
• Certification: RoHS

Connector A - Connector FAKRA


Fakra connectors in a plastic housing. These housings are available in 14 different colors for easy identification. The characteristic impedance of the connector is 50 Ohm, working frequency ranges up to 6 GHz, working temperature is from -40 °C to 105 °C. FAKRA connectors are most often used in the automotive industry, for example for connecting antennas, radios, navigation. They are also widely used in M2M and IoT devices. Connecting and disconnecting Fakra connectors is easy, we guarantee up to 100 cycles.


• Low insertion loss
• Low VSWR
• High frequency range


 • Frequency range: Up to 6 GHz
 • Impedance: 50 Ohm
 • MAX. VSWR: <1.5:1
 • Guaranteed number of FAKRA connections : 100 cykles
 • Maximum operating voltage: 500 V AC / 1 min
 • Operating temperature: -40 °C do +105 °C
 • Certification: RoHS

Connector B - Connector U.FL


U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components.
Gold-plated center contact U.FL connector improves its properties.


• Low insertion loss
• Low VSWR
• Miniature dimensions
• Gold-plated center contact


 • Frequency range: Up to 6 GHz
 • Impedance: 50 ± 2 Ohm
 • 500 Ohm insulation resistance
 • MAX. VSWR <1.4: 1 (0-6GHz)
 • Maximum operating voltage: 200 V AC / 1 min
 • Guaranteed number of connections: 30 cycles
 • Operating temperature: -40 °C do +90 °C
 • Weight: 72 mg

Coaxial cable LP 088

Cable features:

The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.

We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.

The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.

Technical parameters can be found in the attached datasheet.


Cable lenght : 100 mm Connector: U.FL(f) / FAKRA(m) C
type of cable: LP-088: 1.37 mm
