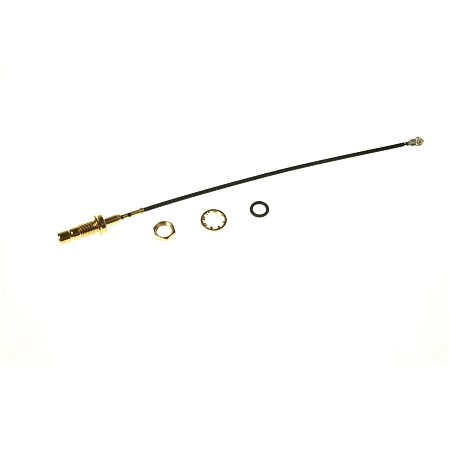

RF cable adaptor U.FL (f) to SMB (m) panel, LP-088, cable length 10 cm
U.FL (f) adaptor (pigtail) - SMB (m) panel with LP-088 series cable, 10 cm cable length and 1.37 mm diameter.
The adaptor is designed for the frequency range of the U.FL 0-6 GHz / SMB 0-4GHz connector. Connecting and detaching the U.FL and SMB connectors is easy, guarantee of 30 cycles due to the small size and strength of the U.FL connector. The SMB connector has a guarantee up to 500 cycles.
Cable adaptors (pigtails) then serve as an extension for connecting eg 2G / 3G / LTE / Wi-Fi / GPS antennas to various PCBs, modules, Mini PCI cards etc.
• Cable type LP-088: diameter 1.37 mm
• Cable length: 10 cm
• Connector A: U.FL-LP-088
• Connector B: SMB (m) panel
• Certification: RoHS
Connector A - Connector U.FL
U.FL connectors are used in applications where there is very little space for connecting / interconnecting RF components.
Gold-plated center contact U.FL connector improves its properties.
• Low insertion loss
• Low VSWR
• Miniature dimensions
• Gold-plated center contact
• Frequency range: Up to 6 GHz
•* Impedance*: 50 ± 2 Ohm
• 500 Ohm insulation resistance
• MAX. VSWR <1.4: 1 (0-6GHz)
• Maximum operating voltage: 200 V AC / 1 min
• Guaranteed number of connections: 30 cycles
• Operating temperature: -40 °C do +90 °C
• Weight: 72 mg
Connector B - Connector SMB
SMB coaxial connectors are characterized by high reliability and mechanical stability. Snap-on mechanism provides fast and reliable connection. The characteristic impedance of the connector is 50 Ohm and the working frequency ranges up to 4 GHz. They are used, for example, to connect wireless WLAN devices, test devices and GSM / GPS / Wi-Fi antennas.
• *Impedance *50 Ohm
• VSWR <1.25: 1
• Max. Insertion loss: 0.25dB
• Operating temperature -65˚C + 165˚C
• Frequency range 0-4 GHz
Coaxial cable LP 088
The LP 088 coaxial cable is compatible with connectors that are applicable to a 1.37 mm cable diameter. Due to its features and size, it is widely used in applications that require high-frequency transmission using miniature coaxial connections. The characteristic impedance of the cable is 50 Ω. It is suitable for applications involving RF communication equipment, as well as electronic measuring instruments. It is most often used for creating cable adaptors with connectors such as U.FL / FAKRA / FME / MHF / MCX / MMC / N / QMA / SMA / SMA-RP / SMB / SMP / TNC and others. The resulting cable adaptors are most often used to connect external antennas to eg cellular modules or IoT / NB-IoT / WiFi / GNSS and other RF devices.
We are a Czech producer of custom cable adaptors. Use our simple configurator to specify your requirements. You can also contact our sales department for advice on choosing the right connector and cable.
The best selling cable adaptors (pigtails) are in stock, contact us or order via e-shop.
Technical parameters can be found in the attached datasheet.
