Industrial 5G Router Robustel R5010-A with Accessories
The Robustel R5010-A is an industrial router that provides full access to 5G networks with complete backward compatibility for 4G and 3G technologies. Thanks to its compact design and support for the latest standards, it is an ideal solution for IoT applications requiring high speed broadband data transfer with minimal latency.
High Quality Signal Reception with SD-WAN Technology
The Robustel R5010 fully supports SD-WAN (Software Defined Wide Area Network) technology. It ensures intelligent traffic management and efficient use of available resources. The implementation of SD-WAN significantly improves 5G signal quality, optimizes data transmission, and demonstrably reduces the operating costs of your network infrastructure.
Application Examples for the R5010 Router
- Primary 5G Connectivity: An ideal solution for bandwidth-intensive applications such as self-service kiosks, ordering terminals, or digital signage systems
- 5G Backup in SD-WAN Networks: A cost-effective failover connection that guarantees application availability even in the event of a main internet service provider outage
- Temporary and Mobile Workspaces:Instant internet access for construction sites, exhibitions, or local events with easy deployment and centralised management.
Stable Connectivity with Dual SIM

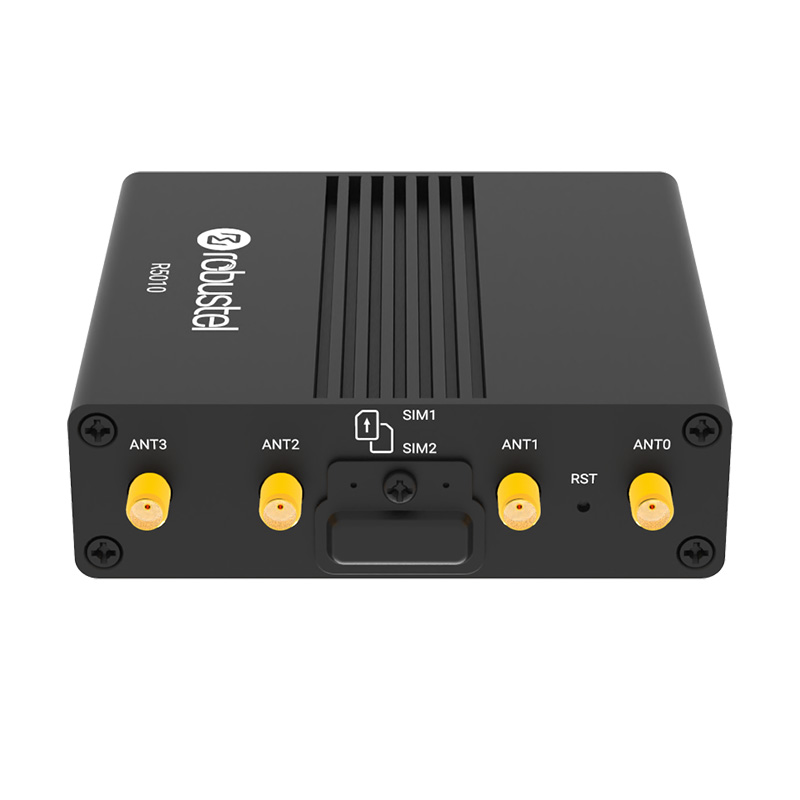

For critical applications where downtime is unacceptable, the R5010 is equipped with two Mini SIM card slots. The Dual SIM function enables immediate switching to a backup operator in the event of signal loss or network unavailability on the primary SIM card. This redundancy, combined with robust hardware, ensures uninterrupted connectivity for payment terminals, monitoring systems, and industrial automation.
Product Video
The product video provides information about the features of the Robustel R5010-A router and presents specific examples of its practical applications.
Flexibility with PoE Power and Compact Design

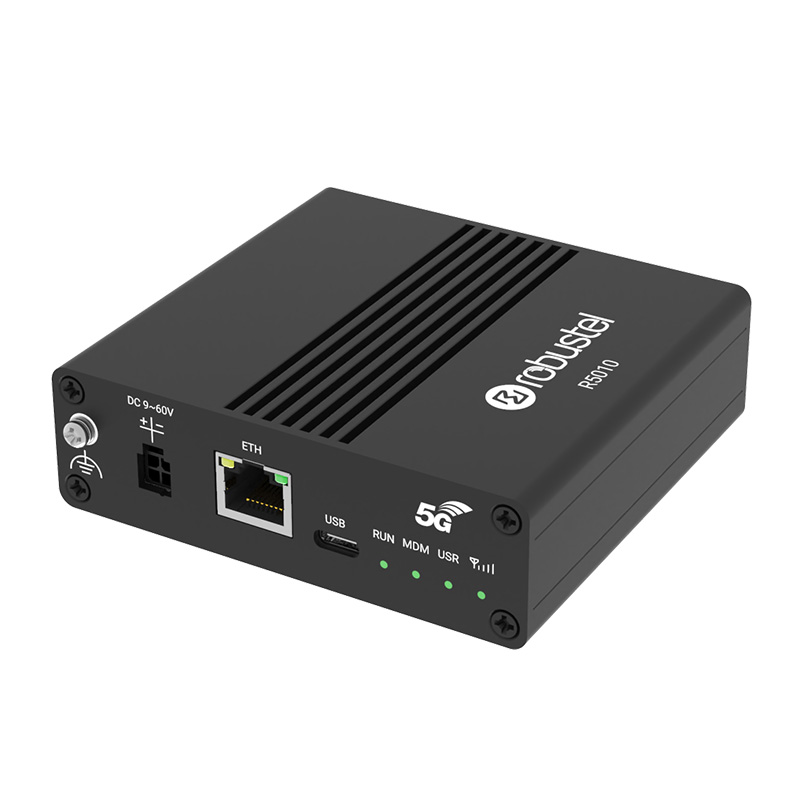

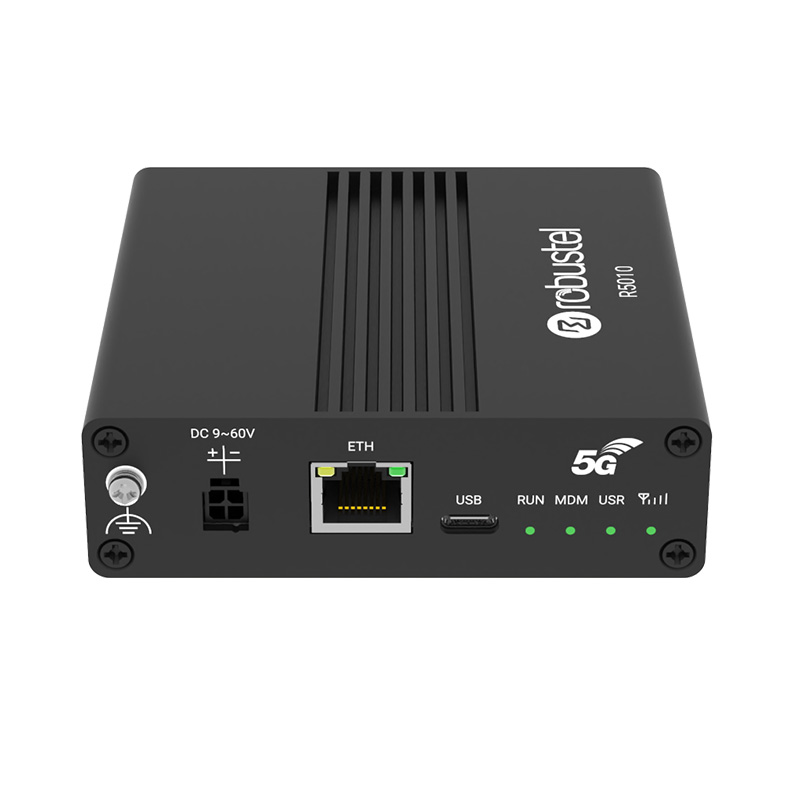

With compact dimensions of 100 × 94 × 30 mm, the router can be easily integrated into confined spaces such as outdoor kiosks or control cabinets. A major advantage is support for PoE (Power over Ethernet) according to the IEEE 802.at standard, simplifying installation in locations without access to a power outlet. The device is also equipped with a 2.5 Gbps Ethernet port and a USB 3.1 Type-C interface, enabling operation in USB modem mode.
Advanced Cloud Management and RobustOS
The device uses the Linux based RobustOS operating system, offering a wide range of networking protocols and VPN functions such as IPsec, DMVPN, and L2TP. For large scale device management, the RCMS (Robustel Cloud Manager Service) cloud platform enables remote configuration and diagnostics, eliminating the need for technician site visits and significantly reducing service costs.
Presentation Video R5010
Key Features of the 5G Router R5010-A:
- Support for 5G / 4G / 3G mobile networks
- 5G mobile interface compliant with 3GPP Release 16
- 1 × 2.5 Gbps Ethernet port
- PoE power support compatible with IEEE 802.at
- USB modem mode for versatile connectivity options
- Fully programmable operating system with SDK
- Multiple VPN options including DMVPN, IPsec, L2TP, and others
- Cloud platform for router management: RCMS
- Rugged metal enclosure with DIN rail and wall mounting options
Package Contents:
- 1 × 5G Router R5010-A
- 1 × DIN rail mounting kit
- 1 × Power supply
- 4 × Cellular antennas
Ethernet cable is not included in the package.
SECTRON recommends the following accessories:
AM-RT-ETH150-CAT5E – Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5 m
Technical parameters can be found in the attached datasheet.
