Industrial 5G WiFi Router Robustel R5020-B
The Robustel R5020-B is an advanced next-generation industrial router that delivers full 5G network support with automatic fallback to 4G and 3G. It represents the ideal choice for demanding IoT projects requiring high data throughput and low latency.
RobustOS Operating System
The device utilizes the RobustOS operating system based on Linux. This system is designed for maximum stability in industrial conditions and offers a wide range of easily configurable network protocols. Thanks to the SDK, it also allows customization of the router's functionality to your specific requirements.
R5020-B 5G Router Use Cases
- Industrial 5G router with PoE power supply: Provides reliable 5G connectivity for industrial applications with the advantage of PoE-PD (Power over Ethernet - Powered Device) power supply. Ideal for installations where a separate power source is not available, simplifying installation and reducing cabling costs.
- Primary and backup broadband connection: The device provides high-speed connectivity or serves as automatic backup. If Ethernet or Wi-Fi fails, the router immediately switches to mobile network to keep your services available without interruption
- High-speed industrial IoT: The router serves as fast 5G backbone connectivity for robotics, video, telemetry, and other data-intensive processes in factories and production halls. Compared to deploying fiber optics, you reduce deployment time while being able to manage security and updates at scale
- Vehicle 5G hub: Secure connectivity for onboard systems and Wi-Fi for passengers. Thanks to E-Mark certification and integrated GNSS for location tracking, the router is an ideal choice for managing your vehicle fleet.
Intelligent Cloud Management and Security
The key advantage is integration with the RCMS (Robustel Cloud Manager Service) cloud platform. This platform enables centralized management of the entire router network from a single location and significantly reduces operational costs for infrastructure maintenance.
Connectivity and Precise GNSS Positioning

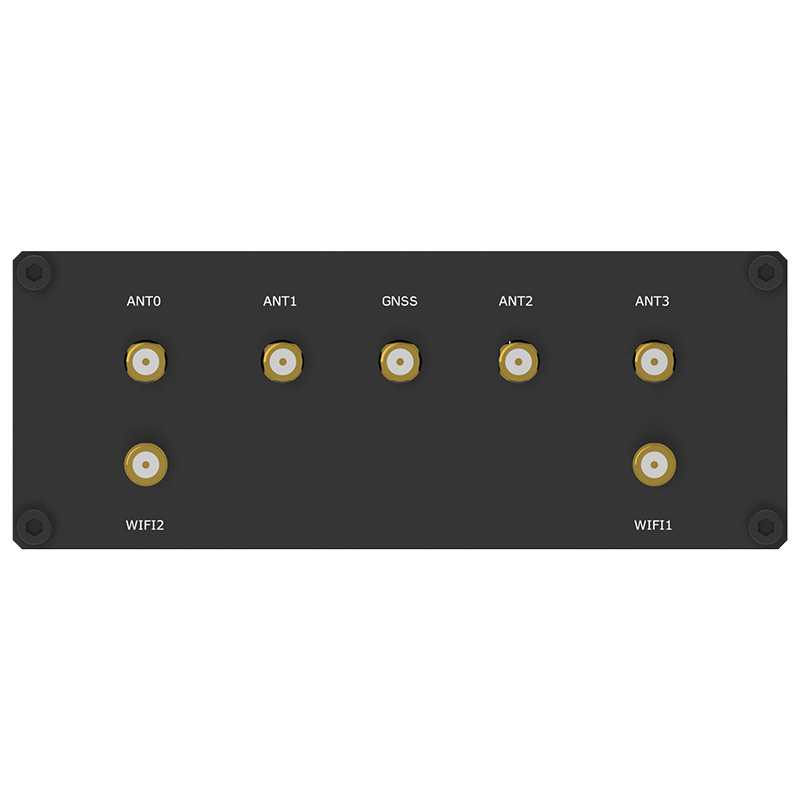

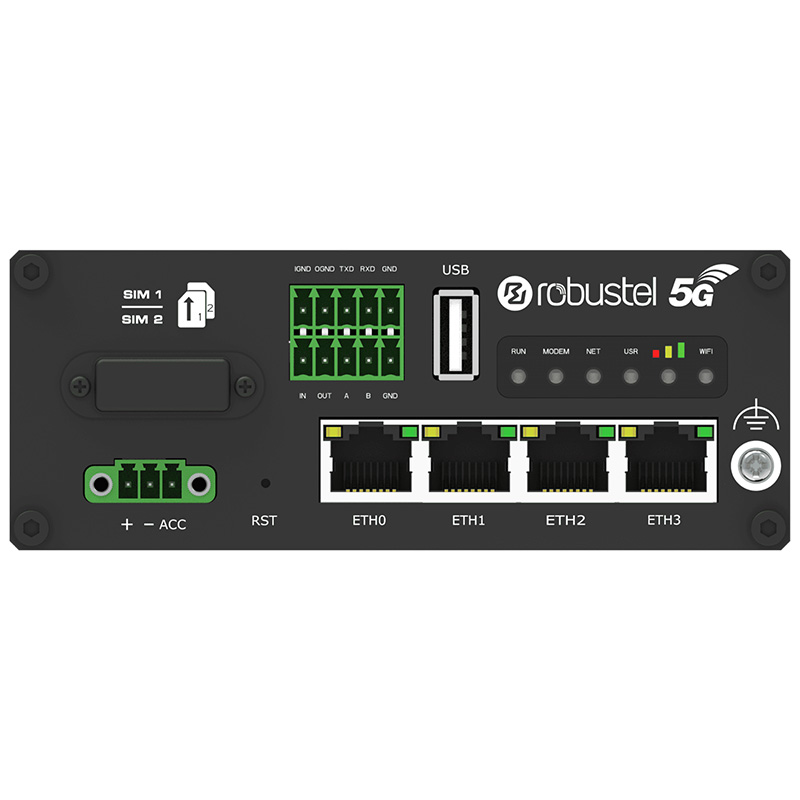

The Robustel R5020-B is equipped with dual-band Wi-Fi technology (2.4 GHz and 5 GHz) for stable wireless internet sharing. For wired connections, 4× gigabit Ethernet ports are available. The router also supports communication via RS-232 and RS-485 serial interfaces and is equipped with two SIM card slots for maximum connection redundancy. The equipment also includes a GNSS module for precise location determination.
Industrial design and durability

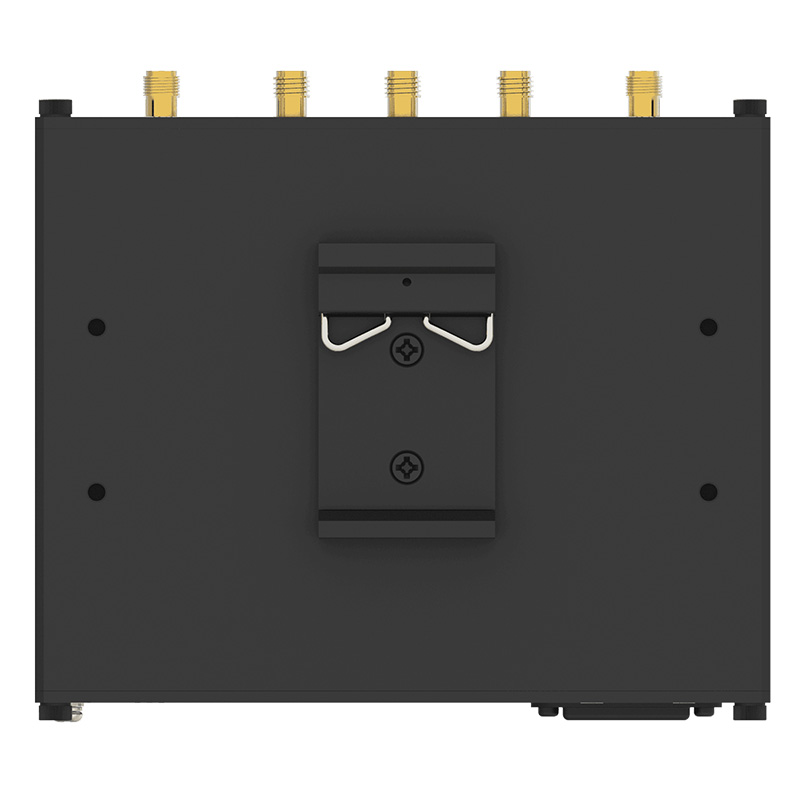

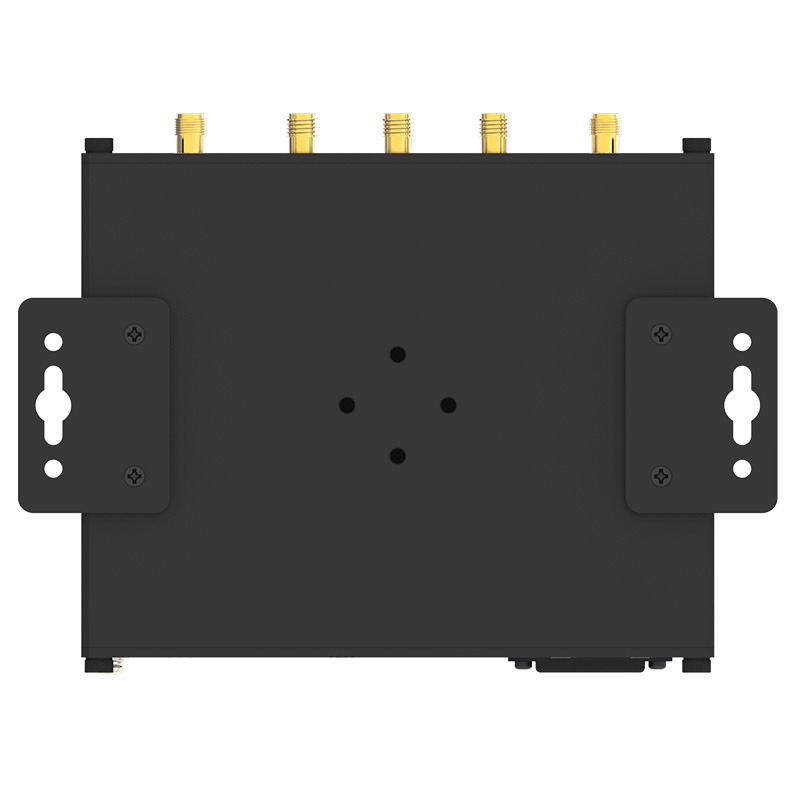

With its robust metal design and IP30 protection rating, the R5020-B is an ideal choice for harsh environments where resistance to dust and mechanical damage is required. Installation flexibility is enhanced by the option of wall or DIN rail mounting.
Product Video
The product video provides information about the Robustel R5020-B router features and presents specific use cases.
E-Mark Certification for Vehicle Use
The Robustel R5020 router has achieved E-Mark certification for vehicle use. This is mandatory safety certification for motor vehicles, systems, components, and technical components of member countries in accordance with European Union directives. Thanks to 5G technology, the router offers a simple and efficient solution for increasing internet connection speed using Wi-Fi technology. Therefore, it is ideal for vehicles transporting passengers. The CCTV (Closed-circuit television) system enables camera surveillance of space and display of camera footage on monitors in Full HD resolution.
PoE-PD Power Supply for Easy Installation
The R5020-B router supports PoE-PD (Power over Ethernet - Powered Device), which allows power supply directly via Ethernet cable. This feature significantly simplifies installation in industrial environments where a separate power source is not always available. PoE power supply also reduces the number of cables and increases the reliability of the entire system.
Reliable Backup and Advanced VPN Security
The R5020-B router offers an intelligent automatic failover system that ensures continuous connectivity even in case of primary connection failure. The device can be configured to use Ethernet or Wi-Fi connection as the main internet source, while immediately and seamlessly switching to backup 5G/4G mobile network in case of any outage. Robust IPsec, DMVPN, and OpenVPN protocols are available for secure connectivity.
Key Features:
- 5G / 4G / 3G mobile network support •
- Ethernet and Wi-Fi AC 2x2 MIMO (802.11 a/b/g/n/ac) support
- PoE-PD power supply support
- Fully programmable operating system with SDK
- Secure VPN tunnels: DMVPN, IPsec, OpenVPN and others
- Ideal for vehicles thanks to GNSS and E-Mark certification
- Free cloud management platform - RCMS
- Robust metal housing, wall or DIN rail mounting option
- Weight: 500 g
- Dimensions: 48 × 100 × 125 mm
The package includes:
- 5G router Robustel R5020-B
- DIN rail mounting kit
Ethernet cable and power supply are not included in the package.
SECTRON recommends purchasing the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m.-without connector, free end
More information can be found in the attached datasheet.
