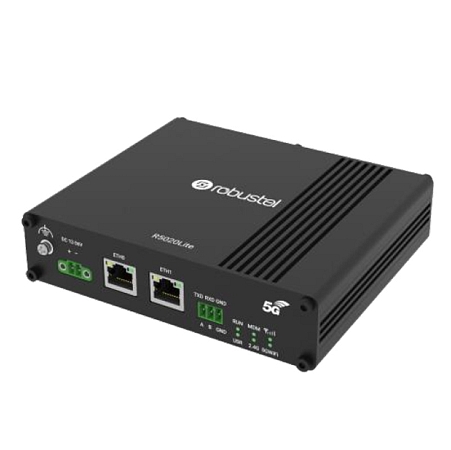

Robustel R5020 Lite - 5G IoT router
Very affordable industrial Robustel R5020 Lite is an IoT 5G router with support for 5G/4G/3G mobile networks.This rugged device offers state-of-the-art connectivity and is also designed to ensure connectivity to Internet of Things applications. It uses the RobustOS5 operating system, which is based on Linux and is designed for use in Robustel devices. This system contains network functions and protocols that can be easily configured. It therefore provides customers with excellent user comfort.
Another advantage is the RCMS platform. Designed to work with RobustOS, RCMS uncovers the true potential of Robustel products and expands the operator's capabilities in monitoring, managing and diagnosing network devices, thus minimizing operational cost.
Broadband Failover: The R5020 can be configured to use Ethernet or Wifi as primary internet and failover to 4G/5G in the event of an outage. This can help to provide resilience to outlets such as shops and small offices at a reasonable cost, and provide sufficient bandwidth for multiple users. IPSEC, DMVPN and Open VPN protocols can be used for connections to core networks.
Primary Broadband: Cellular networks can now provide unlimited 5G tariffs at very reasonable prices, offering hundreds of Mbps internet over the air. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favourable.
The device is equipped with: 2x Gigabit Ethernet port, 4x SMA antenna connector, 2x RP-SMA WiFi connector, 2x Mini SIM slot.
The router also supports communication using the RS-232 or RS-485 serial interface.
5G router Robustel R5020 is suitable for use in the field of industrial automation, autonomous robotics, camera systems, remote control of work machines and others.
• Global 5G/4G/3G cellular connections
• Supports Ethernet, WiFi 2x2 MIMO (2.412 - 2.472 / 5.15 - 5.825 GHz)
• Very cost-effective industrial 5G router solution
• Fully programmable Operating System with well documented SDK
• Multiple VPN options available including DMVPN & IPSEC
• Free cloud management platform – RCMS
• Robust metal enclosure with small footprint – DIN-rail + wall mount options
The product video will provide you with information about the features of the Robustel R5020 Lite router and present specific examples of use.
• 4x 5G cellular antenna
• 2x WiFi antenna
• Power supply
• Mounting Kit
• Connector 2pin
• Connector 3pin
Ethernet cable not included.
SECTRON recommends to buy the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, Grey, 1.5m
Technical parameters can be found in the attached datasheet.
