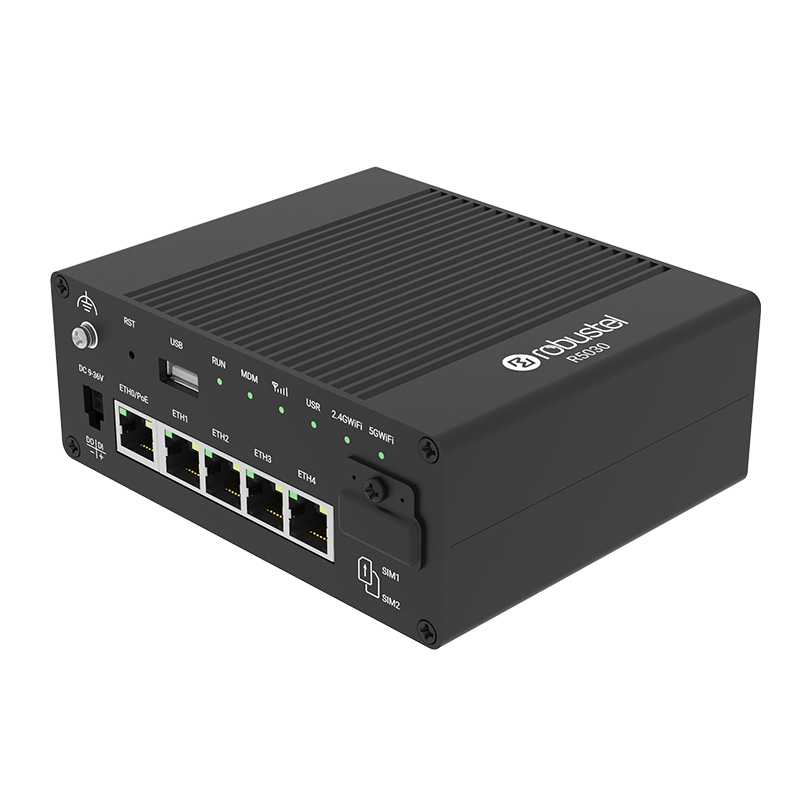

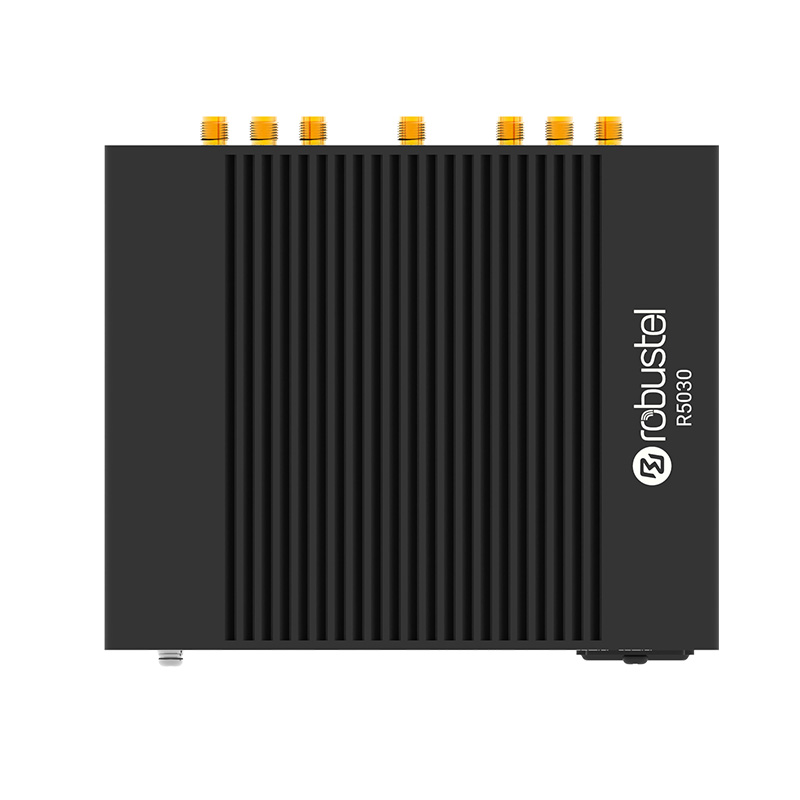

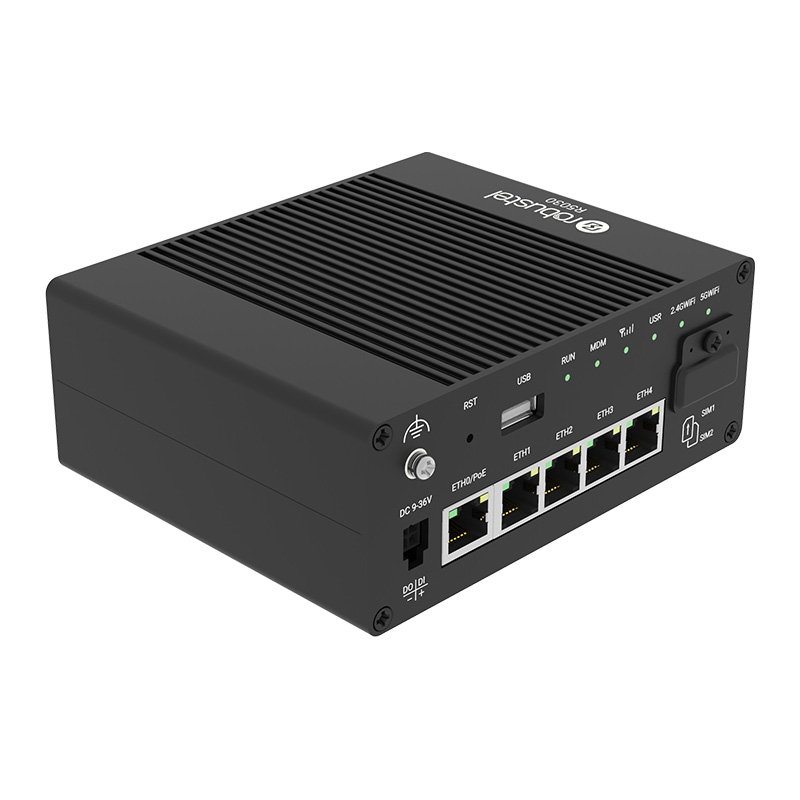

Industrial 5G Router Robustel R5030
The Robustel R5030-A-5G-A43EA is a high-performance industrial 5G router designed for demanding environments where a combination of multiple communication technologies is required to ensure stable, flexible, and reliable connectivity.
Connectivity and Communication Technologies
The router supports 5G/4G/3G connectivity with global bands (3GPP V15/16) and dual SIM cards, enabling automatic failover and uninterrupted connection. Dual-band Wi-Fi 6 (operating in both AP and Client modes) provides high capacity and speed for local networks, making it ideal for environments with a high concentration of users. The integrated GNSS module (GPS, Galileo, GLONASS, QZSS, BDS) allows for precise location tracking in real time, while digital inputs and outputs (1× DI, 1× DO) facilitate seamless integration with industrial systems.
Application Examples
The versatile Robustel R5030-A-5G-A43EA with Wi-Fi 6 and GNSS is designed for maximum efficiency across a wide range of IoT applications:
- Passenger Wi-Fi: Buses, trains, and vehicle fleets requiring internet access for passengers with captive portal options.
- Branch and Enterprise WAN: 5G as the primary connection or backup for wired broadband, with automatic failover.
- Smart Transportation and Logistics: Real-time vehicle telemetry and tracking using integrated GNSS.
- Public Infrastructure: Kiosks, ticket vending machines, signage, and public Wi-Fi access with secure captive portals.
Network Interface and Power Supply

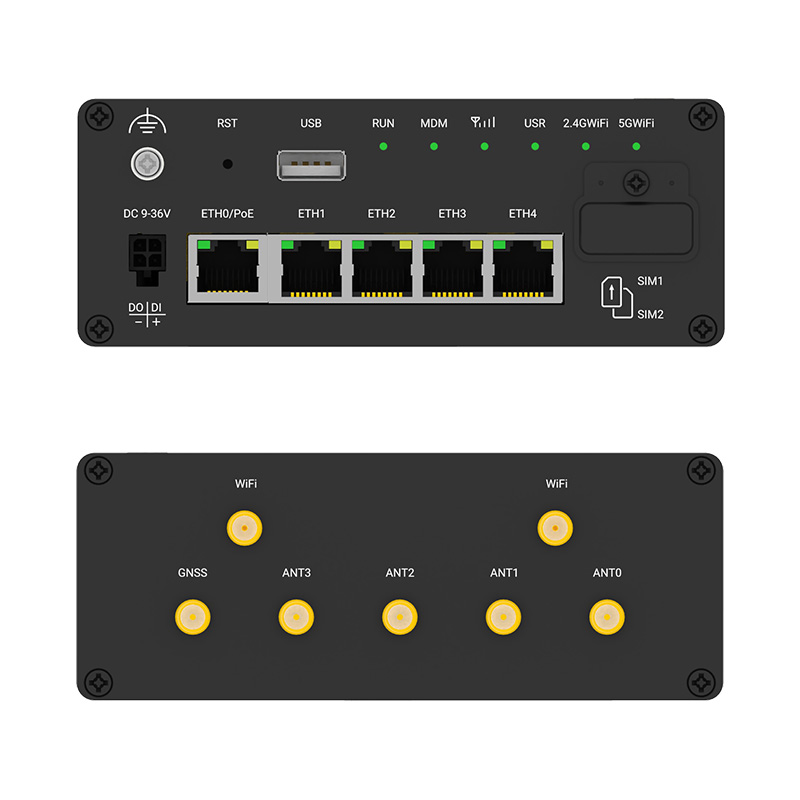

The network interface includes five gigabit Ethernet ports, configurable as WAN or LAN. The ETH0 port supports PoE-PD, allowing the router to power connected devices without additional power sources. The router can be powered via 9–36 V DC or PoE-PD (42.5–57 V), making it suitable for both industrial and transportation applications.
Design and Installation

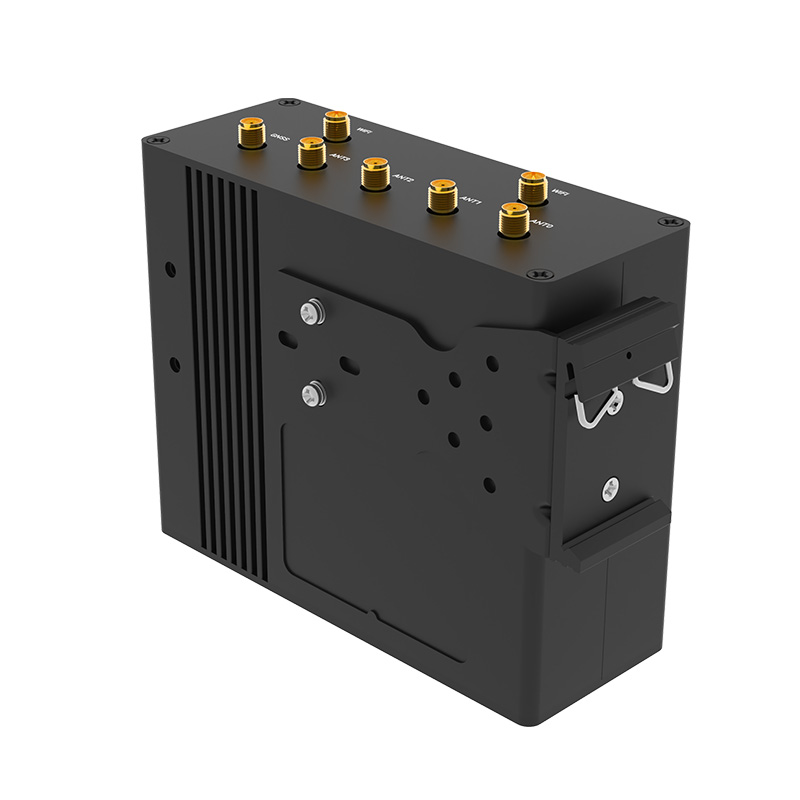

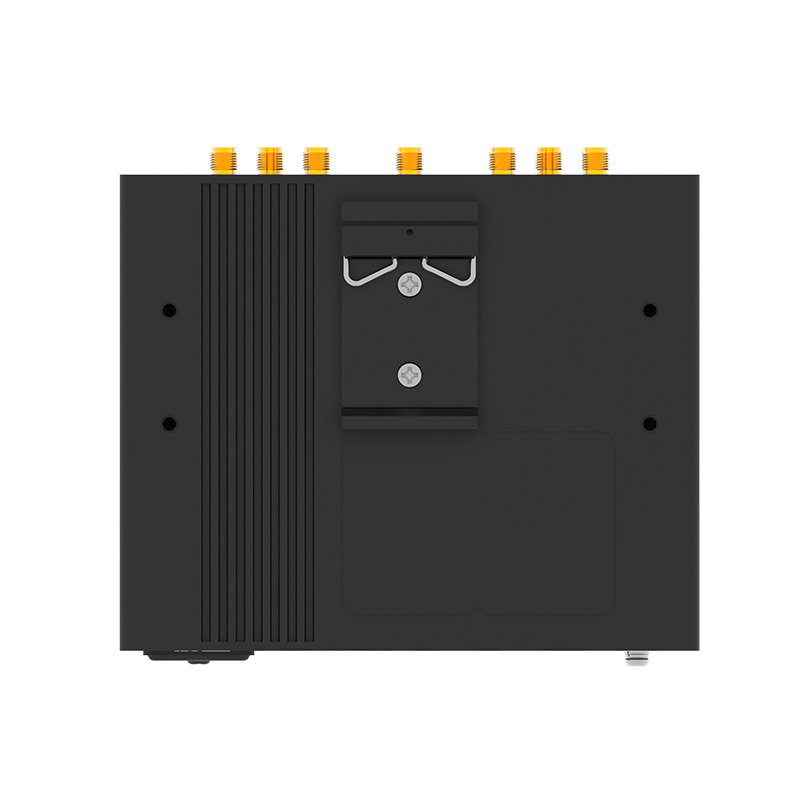

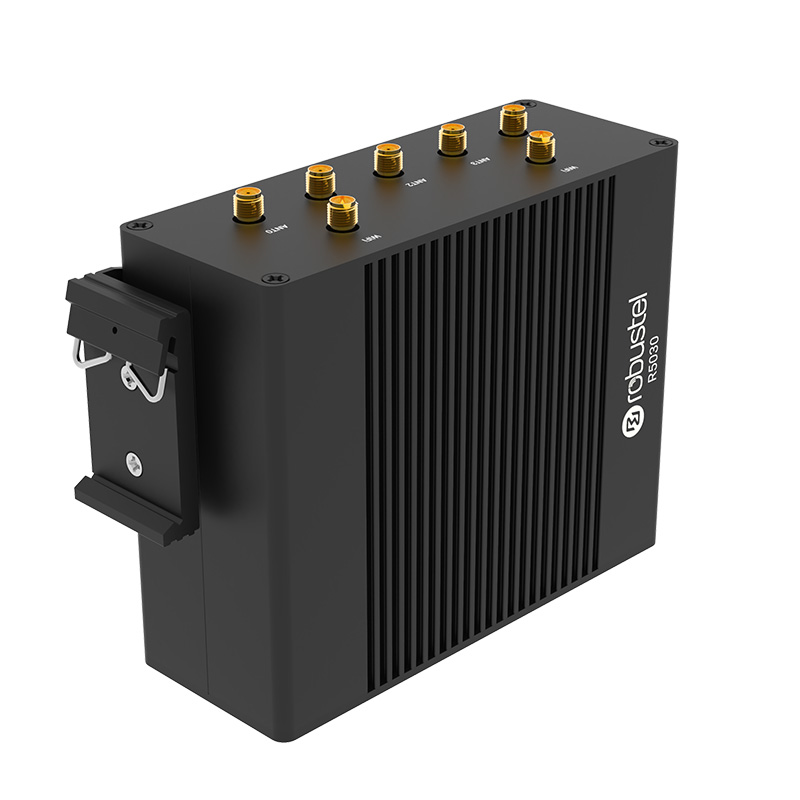

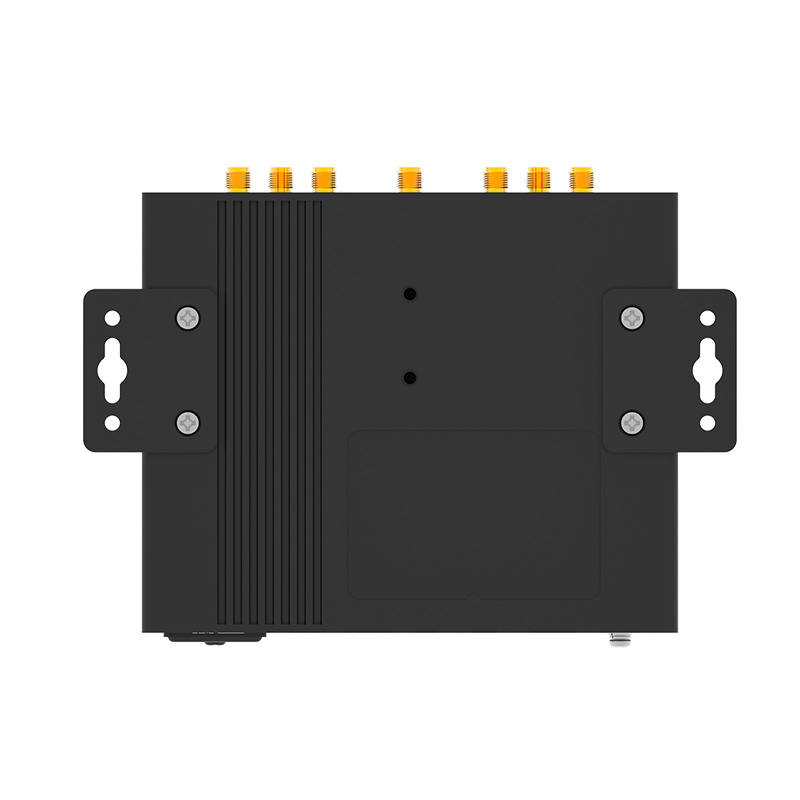

The device is housed in a compact metal enclosure with flexible mounting options—on a DIN rail or wall—for easy and robust installation in cabinets and vehicles. The IP30-rated metal housing and operating temperature range of –25°C to +70°C ensure durability even in extreme conditions.
Data Security
Maximum data security is ensured through support for advanced VPN protocols and encryption technologies, including IPsec, OpenVPN, WireGuard, GRE, and DMVPN.
Cloud Service (RCMS)
Operation and management are simplified using the Robustel Cloud Manager Service (RCMS), which enables centralized monitoring, configuration, data collection, and remote updates for a large number of devices, minimizing operational overhead. A three-month free trial of RCMS is included.
Key Features
- CPU/OS: Dual-core ARM Cortex A53, RobustOS
- Ethernet: 5 × gigabit ports, PoE-PD support on ETH0
- Wi-Fi: Dual-band Wi-Fi 6 (802.11a/b/g/n/ac/ax)
- GNSS: GPS, Galileo, GLONASS, QZSS, BDS
- I/O: 1 × DI, 1 × DO
- USB: 1 × USB 2.0 port
- Power Supply: 9–36 V DC; PoE-PD 42.5–57 V
- Dimensions: 49 × 105 × 128 mm
- Weight: 581 g
- Enclosure: Metal, IP30-rated
- Operating Temperature: –25°C to +70°C
- Security/VPN: IPsec, OpenVPN, WireGuard, GRE, DMVPN
- Management: SMS, RCMS cloud
Package Includes:
- 1× Robustel R5030-A 5G Router
- 1× Wall Mounting Kit
- 1× Power Plug Adapter
Ethernet cable and power supply are not included.
SECTRON recommends purchasing the following accessories:
AM-RT-ETH150-CAT5E - Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5m
AM-RT-FPOWR - Power supply 12V / 1A, L=1.4m.-without connector, free end
More information can be found in the attached datasheet.
