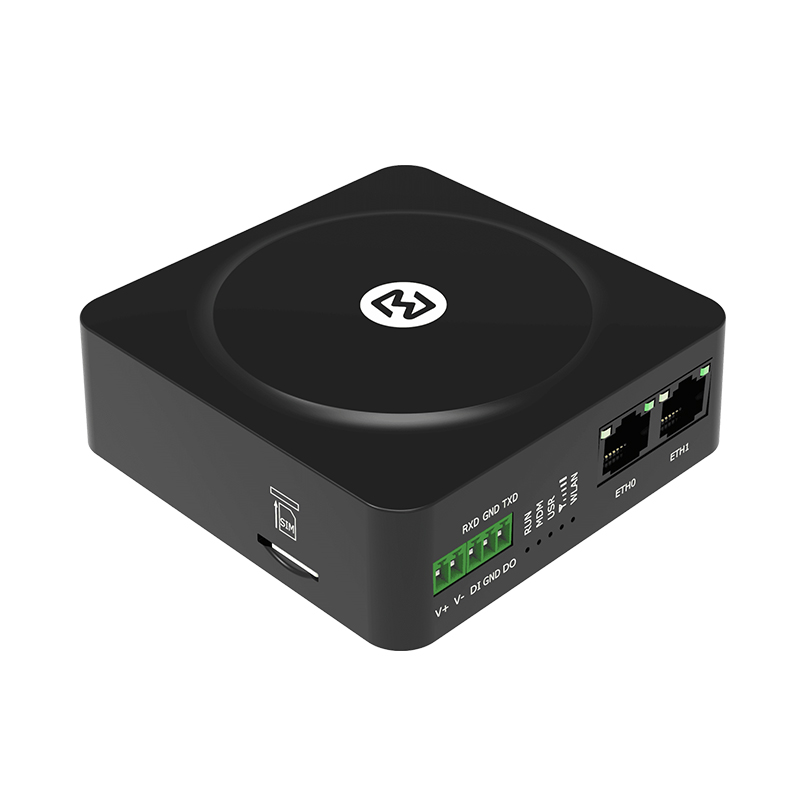

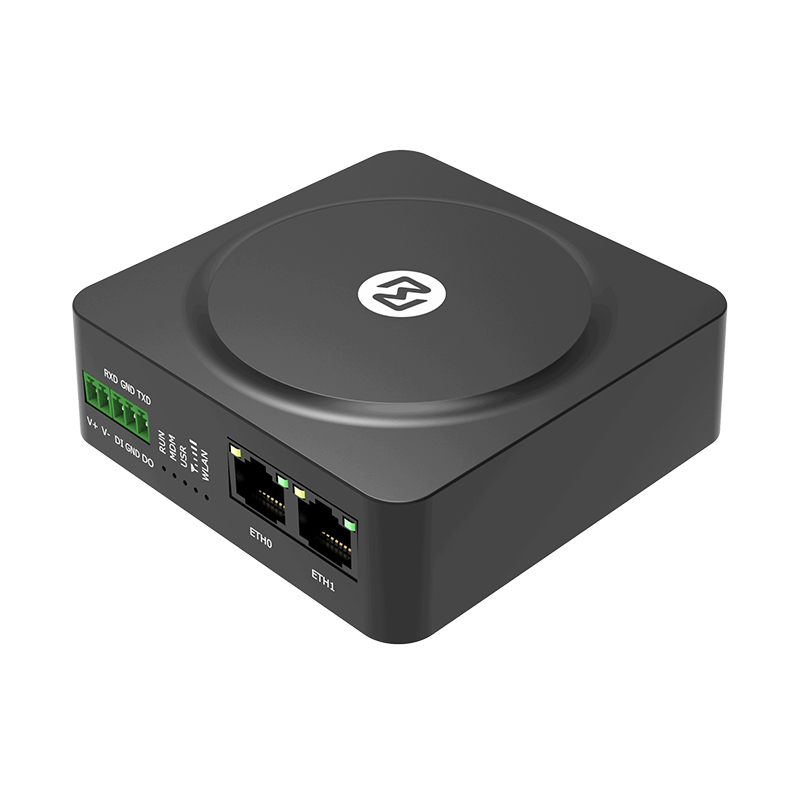

Industrial LTE Router Robustel R1511 with Wi-Fi and RS-485
The Robustel R1511 is an industrial Wi-Fi router designed for 2G/3G/4G (LTE Cat. 4) technologies. It features two Ethernet ports (LAN & WAN) and can communicate with metering systems via an RS-485 serial interface. This makes it an ideal choice for secure and reliable connectivity of both Ethernet and serial devices.
Note: The R1511 router is intended for use in the EMEA and SEA regions.
Flexible Connectivity and Dual Data Transmission
The router supports the 802.11 b/g/n Wi-Fi standard and allows data to be sent to a remote server in two ways: via a mobile network (2G/3G/LTE Cat. 4) or through a local Wi-Fi network. In the event of a primary connection failure, the automatic failover function ensures an immediate switch to backup paths (4G/3G/2G, Ethernet, or Wi-Fi), ensuring maximum network availability and eliminating downtime.
Compact Design and Application Examples
With its compact dimensions of 91.5 × 91.5 × 31.5 mm, the router is ideal for installation in space-constrained locations:
- Energy Metering and Switchboards: The router is suitable for remote meter reading and switchboard monitoring. It allows electricity meters, circuit breakers, or inverters using the Modbus protocol to connect to the internet without costly hardware replacements. Data is transmitted to EMS/SCADA systems, and the RCMS platform provides an efficient tool for bulk management and remote updates across the entire network.
- Environmental Monitoring: The router serves as a communication interface for water level sensors and weather stations connected via RS-485. It ensures the transmission of telemetry data over LTE, performs Modbus RTU to TCP conversion, and enables complete remote monitoring through RCMS cloud management.
You can read an article about our Robustel R1511 on our blog.
Modbus Support
Supports Modbus RTU/TCP protocols and transparent TCP/UDP modes, simplifying the integration of serial devices into IP networks.
RobustOS Operating System
Utilizes a Linux-based OS designed for maximum reliability in IoT applications.
Industrial Network Security
Ensures secure connectivity with various VPN options (IPsec, WireGuard, OpenVPN).
Centralized Management with RCMS
Fully integrated into the Robustel Cloud Manager Service for remote management, monitoring, and diagnostics, significantly reducing operating costs.
Quick Pitch video
Key Features:
- Network Support: 2G, 3G, 4G (LTE Cat. 4)

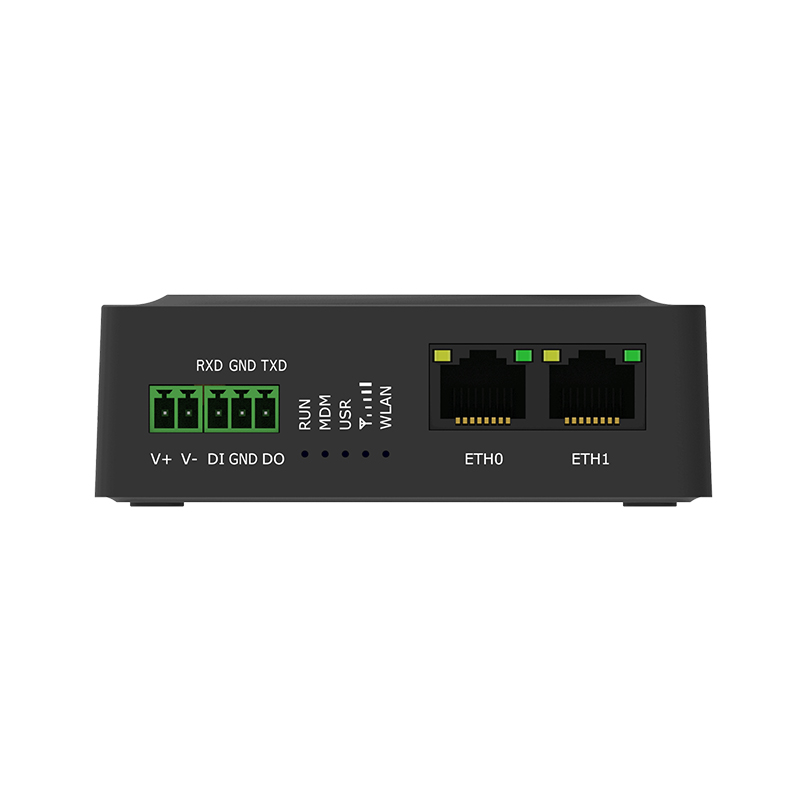

- Interfaces: 2× Ethernet (LAN + WAN), 1× RS-485 serial port
- Protocols: Modbus, TCP/UDP, PPPoE
- Wi-Fi: 802.11 b/g/n standard (AP and Client modes)
- Operating System: RobustOS (Linux-based)
- Dimensions: 91.5 × 91.5 × 31.5 mm

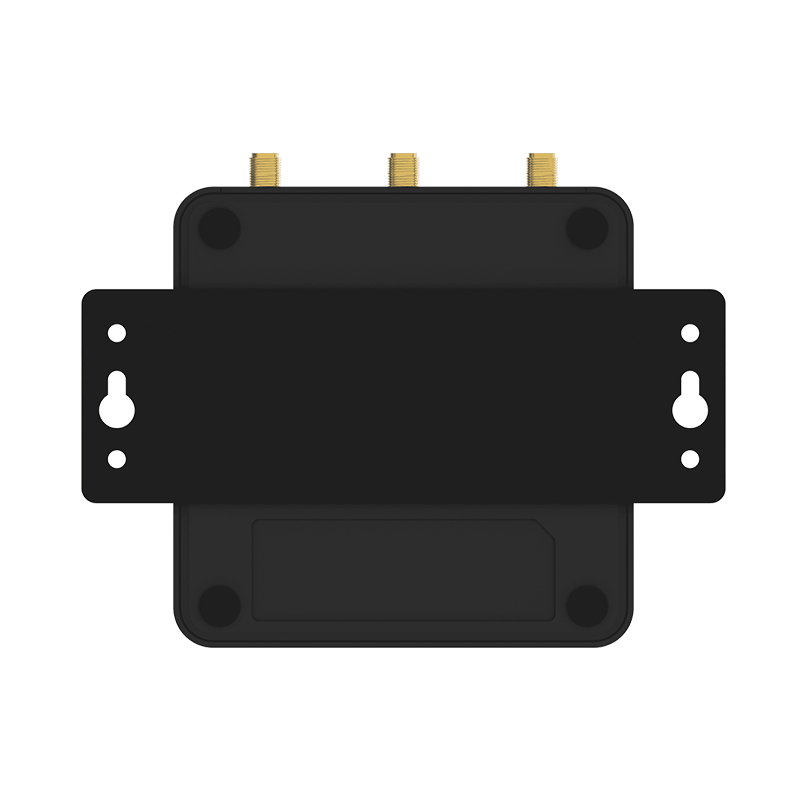

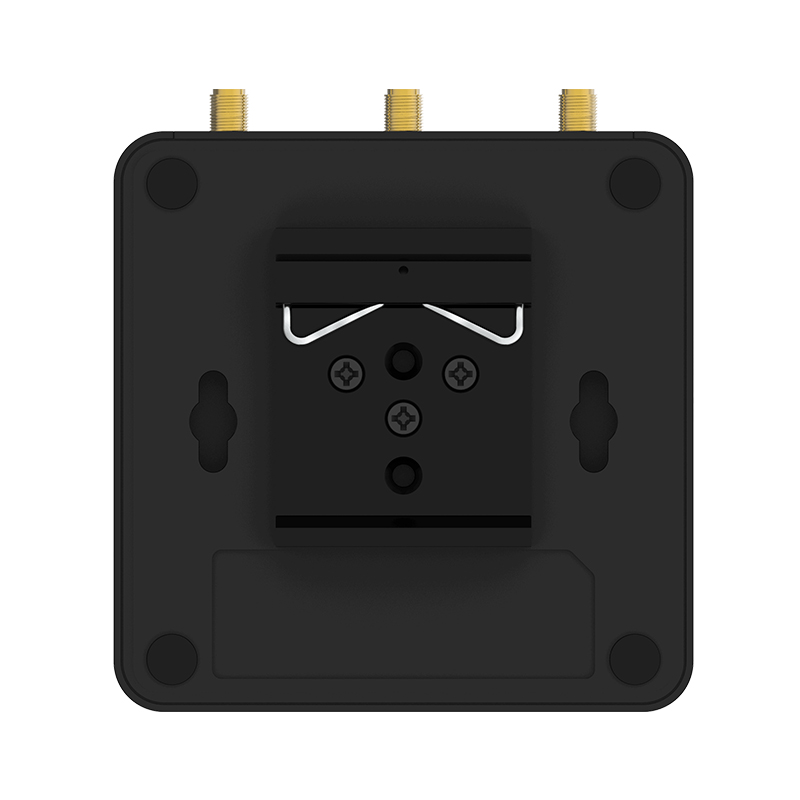

- Mounting: Wall and DIN rail mounting options
Package Contents:
- Robustel R1511 Router
Note: Ethernet cable and power supply are not included.
SECTRON recommends purchasing the following accessories:
- AM-RT-ETH150-CAT5E – Ethernet cable CAT5e, RJ45/RJ45, grey, 1.5 m
- AM-RT-FPOWR – Power supply 12 V / 1 A, length 1.4 m, without connector, open end
More information can be found in the attached datasheet.
