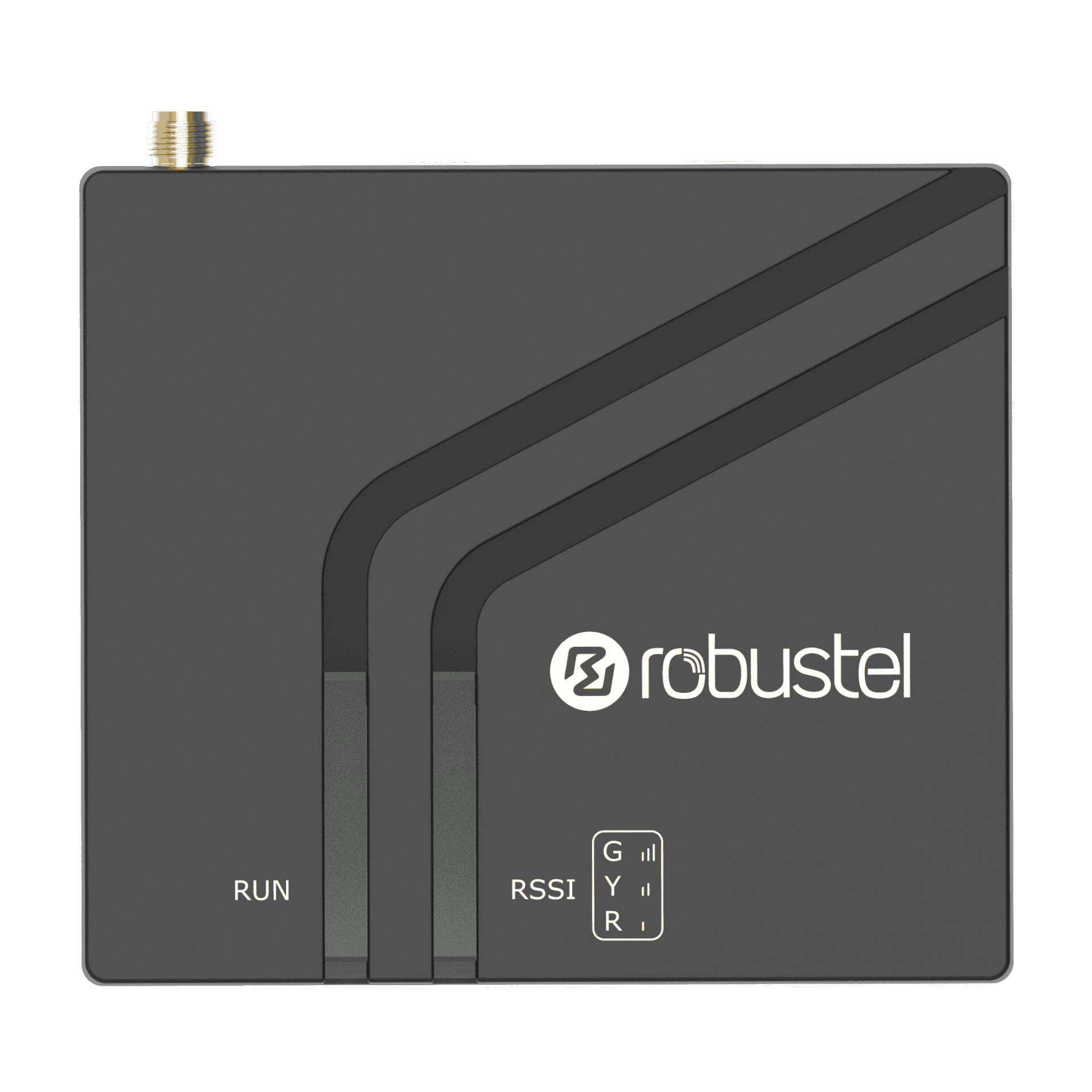

Not every machine today is equipped with an Ethernet port to immediately send data to the cloud. The Robustel M1200 is therefore designed as a bridge for devices that communicate via serial interfaces such as RS-232 and RS-485. The modem works seamlessly with the Modbus RTU protocol, allowing it to collect data from sensors or controllers, package it, and securely transmit it to the network.
With digital inputs (DI), it can count pulses from meters, while digital outputs (DO) enable remote control of connected equipment. In essence, it gives a voice to devices that would otherwise remain digitally isolated.
Key Features at a Glance
At first sight, the M1200 stands out with its rugged industrial design (IP30 protection rating) and compact dimensions, allowing it to fit even into crowded control cabinets. What makes it particularly compelling, however, are its core capabilities:
- Dual SIM: Connection redundancy for mission-critical applications.

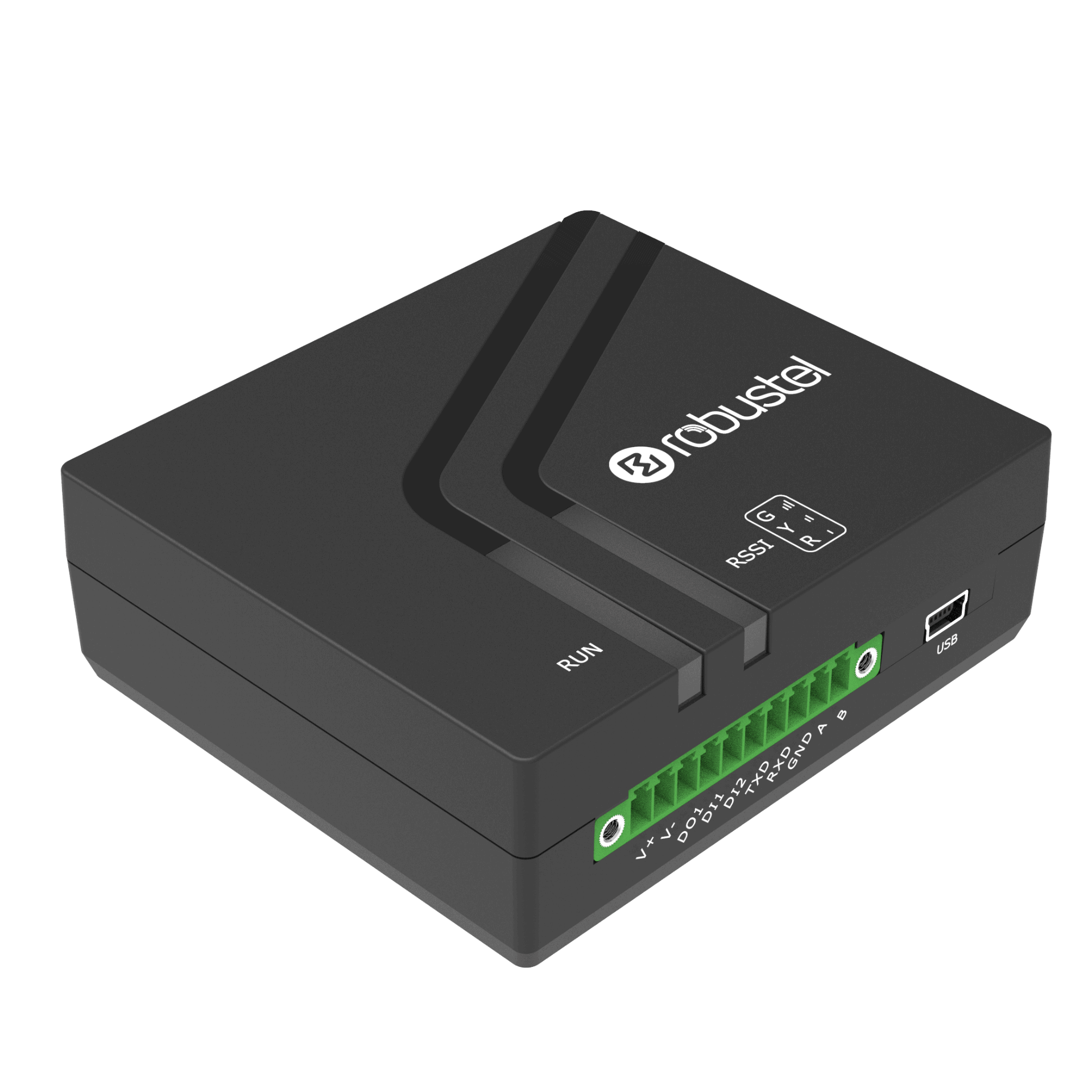

- Wide range of interfaces: 1× RS-232, 1× RS-485, 2× digital input (DI), and 1× digital output (DO).
- Flexible power supply: Wide 9–36 VDC input range.
- Operating temperature: Designed to withstand extreme conditions from –40 to +75 °C.
NB-IoT, Cat M1 or LTE? Choose the Right Model
Connectivity is a key consideration. The Robustel M1200 is available in several variants to match specific project requirements.
M1200-4L: Intended for applications requiring higher data throughput (standard 4G/LTE Cat 4).
M1200-4M: Designed for projects with limited power availability and low data volume requirements. It supports NB-IoT and LTE Cat M1, enabling energy-efficient data transmission, for example in scheduled intervals. This makes it suitable for solar-powered installations or remote locations where power efficiency and reliable connectivity under challenging radio conditions are essential.
Practical Applications and Case Studies
The Robustel M1200 is more than just a connectivity device. With support for protocols such as Modbus RTU to TCP and VPN tunnels (IPsec, OpenVPN, GRE), it is capable of handling complex industrial scenarios.
Smart Metering (Energy, Water, Gas)
A typical use case is remote meter reading of water or gas meters located in basements and utility shafts. This is where NB-IoT demonstrates its key advantage over standard LTE—reliable connectivity even in underground spaces or behind thick walls. Thanks to a higher link budget and signal repetition, the technology offers approximately 21 dB greater sensitivity (MCL up to 164 dB), ensuring stable communication where conventional mobile signals often fail.
The M1200-4M model with NB-IoT support is well suited for this purpose. The gateway reads data from meters via digital inputs (pulse counting) or serial communication and transmits it to the cloud at defined intervals.
Legacy Device Integration (PLC and Industry)
Many production lines still rely on older PLCs that communicate exclusively through RS-232/485 interfaces without IP connectivity. The M1200 serves as a converter and gateway in such cases. Connected PLCs communicate via RS-485, and the device encapsulates the data into MQTT or forwards it transparently via TCP/UDP to a server.
This approach enables even decades-old machines to integrate with modern platforms such as Microsoft Azure or Cumulocity.
Smart Agriculture
In agricultural environments, monitoring alone is often not sufficient—remote control is equally important. Using digital outputs, operators can send commands via SMS or a mobile application to switch a relay on the M1200, for example to activate a pump.
At the same time, the gateway monitors parameters such as soil moisture and sends alerts if predefined thresholds are exceeded.
Remote Management and RCMS
Centralized management is essential for larger deployments. RCMS (Robustel Cloud Management Service) allows real-time monitoring of devices, bulk firmware updates, and remote troubleshooting without on-site intervention.
For smaller installations, devices can also be managed through a web interface, CLI, or SMS commands, which is particularly useful if data connectivity fails while GSM service remains available.
Conclusion
The Robustel M1200 demonstrates that industrial IoT does not require large, complex routers. Its versatility is further enhanced by the USB interface (CDC/RNDIS support), which allows it to be easily connected to a PC or laptop and used as a standard LTE modem for internet access.
Whether connecting a vending machine, a solar power plant, or an industrial production line, the M1200 provides a balanced combination of reliable modem functionality and intelligent gateway capabilities in a compact form factor.
