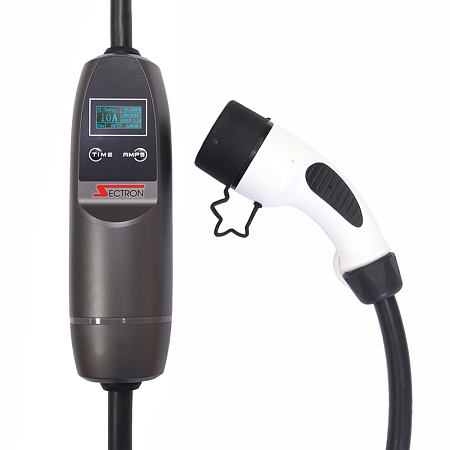

Three-phase charging cable designed for charging electric vehicles, length 7 m
Have you bought an electric car? Then you need a correct, high-quality power cable to make charging your electric car from public chargers or at home as easy as possible. Thanks to this cable, you will be able to charge a car with a Type 2 connector from three-phase CEE 5-pin socket 400 V / 32 A. Degree of protection IP65 (compliant with IEC62752 CE standards) allows use in outdoor environments.
Included in the package:
• Portable charger
• Bracket for wall mounting
• Bag
Cable
Three-phase charging cable designed for charging electric vehicles with a maximum current of 32 A and an output of 22 kW. This charging station is also suitable for charging Plug-in* Hybrid*s. This product is suitable as a home hybrid charger, as most of these cars have an on-board charger with an output of 7.2 kW per phase and thus 22 kW with a three-phase connection.
The EV cable is a type of flexible cable for connecting an electric vehicle to a charging station equipped with Type 2 / Mennekes connectors to three-phase 400 V socket. The cable is made of high quality copper with excellent conductive properties. The insulating material of the TPE cable is soft and has high strength.
Display
The charger has a practical display that shows the rated current, voltage, current charging power, charger temperature, charging time and already charged power to the car. The charging current can be set according to the available power input and the type of car. The start of charging can be delayed according to the current consumption of the household / company or according to the low / high tariff. The charger contains an electricity meter showing the electricity consumption each time the car is charged. The information can serve as a basis for reimbursing charging the company's vehicle from a private electrical connection.
Memory function
The charger remembers the value of the transferred energy, which is shown in the upper right corner of the display, even after it is disconnected from the power supply (up to a maximum of 999.99 kW.h).
The charger contains an electricity meter, which shows the electricity consumption each time the car is charged. This information can be used for claiming the charging expenses for a company car when it's charged from a private electrical connection. The individual charging cycles and the values of transferred energy can be displayed in the menu and also deleted at any time.
In the case of a power failure, the charging will resume once the power is back up.
The cable length is 7 meters, measured from the control electronics to the Mennekes Type 2 connector. The set includes a bracket for wall mounting.
When you buy this portable charger, you will receive a bag from us as a gift.
We also offer portable charging stations with cable lengths of 10 meters (EL-CEE5T2-3F32A-10M) and 5 meters (EL-CEE5T2-3F32A-5M).
Charging cable parameters:
- Cable 5 × 6.0 mm² + 2 × 0.5 mm²
- The length of the charging cable is 7 meters
- Input: 230V/400V, 50 Hz, 6A-32A (3 phases)
- Output: 230V/400V, 50 Hz, 6A-32A (3 phases)
- Charging power range (AC): 3.5-22 kW
- Connector towards the vehicle: Type 2 IEC62196-2 Female plug (DSIEC2e-EV32P)
- Connector towards the socket: CEE 400V 32A 5-pin
- Circuit breaker RCD IΔNAC = 30 mA, IΔN DC = 6 mA
- Rubber connector cover
- Operating temperature -25 °C ~ 50 °C
- Weight 6.3 kg
- Dimensions: 29 cm × 9 cm
- Standards EN 61851-1:2019
EN 62752:2016 + A1:2020
EN 61000-6-4:2007 + A1:2011
EN 61000-6-2:2005
EN 61000-3-11:2000
EN 61000-3-12:2011
RoHS
- IP65 protection (meeting IEC62752 CE standards)
- Setting of delayed charging (steps 0-9 hrs.)
- Setting of charging current (steps 6-32 A)
ATTENTION: To use the 22 kW/32 A charger for maximum power, it is necessary to have a minimum circuit breaker in the main switchboard of 40 A. For the 11 kW/16 A charger, a minimum circuit breaker of 20 A is required in the main switchboard of the house.
Overview of compatible adaptors for AC charger 22 kW
Compatible cars:
The SECTRON AC CHARGER portable charging station is compatible with types of electric cars having a Type 2 socket that meets the European standard IEC62196. This connector is the standard connector of all electric cars sold in the EU. The list of vehicles is growing every day.
