Product code: AO-SMA-KM8RA
Producer: SECTRON

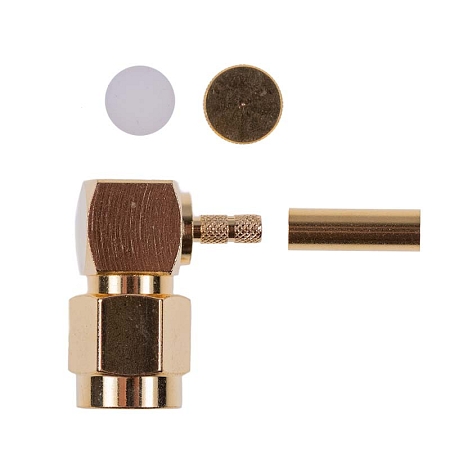

SMA R/A PLUG FOR RG178

Sale
Product code: AO-SMA-KM8RA
Producer: SECTRON

SMA R/A PLUG FOR RG178

This SMA (m) connector is designed for coaxial cable RG178 with a diameter of 1.80 mm.

For verification price, please contact us sales@sectron.cz or on the phone +420 556 621 020.

Price on request

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

SMA (m) connector for RG178 cable

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This SMA (m) connector is designed for coaxial cable RG178  with a diameter of 1.80 mm.

Parameters:

• Type: Male (m)
• Mating cycles: 500
• Operating temperature: - 65 °C to + 165 °C
• Weight: 4.9 g

Technical parameters can be found in the attached datasheet or contact our sales department.

Parameters

Cabel RG178 Execuion Cable angled
