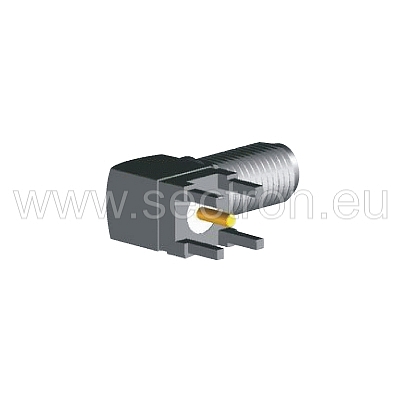

SMA-RP (m) jack R/A, THD

Product code: AO-SRPMT-01 /Manufacturer: SECTRON


2.81 EUR Without VAT

In stock When do I get the item?

Price from 10 pieces 2.24 EUR

Price from 100 pieces 2.02 EUR

guarantee 24 months
Name and surname*
By submitting the form, you agree to the privacy policy.
Your name and surname*
Send e-mail*
By submitting the form, you agree to the privacy policy.


Connector SMA (m) R/A, THD

These are high-frequency connectors with screw connection mechanism is light weight, compact and vibration proof design. The characteristic impedance of the connectors is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.

This is a type of connector that is designed for mounting on a PCB using the THD method.


• Type: Male (m)
• Impedance: 50 Ω
• Maximum frequency: 0-18 GHz
 Mating cycles: 500 cycles
• Operating temperature: - 65 °C to + 165 °C
• Weight: 5.81 g

Material and finish:

• Body: brass / gold plated
• Nut: brass / gold plated
• Contact: brass / gold plated
• Insulator 1: Teflon / -
• Insulator 2: Teflon / -
• Cover: brass / gold plated

Technical parameters can be found in the attached datasheet or contact our sales department.


Connector: SMA-RP(m)
