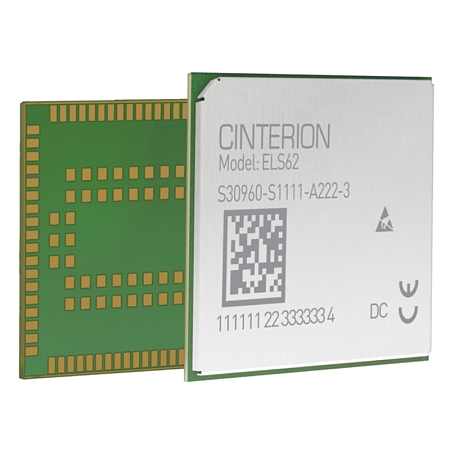

Telit Cinterion ELS62-E Rel.2
Cinterion ELS62-E Rel.2 is a wireless LTE module (Cat 1bis) from Telit Cinterion that offers LTE connectivity with 2G network backup. This module supports LTE Cat.1bis and 2G/3G connections, enabling efficient data transmission and voice services including VoLTE and CSFB. With transmission speeds of up to DL: max. 10 Mbit/s and UL: max. 5 Mbit/s., it provides a stable and reliable connection for IoT applications such as security systems and smart metering.
For classic LTE Cat.1, the standard requires the connection of 2 receiving antennas, in the case of Cat.1bis only one antenna is sufficient. The module is equipped with a wide range of advanced security functions ensuring the safety and reliability of data transmission, such as secure boot, secure communication using TLS 1.3/DTLS 1.2 secure mode, secure keystore, secure debug interfaces, firmware encryption and secure credential preloading.
The industrial design offers the long life and stability of 4G networks and continuous coverage in areas where the LTE network is not available. With frequency bands including LTE and 2G/3G and interfaces such as USB, digital audio interface and DUAL SIM, the Cinterion ELS62-E Rel.2 module enables flexible and wide use in various environments.
Cinterion ELS62-E Rel.2 is intended for EMEA (Europe, Middle East, Africa) regions.
You can read more about the Cinterion ELS62 module on our blog.
Key Features:
• Frequency bands: LTE: FDD-LTE Rel 13: 1, 3, 7, 8, 20, 28
EGPRS Rel 9: 900, 1800 MHz
• Voice services with VoLTE and CSFB
• Interface: USB, digital audio interface (PCM and I2S), dual SIM (built-in SIM card option), SPI, I2C, GPIO
• Certification: GCF, RED, RCM, Anatel, RoHS, CCC, SRRC, NAL, CTIA
• Dimensions: 27.6 × 25.4 × 2.2 mm
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
