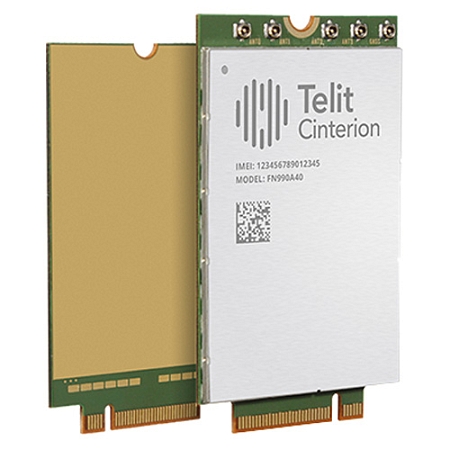

Telit Cinterion FN990A40
The Telit Cinterion FN990A40 is a wireless industrial 5G module in the M.2 format, which facilitates its integration into various devices and systems. Using 3GPP Release 16 technology, this module offers 5G connectivity with support for sub-6 FDD and TDD bands for global deployment, providing maximum deployment flexibility. PCIe Gen 3 and USB 3.1 Gen 2 interfaces enable high-speed data transfer.
The Telit Cinterion FN990A40 5G module with compact dimensions and powerful functions is a reliable choice for industrial (M2M) applications that require reliable wireless connectivity. It is also used in industrial routers and gateways, surveillance devices and video streaming. It can be integrated in both indoor and outdoor applications.
The FN990A40 module has a 5G FR1 frequency bandwidth of 200 MHz and is intended for use in North America, EMEA, APAC.
Key Features:
• Technology 4G/5G Rel.16
• 4G Cat 20 to 7 CA for FN990A40
• 3G: HSPA+ Rel 8
• 5G FR1 bandwidth: 200 MHz, 3CC CA DL
• Windows and Linux driver support.
• USB 3.1 Gen 2 support
• PCIe Gen3 support
• Operating temperature: -40 °C to +85 °C
• Dimensions: 30 × 52 × 2.25 mm
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
More information can be found in the documents for download.
