Product code: GM-MLP31-W
Producer: Telit Cinterion
Product code: L30960N6960E100

Telit Cinterion MLP31-W

Product code: GM-MLP31-W
Producer: Telit Cinterion
Product code: L30960N6960E100

Telit Cinterion MLP31-W

Cinterion MLP31-W is a wireless module with support for LTE Cat.16 connectivity, which offers transmission speeds of up to 1 Gbps.

196.02incl. VAT (21%) / pc

excl. VAT 162.00 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

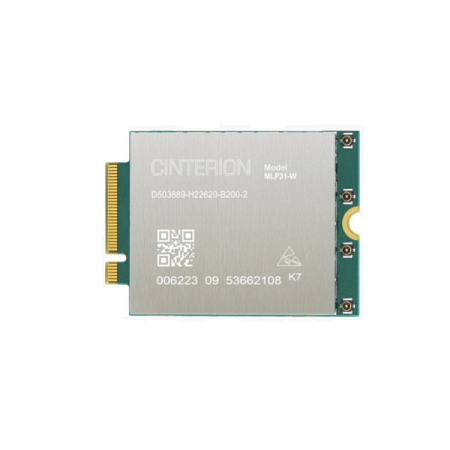

Telit Cinterion MLP31-W (in M.2 design)

Cinterion MLP31-W (in M.2 design) is a wireless module with support for LTE Cat.16 connectivity, which offers transmission speeds of up to 1 Gbps. The module is therefore extra suitable for the most demanding applications that require very high transfer rates and flexibility. In addition to* LTE technology*, the module also offers connection backup in the form of 3G technology.

The advantage of the module also includes the extended temperature range, which makes it ideal for use in industry. Communication is ensured using the PCI express M.2 interface. USB 3.0 communication is also supported. Among other things, the MLA31-W also supports GNSS technology or the possibility of using Dual SIM. The module also supports the form of 4x4 MIMO communication, which significantly increases the throughput and capacity of the entire network.

eSIM integrated in platform modules during manufacturing strengthens security, authenticates devices, encrypts data and securely manages connections to cellular networks.

Key Features:

• LTE Category 16 Multi-mode with 3G fallback
• Worldwide coverage on a single SKU, LAA support
• Private networks critical communication ready – CBRS, Firstnet support
• Extended temperature range for Industrial applications: -40 to +85°C
• PCI express M.2 Module
• 4x4 MIMO (4 antenna interfaces), configurable to 2x2 MIMO Operation
• Integrated GNSS (GPS/GLONASS/Beidou/Galileo)
• Dual SIM interface with SIM detect and optional eSIM onboard
• USB3.0 interface
• Driver support for Windows 10, Linux and Android
• Global approvals



Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Technical parameters can be found in the attached datasheet.

Parameters

Connector M.2 Operating temperature -40 ~ +85  °C
Dimensions 42 x 30 x 2.3  mm Technology UMTS , 5G , GNSS , LTE
Certification CE/RED , FCC , GCF , PTCRB , REACH , JATE/TELEC , ISED , RCM , UKCA , AT&T , Firstnet GNSS GPS , Glonass , Beidou , Galileo
Communication interface USB 3.0 LTE Band 1  MHz , 2  MHz , 3  MHz , 4  MHz , 5  MHz , 7  MHz , 8  MHz , 12  MHz , 13  MHz , 14  MHz , 17  MHz , 18  MHz , 19  MHz , 20  MHz , 25  MHz , 26  MHz , 28  MHz , 29  MHz , 30  MHz , 32  MHz , 66  MHz
LTE Speed 1000/150  Mbps Power supply 3.1 – 4.4
Number of SIM cards 2x (1x eSIM) Exension eSIM , DSSS , LAA , Firstnet , CBRS
UMTS band 1  MHz , 2  MHz , 4  MHz , 5  MHz , 6  MHz , 8  MHz , 19  MHz UMTS speed 42/11  kbps
Drivers Linux , Android. Windows 10 , Windows 11
