Product code: GM-PLAS9-W
Producer: Telit Cinterion
Product code: L30960-N5110-B100

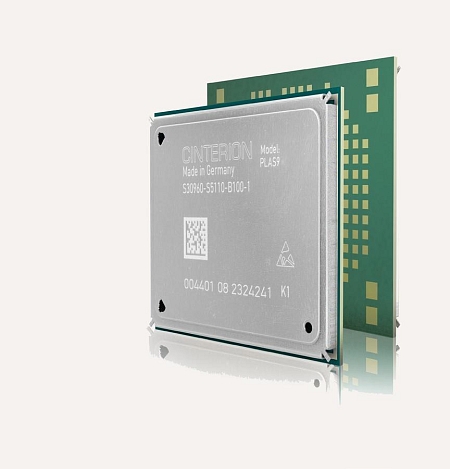

Telit Cinterion PLAS9-W

Product code: GM-PLAS9-W
Producer: Telit Cinterion
Product code: L30960-N5110-B100

Telit Cinterion PLAS9-W

Cinterion PLAS9-W wireless module is built for demanding, high performance IoT applications delivering LTE advanced connectivity under extreme conditions.

121.00incl. VAT (21%) / pc

excl. VAT 100.00 € / pc

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Telit Cinterion PLAS9-W wireless module


Telit Cinterion (Thales Gemalto) PLAS9 wireless module is built for demanding, high performance IoT applications delivering LTE advanced connectivity under extreme conditions. With Cat. 6* LTE technology*, the PLAS9 enables sizzling data speeds of 300 Mbit/s download and 50 Mbit/s uplink plus seamless fallback to 3G and 2G networks. Providing reliable coverage in RF noisy urban areas as well as locations where 4G is still developing, it is an ideal solution for industrial routers and gateways, digital signage, industrial mobile computers and tablets.

Key Features:

• PLAS9-W: Hendeka-Band LTE-Advanced FDD: 700MHz (B28A, B28B), 800 MHz (B20), 850 MHz (B5, B18,B19, B26), 900 MHz (B8), 1800 MHz    (B3), 2100 MHz(B1), 2600 MHz (B7)
   Quad-Band LTE-Advanced TDD:1900 MHz (B39), 2300 MHz (B40), 2500 MHz (B41),2600 MHz (B38)
• Certifications: RoHS, RED and REACH, EuP support
• Control via AT commands (Hayes, TS 27.007, TS 27.005)
• Firmware update via USB
• Supply voltage range 3.3 - 4.2 V
• Dimensions: 40 x 32 x 2.8 mm
• Operating temperature range: -40 °C to +95 °C

More information can be found in the attached datasheet.

Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.

Parameters

Dimensions 40 x 32 x 2.8  mm Power supply 3.3 – 4.2 V  V
Cinterion platform Industrial

121.00incl. VAT (21%) / pc

excl. VAT 100.00 € / pc
