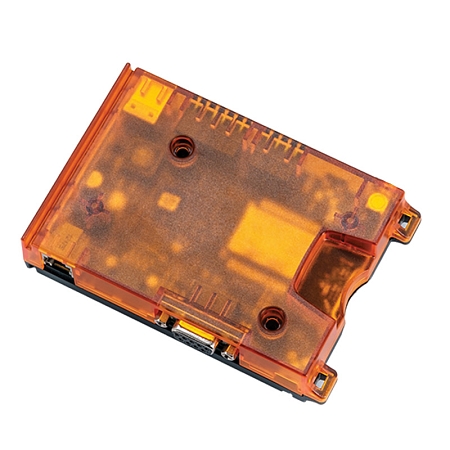

Gateway Telit Cinterion SGL81-W LAN
Gateway Telit Cinterion SGL81-W LAN is an IoT industrial gateway designed for use in a wide range of industrial applications that require reliable and secure connectivity. Gateway SGL81 enables Internet connection via LTE Cat.4 networks.
It supports RS232 and LAN interface and the possibility of development through Cinterion SDK ThreadX. Thanks to its backup connection to 3G/2G networks, it is a flexible solution for global connectivity. It has a driver for Windows 10/11 Linux distributions, an optional eSIM as well as an identity for easy registration in IoT public clouds.
Key features of the Telit Cinterion SGL81-W LAN include robust housing and high resistance to operating conditions such as high temperatures -30 °C to +75 °C, vibration and dust, as well as support for various security features, including data encryption and protection against unauthorized access.
The plug-n-play SGL81 offers efficient LTE connectivity with data download speeds of up to 150 Mbps. The SGL81-W LAN industrial gateway is ideal for remote maintenance and control of IoT devices, production process monitoring, agriculture and many other applications.
Key Features:
• LTE Cat.4
FDD-LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
TD-LTE Bands: 38, 40, 41
UMTS Bands (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19
Quad Band GSM bands: 850, 900, 1800, 1900 MHz
• Transmission speeds LTE Cat.4 DL: max. 150 Mbps, UL: max. 50 Mbps
• SIM Application Toolkit with BIP
• Control via standardized commands (Hayes, TS 27.007 and 27.005) and Thales AT commands
• Embedded IPv4 and IPv6 TCP/IP stack access via AT command and transparent TCP/UDP services
• Internet services: TCP server/client, UDP client, DNS, SMTP, Ping, HTTP client, FTP client, MQTT client
• Secure connection with TLS/DTLS
• Supply voltage range: 8 - 57 V
• IoT suite incremental firmware update over the air
• Dimensions: 113.8 × 75.3 × 25.3 mm (without connectors)
• Operating temperature: -30 °C to +75 °C
• Weight: 130 g
Telit company merged with Thales Gemalto, thereby created a major global player. The newly formed Telit Cinterion group is a major manufacturer of Cinterion® wireless modules and a leader in digital security and encryption in chip manufacturing. SECTRON is an European authorized distributor of this Telit Cinterion division.
Technical parameters can be found in the attached datasheet.
