Teltonika PR1KC640 - 5G Combined MIMO Antenna
Band Support
The 5G combo antenna is designed for demanding mobile and industrial applications where maximum connectivity in a single device is key. It supports the latest 5G and 4G (LTE) networks for fast and stable data transmission.
This antenna combines multiple technologies in one robust housing, integrating 5G MIMO for high-speed mobile connectivity, dual-band Wi-Fi (2.4 GHz and 5 GHz) with MIMO support, and a system for precise GNSS positioning compatible with GPS, GLONASS, Galileo, and BeiDou networks.
Compatibility with Teltonika Devices
This makes it an ideal solution for industrial routers that will fully exploit the potential of 5G connectivity and dual Wi-Fi, such as:
Antenna equipment

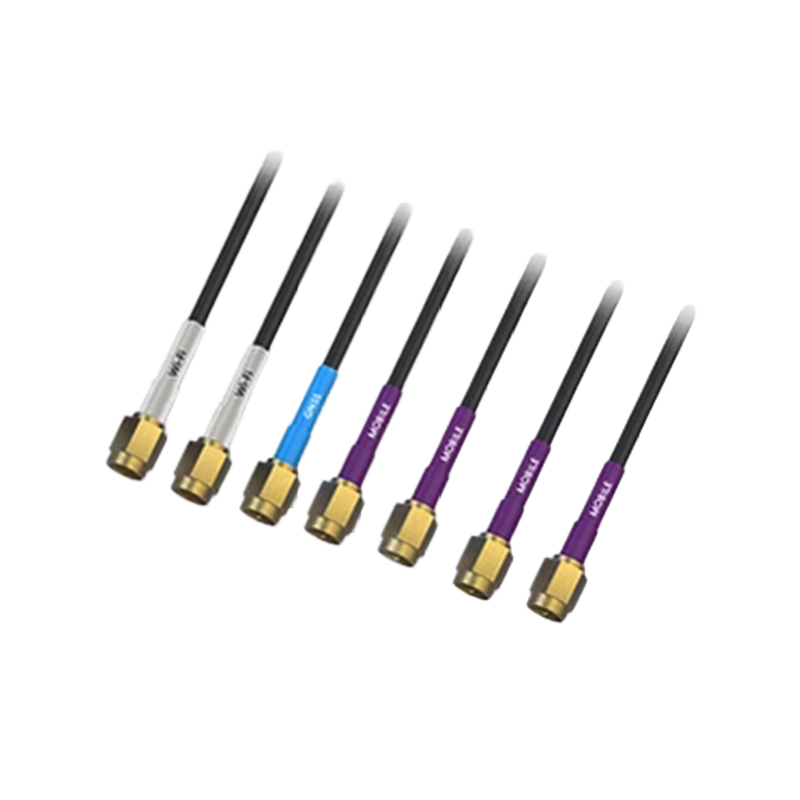

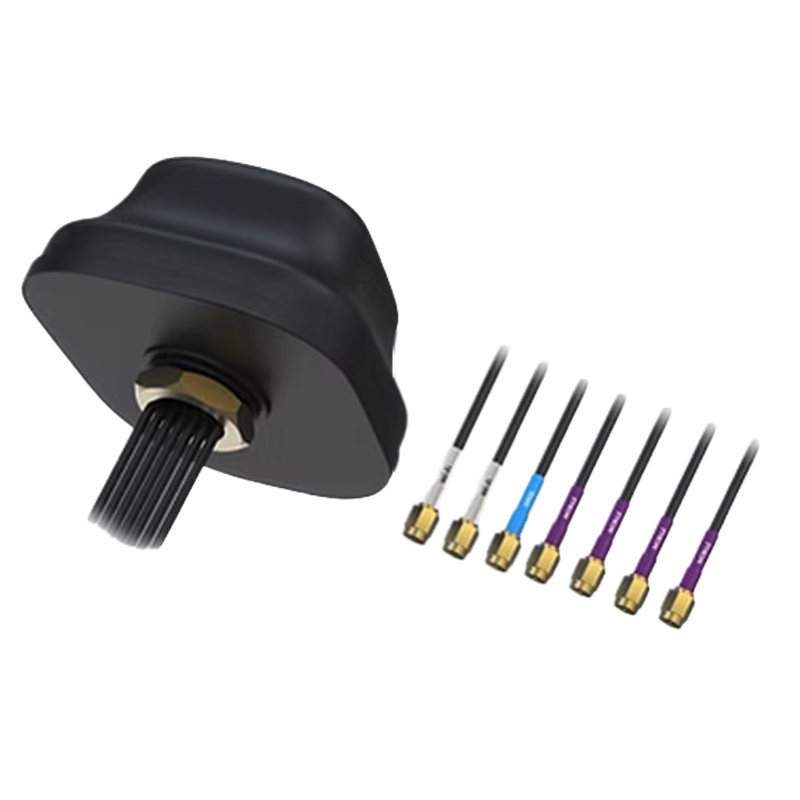

The antenna for industrial routers is equipped with 3 m LMR100 cables, which are terminated with standard SMA male connectors (for mobile network and GNSS) and RP-SMA male (for Wi-Fi).
The integrated GNSS module also provides accurate position information.
Resistance in extreme conditions and wide temperature range

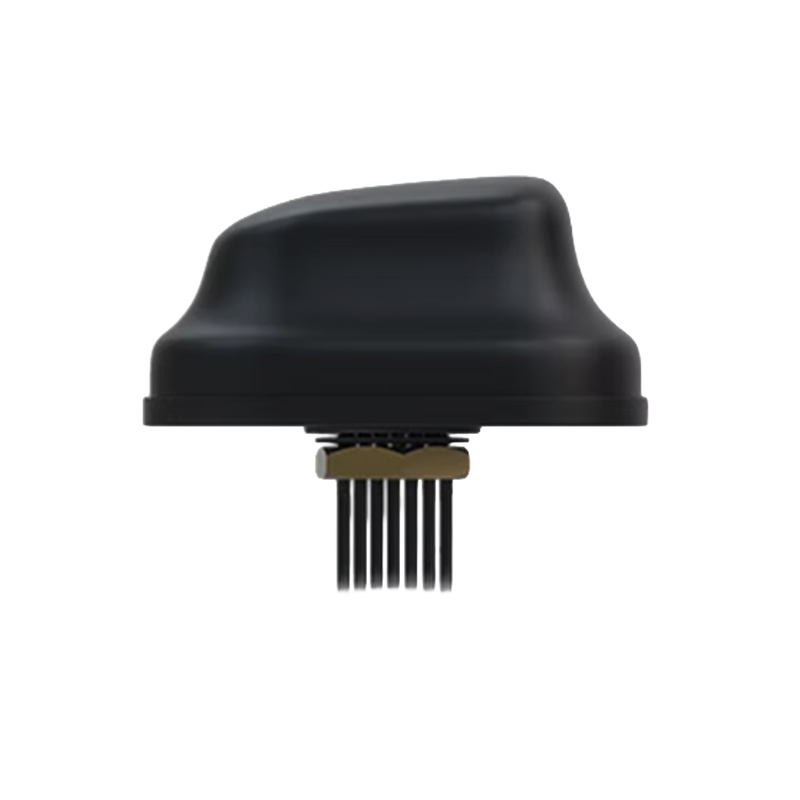

The durable design, optimized gain and IP67 protection ensure reliable operation even in environments with weaker signals and in demanding outdoor conditions.
A wide operating temperature range from -40 °C to +85 °C guarantees a long service life even in demanding industrial environments.
Technical parameters:
- Mobile part: 4× 5G (MIMO) – SMA Male connector
- Wi-Fi part: 2× Dual-Band Wi-Fi (MIMO) – RP-SMA Male connector
- GNSS part: 1× GPS/GLONASS/Galileo/BeiDou – SMA Male connector
- Frequency range 5G: 617 - 960/ 1710 - 2690/ 2900 - 4200 MHz
- Frequency range WiFi: 2400 - 2483.5/ 4900 - 5925 MHz
- Mounting method: Screw (surface/roof)
- IP rating: IP67
More technical parameters can be found in the attached datasheet.
