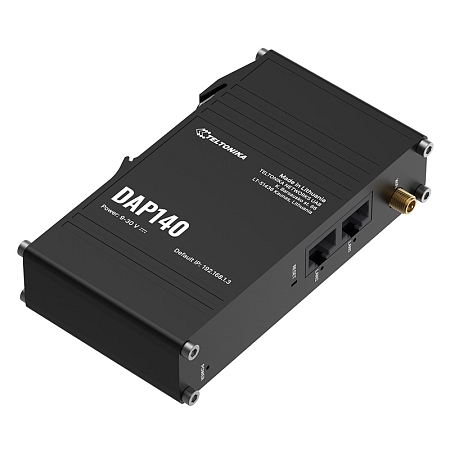

WiFi Access Point Teltonika DAP140
The WiFi Access Point DAP140 is an industrial access point (AP) designed by Teltonika Networks for reliable Wi-Fi coverage extension and performance enhancement in demanding environments.
Access Point Technology
It offers Wi-Fi 4 technology with support for Wi-Fi mesh and fast roaming, ensuring smooth and stable connectivity. The Wi-Fi mesh network consists of several interconnected devices that together create a unified wireless network across the entire covered area.
The WiFi Access Point is powered by passive PoE, which simplifies installation and reduces the need for separate power cables. Passive PoE is a simple power method that uses an Ethernet cable to transmit both data and electrical power. Plug-and-play functionality ensures simple installation and configuration.
Performance and Usage
This access point is equipped with two RJ45 ports (2 x 10/100) and is powered through a 3-pin power connector. The robust aluminum housing and integrated DIN rail mount ensure easy installation and long service life even in harsh conditions. With a capacity of up to 50 simultaneous connections, it is an ideal choice for environments requiring continuous connectivity, such as manufacturing halls, warehouses, or logistics centers where a large number of devices need to be connected simultaneously.
Remote Management RMS and Compatibility
The Teltonika DAP140 Access Point is compatible with the Teltonika Remote Management System (RMS), which allows for remote management and monitoring of all Teltonika network devices. The system enables configuration changes and collection of status information for individual devices, even if the devices do not have public IP addresses.
Try RMS for free by clicking on this link and register your free 30-day demo account at: https://rms.teltonika.lt/
We recommend using the detailed manual and configuration documents; official materials can be found here.
Key Features:
• 1 x RP-SMA antenna for Wi-Fi
• WiFi IEEE 802.11b/g/n (Wi-Fi 4)
• 2 x RJ45 ports, 10/100 Mbps
• Passive PoE power: 9 - 30V
• RAM 128 MB
• CPU 580 MHz
• Operating system RutOS
• Operating temperature: -40 °C to 75 °C
• Protection rating: IP30
• Dimensions: 113.10 x 25 x 68.6 mm
• Weight: 149.2 g
Standard Package Contains:
• Teltonika DAP142 Access Point
• 1 × WiFi antenna (magnetic, RP-SMA male)
• 3-pin power connector
• QSG (Quick Start Guide)
More information can be found in the attached datasheet.
