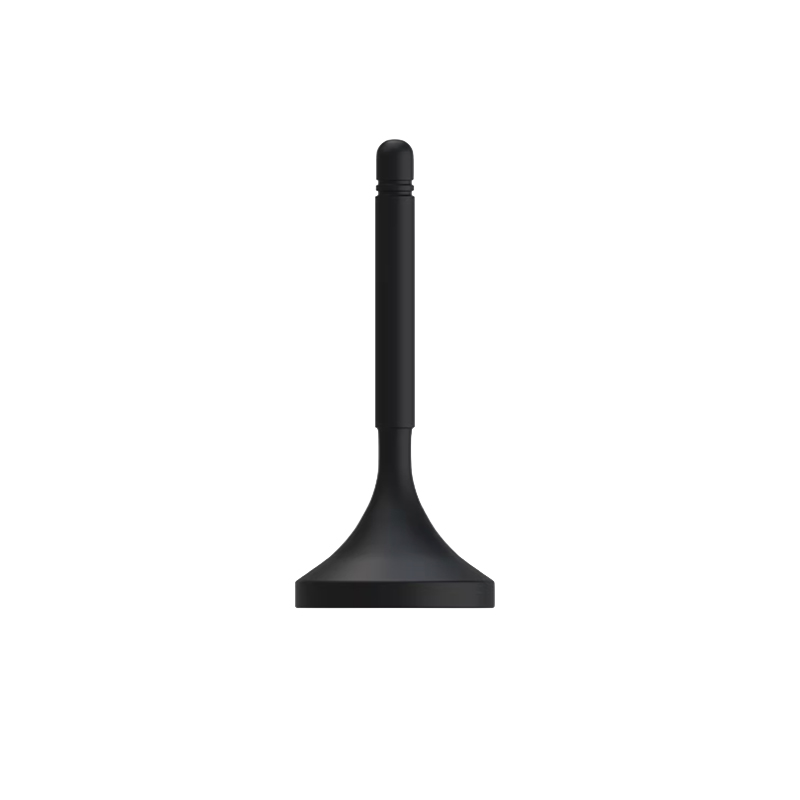

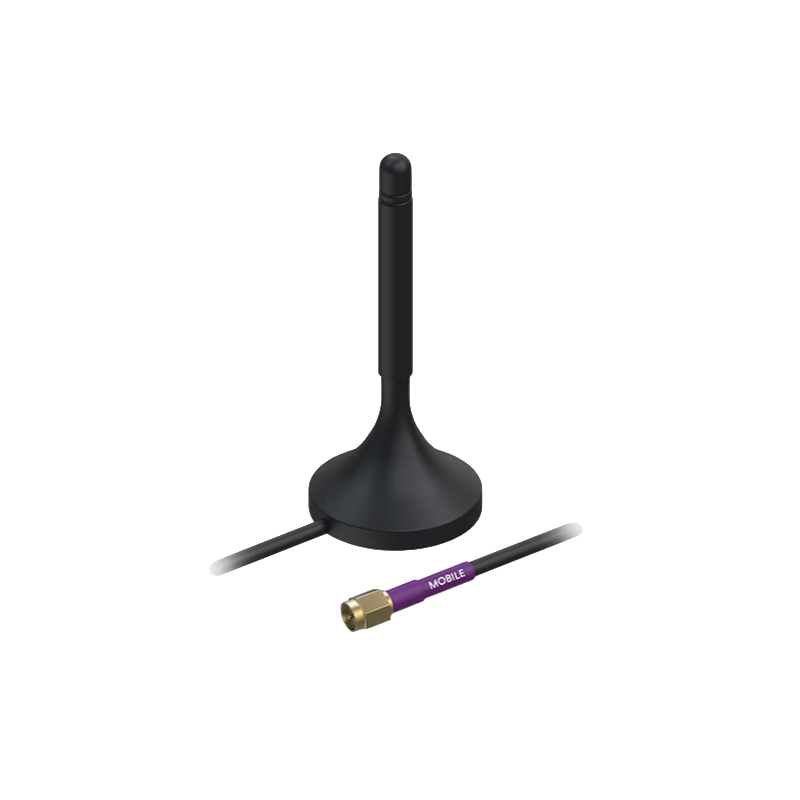

Teltonika LTE/GSM Antenna, Magnetic
This omnidirectional magnetic antenna is designed to receive signals in 4G/LTE and GSM networks. The antenna operates in the 698–960 / 1710–2690 MHz bands. It is the ideal solution for Teltonika industrial routers and gateways.
Thanks to its strong magnetic base, the antenna can be easily and securely attached to any metal surface (e.g., a control panel enclosure or a vehicle body). This is particularly important in situations where the router is located inside a metal enclosure that blocks the signal. By mounting this antenna on the exterior, you will significantly improve connection stability and data transfer speeds.

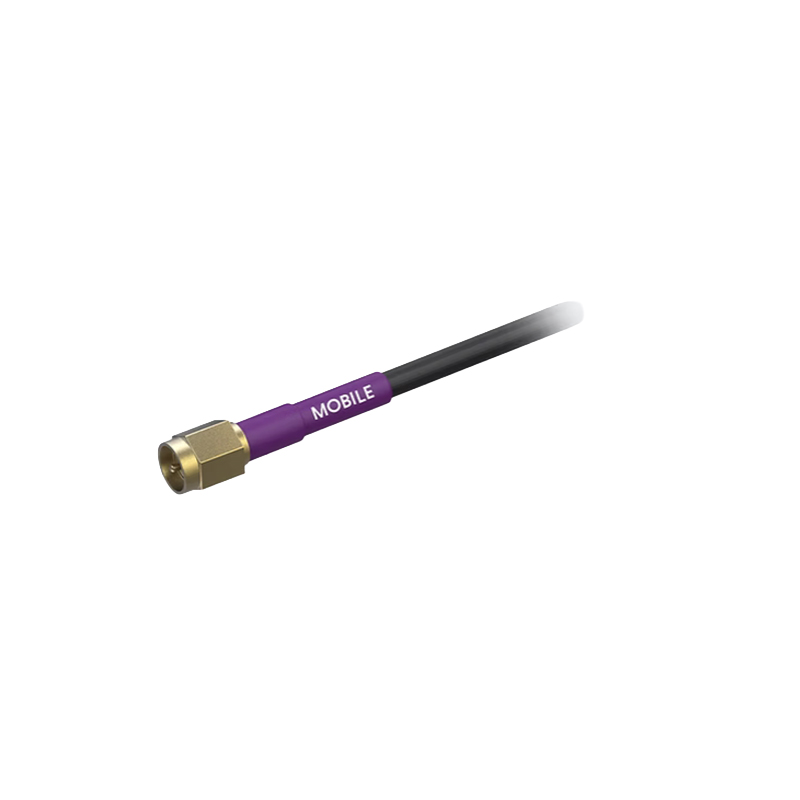

The LTE antenna is equipped with a high-quality 3-meter RG174 cable terminated with an SMA connector.
It is fully compatible with the following router series:
Its robust construction and wide temperature range of -40 °C to +85 °C ensure a long service life even in demanding industrial environments.
Technical specifications:
- Technology: Mobile (4G/LTE/GSM)
- Frequency range: 698–960 / 1710–2690 MHz
- Gain: 3 dBi
- VSWR: < 3.0
- Polarization: Linear
- Impedance: 50 Ω
- Connector: SMA male
- Cable: RG174, length 3 m
- Mounting method: Magnetic
- Protection rating: IP50
For more technical specifications, please refer to the attached datasheet.
