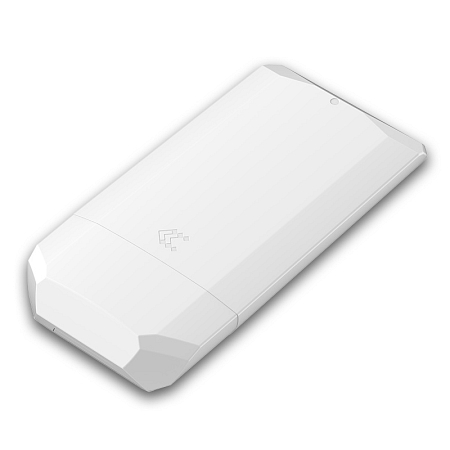

Outdoor 4G router Teltonika OTD140
The Teltonika OTD140 outdoor router provides a reliable Internet connection even in extreme weather conditions. The 4G LTE router is equipped with a robust IP55 housing with a mounting bracket that ensures an easy attachment of the router. The LTE Cat 4 technology offers high data transfer speeds of up to 150 Mbit/s. The PoE+ router OTD140 also provides flexible connectivity thanks to the function of dual SIM with failover functionality. In addition, two PoE in/out (10/100 Mbit/s) Ethernet ports facilitate the installation and powering of connected devices without additional sources.
An important feature of the OTD140 is the support of the Teltonika Remote Management System (RMS), which enables a simple and comprehensive remote management, access and control options for both the outdoor router itself and the end devices connected to it. This PoE+ router runs on the RutOS system, which ensures its reliability and performance.
Overall, the Teltonika OTD140 outdoor router is optimal for IoT and M2M applications. It can be used, for example, in construction, agriculture and in camera and security systems, where it ensures a reliable and powerful Internet connection even in demanding conditions and extreme temperatures from -40°C to +75°C.
Try the RMS for free. By clicking on this link register your free-of-charge 30-day demo account!
LINK: https://rms.teltonika.lt/
You can read about an example of using the Teltonika OTD140 outdoor router in our article.
Key Features:
• 4G (LTE) – mobile speed up to 150 Mbps DL, 50 Mbps UL; 3G - 21 Mbps DL, 5.76 Mbps UL; 2G - 236.8 kbps DL, 236.8 kbps UL
• Dual SIM with automatic switching function in case of signal loss and other situations
• Sending and receiving SMS via HTTP POST/GET
• Network protocols: Support including TCP, UDP, IPv4/IPv6 and more
• Ethernet: 2 x 10/100 Mbps ports with Auto-MDI/MDIX
• IEEE 802.3af/at support for PoE input and output ports
• Support for various VPN types including OpenVPN, IPsec and WireGuard
• Management via WebUI or Teltonika Remote Management System (RMS)
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• Memory: 128 MB RAM, 16 MB Flash memory
• Dimensions: 110 × 49.30 × 235 mm
Standard package contains:
• Router Teltonika OTD140
• Router Holder
• QSG (Quick Start Guide)
Introduction video
We recommend using the complete user manual and documents for configuration, official materials can be found here.
Technical parameters can be found in the attached datasheet.
