Product code: GM-TSW101-A
EAN: 4779051840113

Teltonika Switch TSW101 PoE Altenative A

Product code: GM-TSW101-A
EAN: 4779051840113

Teltonika Switch TSW101 PoE Altenative A

61.71incl. VAT (21%) / pc

excl. VAT 51.00 € / pc

Temporarily unavailable
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

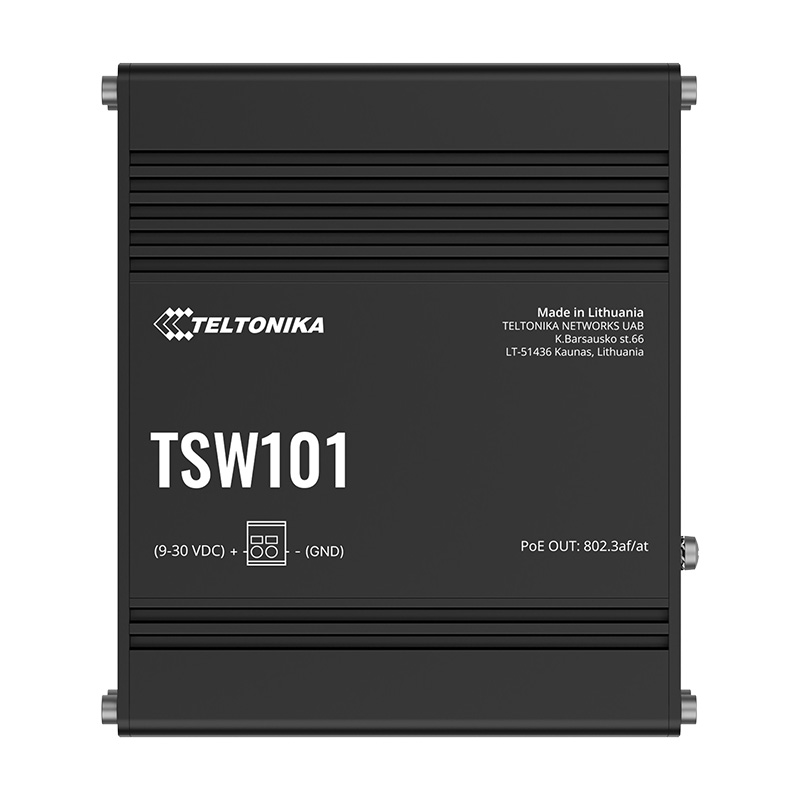

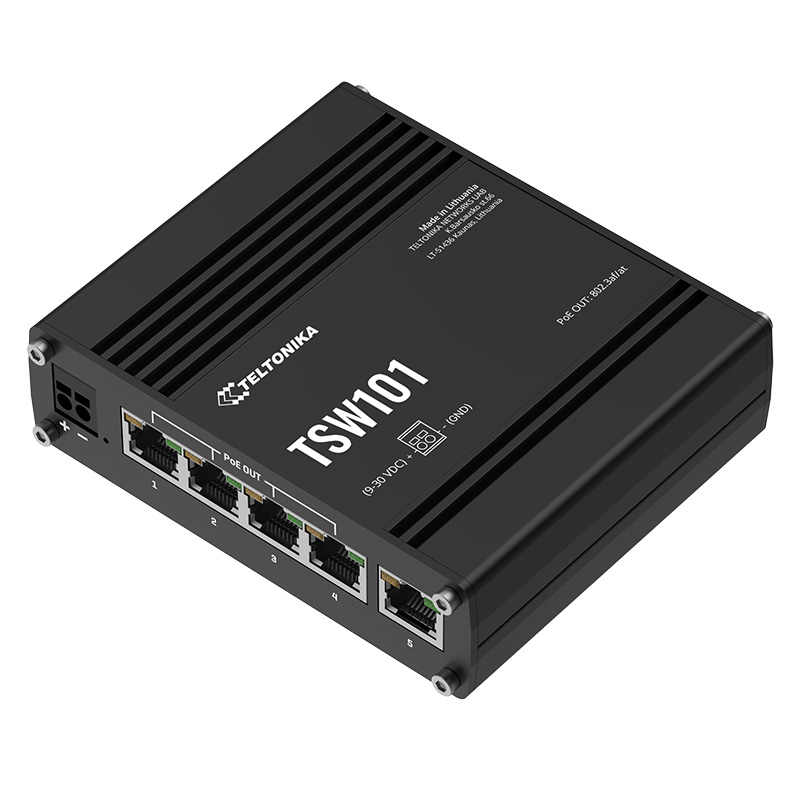

Teltonika Ethernet Switch TSW101 - PoE A

The Teltonika TSW101 is the first Ethetnet PoE-A switch designed for automotive use. The SwitchTSW101 features plug-and-play technology that allows quick setup without the need for additional configuration and five Ethernet ports with speeds up to 1000 Mbps. With full support for IEEE802.3 standards (802.3i, 802.3u, 802.3ab, 802.3x, 802.3az), this switch ensures a reliable connection to the Internet while providing power to other devices.

The Teltonika TSW101 Ethernet switch PoE  serves as a power supply (PSE), enabling power centralization - providing up to 30 watts per port and maximum output power of 60 watts.

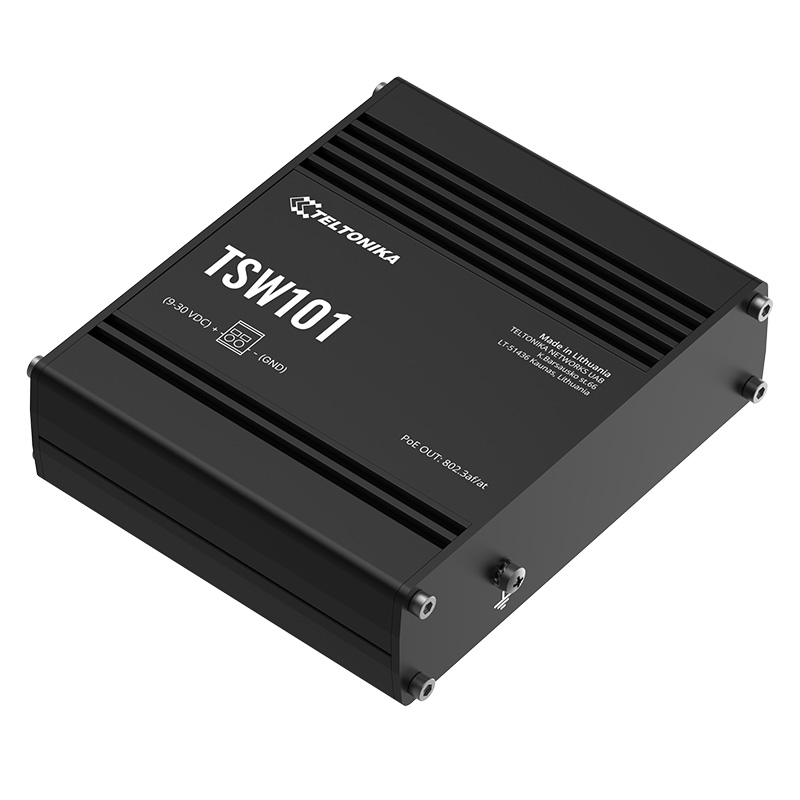

The TSW101 has durable aluminium housing and robust construction, making it resistant to vibration and temperature changes.

Example of using the Teltonika TSW101 switch

Mobile stores are a good example, where two Teltonika products are used -  Teltonika TSW101 automotive switch and Teltonika RUT360 mobile router. While the RUT360 mobile router provides robust network connectivity. The TSW101 switch provides uninterrupted power and a stable network connection to all devices in the vehicle, such as CCTV cameras and POS terminals, while keeping them powered by PoE+. Customers can thus make an easy contactless payment via POS terminals. Devices such as digital screens can also display real-time menu information.

Key Features:

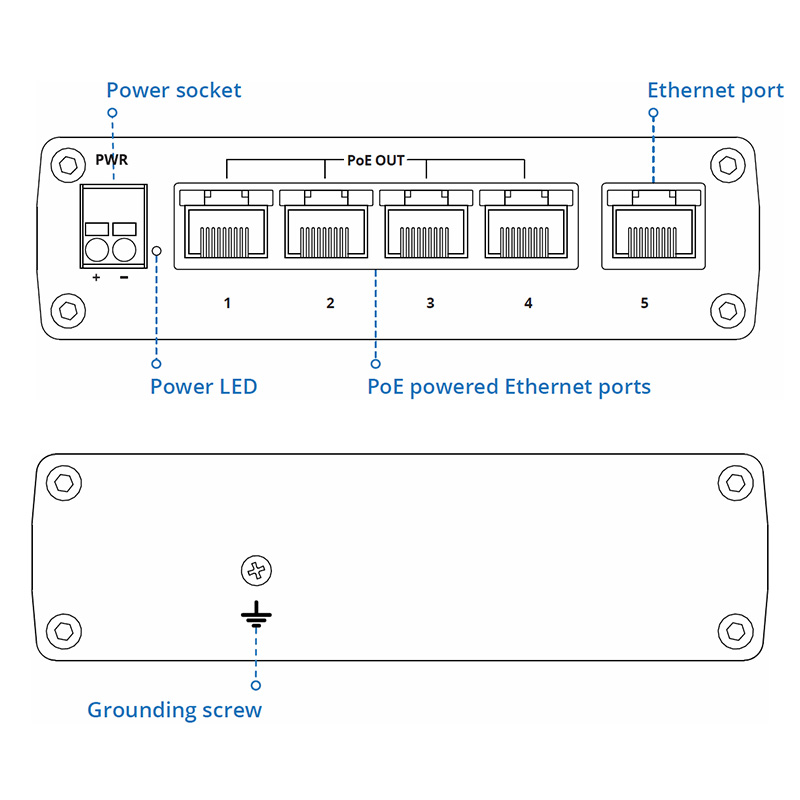

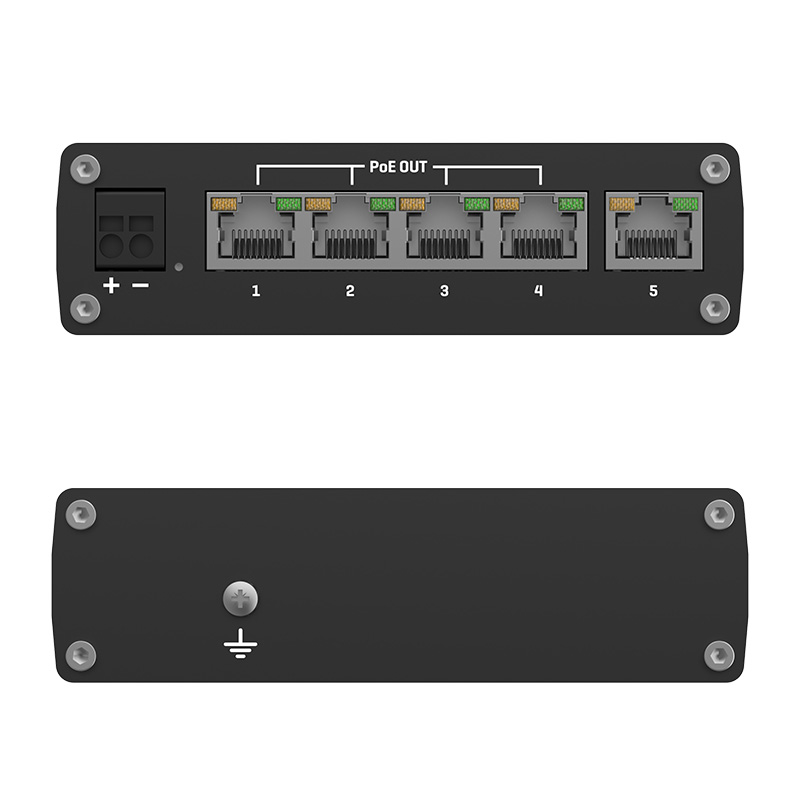

• 4 × PoE+ ports with IEEE802.3af and IEEE802.3at support
• 5 x Gigabit Ethernet with speeds up to 1 000 Mb/s
• Plug-n-Play, no additional configuration required
• Power consumption Idle: 0.8 W / Max: 2.2 W / PoE Max: 106 W
• Status LEDs: 1 × Power LED, 10 × LAN status LEDs
• Degree of protection: IP30
• Operating temperature: -40 °C to 75 °C
• Durable aluminium housing

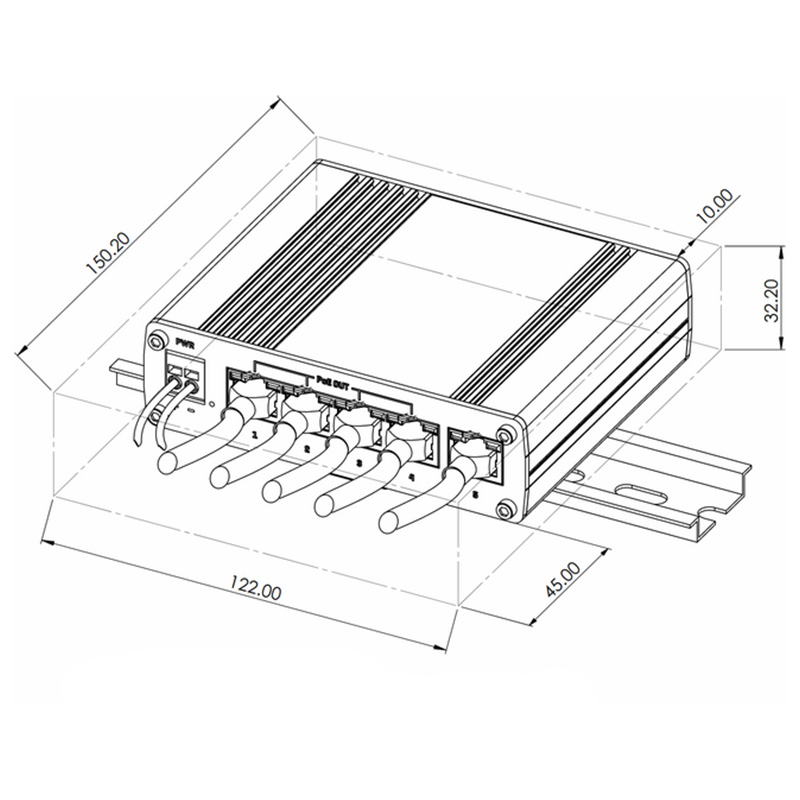

• Dimensions: 115 x 32 x 95 mm
• Weight: 384 g

Package contains:

Switch TSW101
• QSG (Quick Guide)

We recommend using the detailed manual and documentation for configuration, official materials can be found here.

More information can be found in the attached datasheet and quick manual.

Quick Start Guide Video

The Quick Start Guide video guides you step-by-step through setting up the switch.



Parameters

Operating temperature -40 ~ +75  °C Dimensions 115 x 32 x 95  mm
Technology Ethernet Weight 384  g
Certification RoHS , FCC , IC , REACH , RCM , CB , E-Mark , UKCA , CE/RED , EAC , ANRT , GITEKI Ingress protection (IP) IP30
Communication interface Ethernet Assembly DIN
Power supply 9 – 30  V
