Product code: GM-TSW114
EAN: 4779051840298
Product code: TSW11400000

Teltonika Switch TSW114

Product code: GM-TSW114
EAN: 4779051840298
Product code: TSW11400000

Teltonika Switch TSW114

The Teltonika TSW114 is a cost-effective, simple industrial Plug-n-play switch with no further configuration possible.

37.51incl. VAT (21%) / pc

excl. VAT 31.00 € / pc

In stock
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

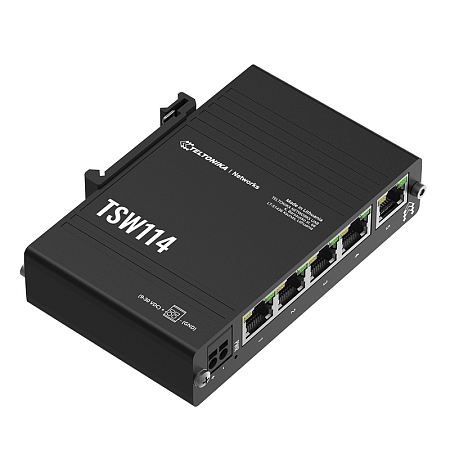

Switch Teltonika TSW114

The Teltonika TSW114 is a cost-effective, simple industrial Plug-n-play switch with no further configuration possible.

The Teltonika TSW114 unmanaged switch is equipped with 5 Gigabit Ethernet ports with a speed of up to 1000 Mb/s, which guarantees stable and reliable connectivity with other devices. It has a wide range of supply voltages 9-30 V with polarity reversal and overvoltage/transition protection.

The compact size, front ports and integrated DIN rail mount make the Teltonika TSW114 switch easy to install in many industrial environments and control cabinets.

Thanks to its robust anodized aluminium housing, it withstands the vibrations and high operating temperatures often found in industrial environments.

Key Features:

• Integrated DIN rail mount, front ports
• Gigabit Ethernet: 5× gigabit Ethernet with a speed of up to 1000 Mb/s
A wide operating temperature range: from -40 °C to 75 °C
• Robust housing made of anodized aluminium
• Plug-n-play: no further configuration is possible
• Wide range of supported supply voltages: from 9-30 V
• Dimensions: 13.1 × 27.4 × 80.5 mm
• Weight: 174 g

Package contains:

Switch Teltonika TSW114
• QSG (Quick Guide)

We recommend using the detailed manual and documentation for configuration, official materials can be found here.

More information can be found in the attached datasheet.

Quick Start Guide Video

The Quick Start Guide video guides you step-by-step through setting up the switch.


Parameters

Operating temperature -40 ~ +75  °C Dimensions 113.1 x 27.4 x 80.5  mm
Weight 174  g Certification REACH , RoHS , WEEE , UKCA , FCC , IC , CB , RCM , CE
Ingress protection (IP) IP30 Communication interface 5x RJ45
Power supply 9 – 30

37.51incl. VAT (21%) / pc

excl. VAT 31.00 € / pc
