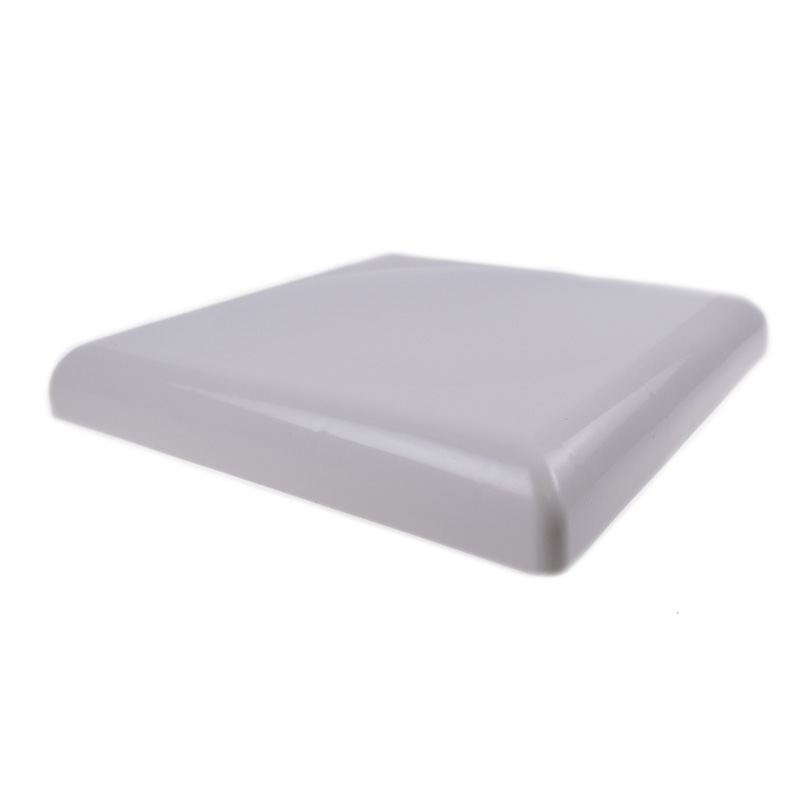

ThingMagic Antenna RFID 12" Monostatic Wideband (RTNC)

Product code: TM-ANT-WB-12 /Manufacturer: JADAK A Novanta Company /Produktový kód: ANT-WB-12-2043

tm-ant-wb-6-rfid-antena-01 tm-ant-wb-6-rfid-antena-03 tm-ant-wb-6-rfid-antena-04 tm-ant-wb-6-rfid-antena-02 tm-ant-wb-6-rfid-antena-05

For verification price, please contact us sales@sectron.cz or call us. Domestic Business: +420 556 621 030, International Business.: +420 556 621 020

Price on request

On request When do I get the item?

If the customer is not registered for VAT, the rate according to his country of residence will be added.
guarantee 12 months
Subject*
Name and surname*
E-mail*
Inquiry*
By submitting the form, you agree to the privacy policy.
Your name and surname*
E-mail*
Send e-mail*
Message*
By submitting the form, you agree to the privacy policy.

Description

Antenna RFID 12" ThingMagic  Monostatic Wideband (RTNC)

The high-performance RFID antenna with a gain of 9.5 dBi operates in the 865-956 MHz band. The characteristic impedance is 50 Ω. The antenna is equipped with an TNC connector. Thanks to the degree of protection IP67, it is suitable for outdoor installation.

Dimensions: 30.5 x 30.5 x 2.5 cm

Specifications connector TNC:

TNC coaxial connectors are characterized by high reliability and mechanical stability. The characteristic impedance of the connector is 50 Ohm and the working frequency range up to 11 GHz. TNC connectors are used, for example, to connect wireless WLAN devices, test equipment and GSM / GPS / Wi-Fi antennas.

Technical parameters can be found in the attached datasheet.

Parameters

impendance: 50 Ohm Connector: TNC-RP(f-pin)
Execution: External Operational temperature: -40 °C - +60 °C
Dimensions: 30.5 x 30.5 x 2.5 mm Directivity: Directional
Protection rating: IP67 Technology : RFID / SigFox / LoRa
GAIN: 9.5 dBi TYPE OF ATTACHMENT: Screw Mount
