Product code: TM-M6E-MICRO-DEVKIT

ThingMagic Micro-LTE - Development Kit (North/South America, EU, IN, KR, PRC)

Product code: TM-M6E-MICRO-DEVKIT

ThingMagic Micro-LTE - Development Kit (North/South America, EU, IN, KR, PRC)

The 2-port Micro and Micro-LTE deliver the form factor, efficiency, RF power, and flexibility needed to embed UHF RFID in your best-in-class portable.

For verification price, please contact us sales@sectron.cz or on the phone +420 556 621 020.

Price on request

Temporarily unavailable
i
Temporarily unavailable Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

ThingMagic Micro-LTE - Development Kit

The 2-port Micro and Micro-LTE deliver the form factor, efficiency, RF power, and flexibility needed to embed UHF RFID in your best-in-class portable and hand held applications. The Micro reads 750 tags/second and the Micro-LTE is optimized for applications with small populations and reads 50 tags/second. The low power consumption of both modules fits battery operated applications and wider RF output range (-5 dBm to +30 dBm) is a key requirement for RFID enabled printers, tag commissioning stations, and point of sales readers. Edge connections allow the Micro and Micro-LTE to be soldered directly to a motherboard as a standard component. The on-board connectors allow the module to be mated to a motherboard.

Features:

• Multiprotocol support including EPCglobal Gen 2 (ISO 18000-6C) with DRM, ISO 18000-6B (optional) and IP-X (optional)
• Four 50 Ohm MMCX connectors supporting four monostatic antennas
• Separate read and write levels, command-adjustable from 5 dBm to 31.5 dBm (1.4W) with +/0.5 dBm accuracy above +15 dBm
• Support for full 860 to 960 MHz UHF RFID carrier frequency range to accommodate worldwide regulations
• Certifiable for operation in countries adopting FCC, ETSI, MIC (KR) and SRRC-MII (PRC) regulatory specifications
• TTL level asynchronous data interface supporting speeds up to 921.6 kbps
• USB 2.0 full speed device port (up to 12 Mbps)
• Operating temperature range of -40 °C to +60 °C
• Tag read rate of 750 tags/second using high-performance settings
• Maximum tag read distance of over 30 feet (9 m) with 6 dBi antenna
• 4 GPIO lines controlled through data interface

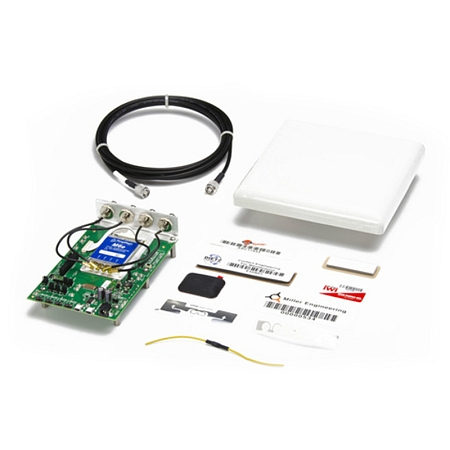

Package contains:

• Test chassis
• Cables
• Antenna
• Sample Tags
• Full schematics to help you design your own complementary components

More information can be found in the attached datasheet.
