Product code: AP-AGPS-TMM-5VS
Producer: Trimble
Product code: 66800-40

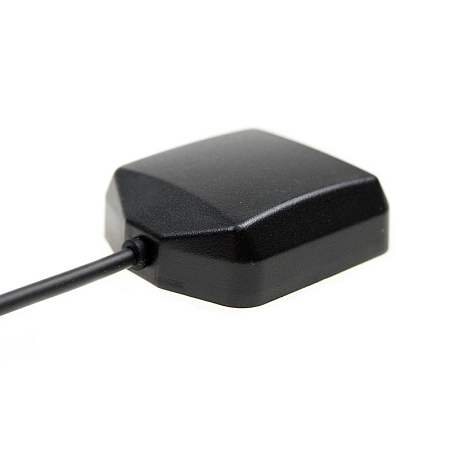

Trimble GPS Antenna Magnetic Mount, 5V, SMA(m), RG174/5m (66800-40)

Product code: AP-AGPS-TMM-5VS
Producer: Trimble
Product code: 66800-40

Trimble GPS Antenna Magnetic Mount, 5V, SMA(m), RG174/5m (66800-40)

TRIMBLE Omnidirectional antenna for GPS technology. The antenna operates in band 1545.72 MHz.

27.71incl. VAT (21%) / pc

excl. VAT 22.90 € / pc

In stock < 10 pc
i
- +
Add to compare

If the customer is not registered for VAT, the rate according to his country of residence will be added.

Detailed description

Trimble omnidirectional GPS antenna

Omnidirectional antenna for* GPS technology*. The antenna operates in band 1545.72 MHz. The antenna reaches up to 27 dBi gain when combined with an amplifier. The GPS antenna with a built-in magnet for placing on any metal substrate is ideal for example on the roof of the vehicle. It is suitable for the operation of navigation, tracking devices, electronic logbooks and other devices. The Trimble antenna can be used even in the harshest environments (-40 °C to +85 °C with high humidity). The antenna is supplied with a 5 m long RG174/U cable terminated with an SMA(m) connector.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. The connection and disconnection of the connectors is guaranteed for up to 500 cycles. Temperature range is -65 °C to +165 °C. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.n can be found in the attached datasheet.

More information can be found in the attached datasheet.

Parameters

Impedance 50  Ohm Cabel RG174/U
Connector SMA(m) Polarization R.H.C.P.
Execuion External Operating temperature -40 ~ +85  °C
Dimensions 37.4 x 34 x 12.9  mm Directivity Omnidirectional
Technology GPS Weight 25  g
Gain 27  dBi Type of attachment Magnetic

27.71incl. VAT (21%) / pc

excl. VAT 22.90 € / pc
